AMOSKAMAR 12V-24V Wireless Winch Remote Control Switch Set with Receiver Waterproof Universal for Jeep Truck ATVs Winches
About this product

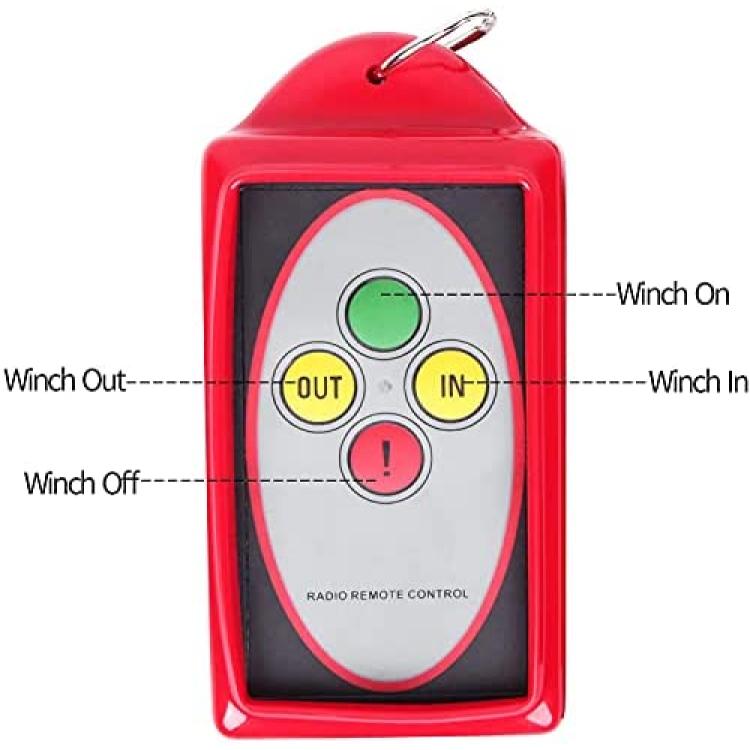

*Indicator light and ON/OFF switch are designed for easy and accurate winch operation.
*Product Size: Remote control receiver size: Approx. 45*60mm; Big radio remote control size: 126*65*38 mm; Size of remote control with keychain: Approx. 33*51mm.
*Connection Voltage: 12V-24V.
*Powered By: Big red remote is powered by the included 6F22 9V carbon-zinc battery; The remote control with keychain is powered by 12V 27A alkaline battery.
*Compatible with any Tuff Stuff or Recon Recovery winch as well as most Warn, Ramsey, Superwinch, Smittybilt, Gorilla, Bulldog and many other brands of self-recovery winches.
Description

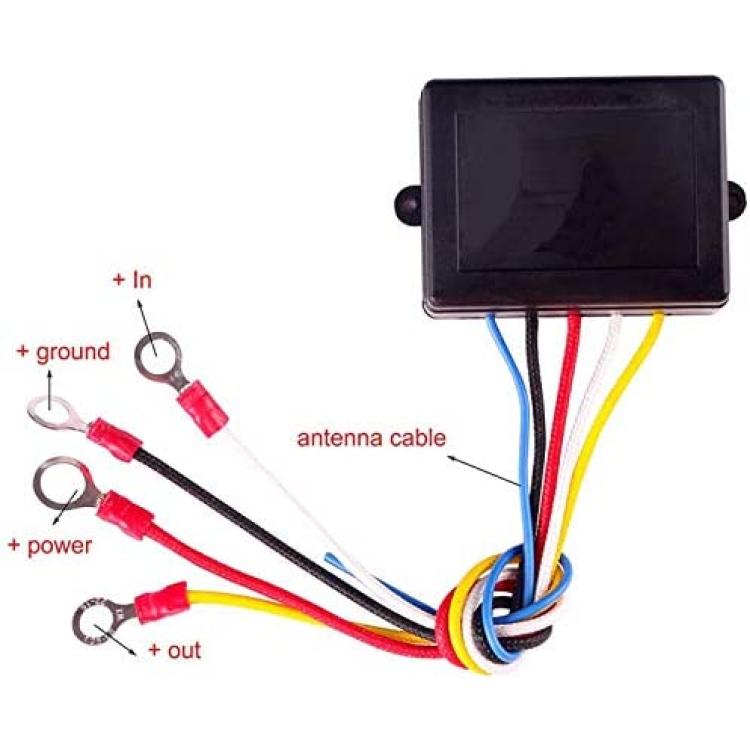

Wiring Method:
Black to ground.
Red to power.
Yellow to winch out and white to winch in.
Blue is the antenna cable you will need a winch solenoid to be able to hook up this.
Specifications:
Brand: AMOSKAMAR
Model: KLS-208/4C
Material: ABS
Battery Type: 1 * 6F22 9V 300mAh carbon-zinc battery(34g); 1 * 12V 27A 60mAh alkaline battery(7g)
Max. Remote Distance: 30m / 100ft
Delay Time of Remote Control: 0.2s
Item Weight: 227g / 8oz
Package Size: 13.6 * 10.7 * 5cm / 5.4 * 4.2 * 2inch
Package Weight: 270g / 9.5oz

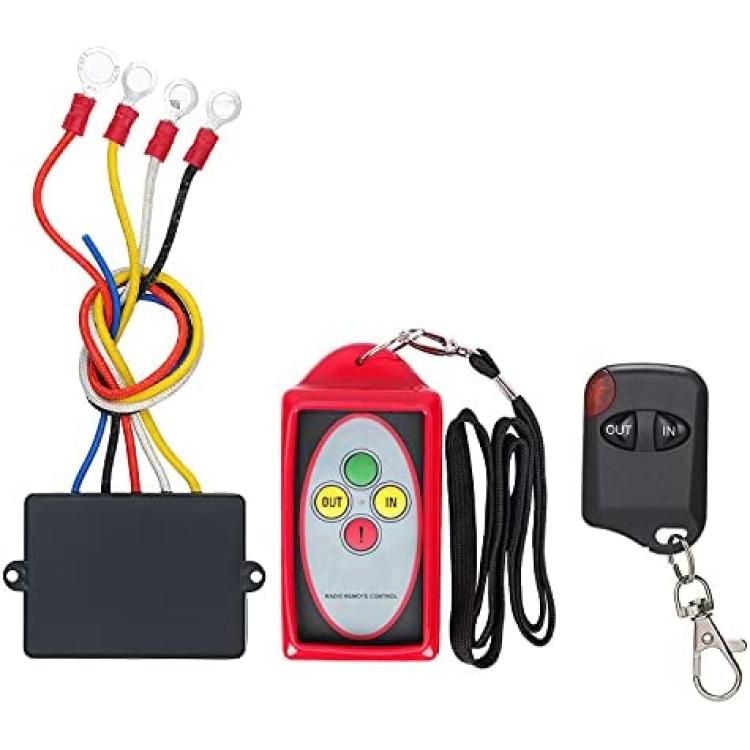

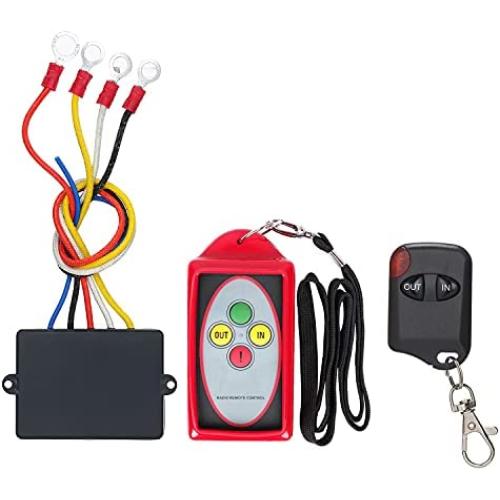

Packing List:
1 * Big radio remote control
1 * Remote control with keychain
1 * Remote control receiver
1 * Lanyard
1 * User manual (English)
Note:
This is a remote that works with a relay that reverses the voltage to the winch motor. If your winch has a built in relay, you would have to determine the correct solenoids to connect from the remote module. If your winch does not have a relay built in you would need to purchase a relay.
