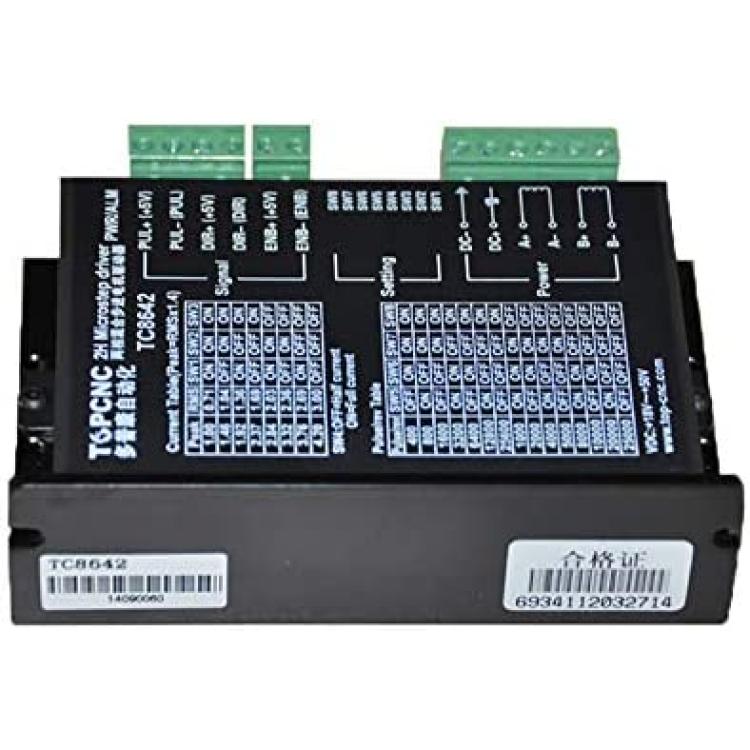

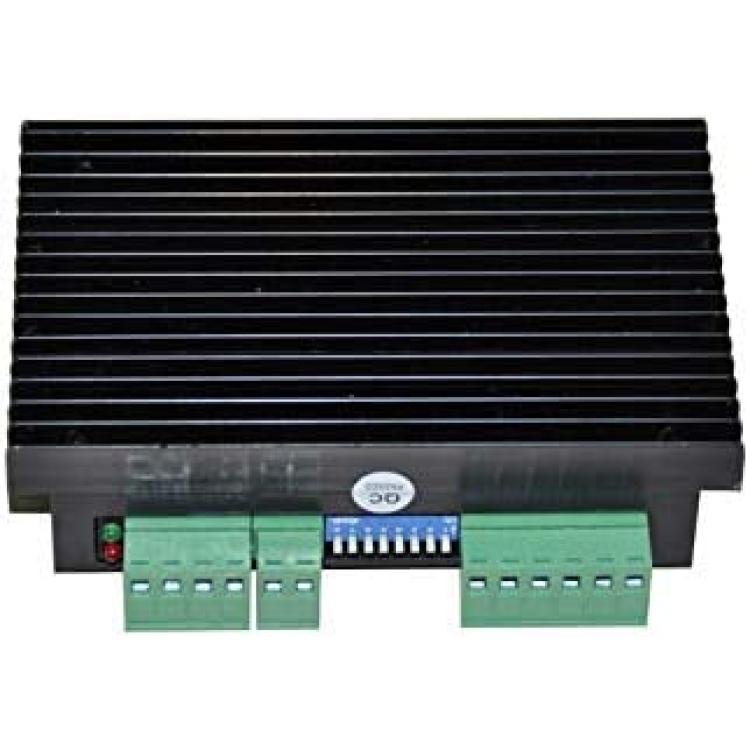

Huanyu Stepping Motor Driver TC8642 Two-phase Hybrid Stepper Driving Controller DC 18 V - 50V
Availability: Pre-Order, Inquiry Price
About this product
*【Scientific Design】Two phase sinusoidal current output which controlled by average current
*【Safety】Protection for over voltage, under voltage, over current and interphase short circuit
*【Multi-choices】Eight output current settings; sixteen subdivisions setting and automatic half current at low speed
*【High Efficiency and Flexibility】Rapid speed up capability; large torque at high speed; The input/output signal ports are isolated using photoelectric device; enable/disable capability
*【Installation Warnings】There should be a 20mm space around it, which can not be placed next to other heating equipment, to avoid dust, oil mist, corrosive gas, too high humidity and strong vibration.
Description
Huanyu
Huanyu mainly provides instruments and tools. We provide voltage customized services, specific requirements can be contacted by email, we will respond promptly.After your order is confirmed, the product usually takes 5-10 business days to arrive to your hand.
Application
It is widely used in engraving, CNC, packing, transmission machine.
Description
The power supply voltage for the two-phase hybrid stepper motor driver is DC 18V~50V. The two-phase hybrid stepper motor driver is suitable for driving a two-phase stepper with driving voltage between 24V and 50V, the current is less than 4.0A, and its outside diameter is about 42~86 mm.
Specifications:Â
Input voltage: DC 24 ~ 50V
The input current: less than 4A
Output current: 1.0A ~ 4.2A
Power consumption: 80W
Internal fuse: 6A
Working temperature: -10ºC ~ 45ºC
Storage temperature: -40ºC ~ 70ºC
Humidity requirement: not moisture in the surface
Do not use in explosive or dust ambient
Weight: 200g
Friendly Reminder
When purchase, please confirm the product is from our Huanyu Instrument, otherwise we can't ensure the quality and after-sale service.We will try our best to provide you the best product and service, welcome to buy our product.
