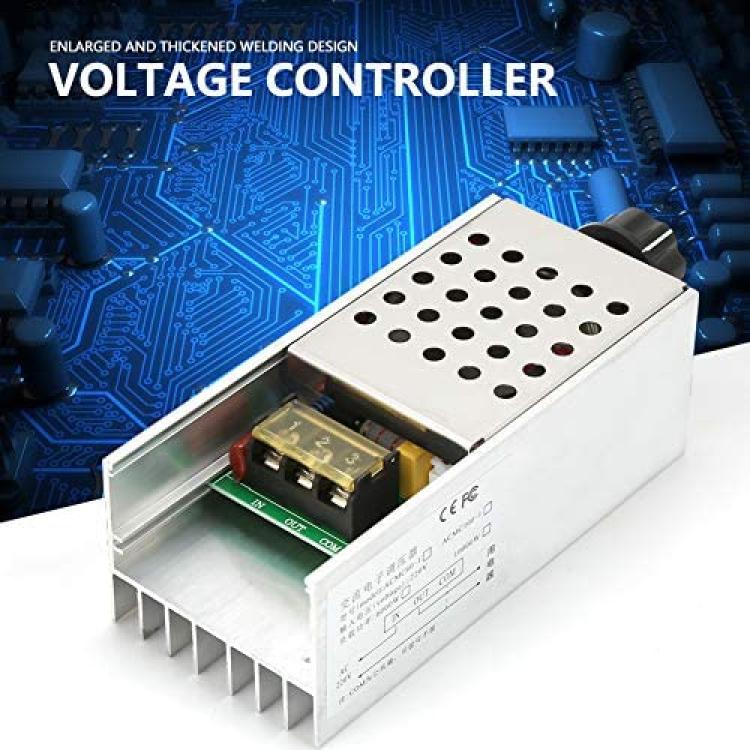

Voltage regulator, Speed Switch, 6000W Variable Speed Controller, for resistance load
About this product
*This is a easy-to use voltage regulator for controlling light brightness or speed.
*Designed with large heat sink for better heat dissipation.
*Widely used for resistance load such as heating wire, filament lamp and most(not all) single-phase AC motors.
*The voltage regulator could control light brightness, speed, temperature.
*Convenient to use, simple connection and rotate knob to control voltage.
Description
Feature:
This is a easy-to use voltage regulator for controlling light brightness or speed.

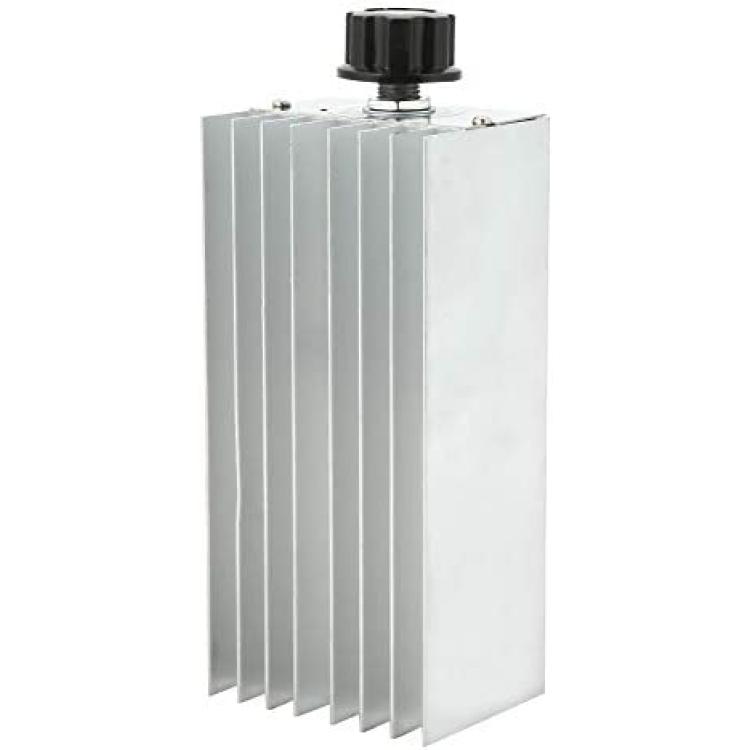

Designed with large heat sink for better heat dissipation.
Convenient to use, simple connection and rotate knob to control voltage. The voltage regulator could control light brightness, speed, temperature. Widely used for resistance load such as heating wire, filament lamp and most(not all) single-phase AC motors.
Specification:
SCR Model: BTA41600B
Max. Power: 6000W (max. power for resistive load. For long time use, please keep it in 3000W) Efficiency: >90%
Working Voltage: AC 220V
Adjusting Voltage: AC 0~220V (for resistive load, the voltage may not be 0V at first, you can turn it back to 0V)
Size: 130*60*47mm / 5.1*2.4*1.9in
Weight: 195g / 6.9oz (approx.)
Package list:
1 * Voltage Controller
Notice: Please connect to load first, then adjust voltage.
