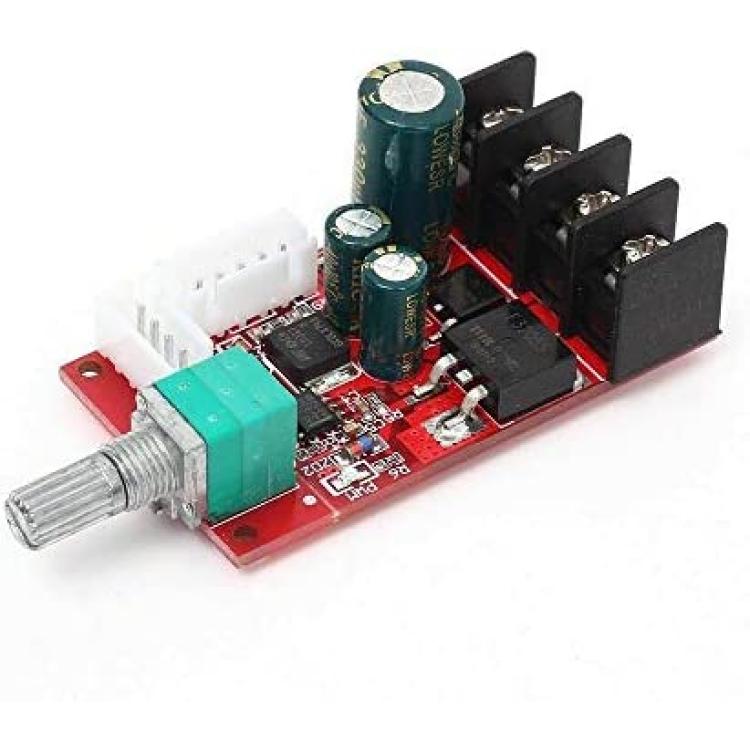

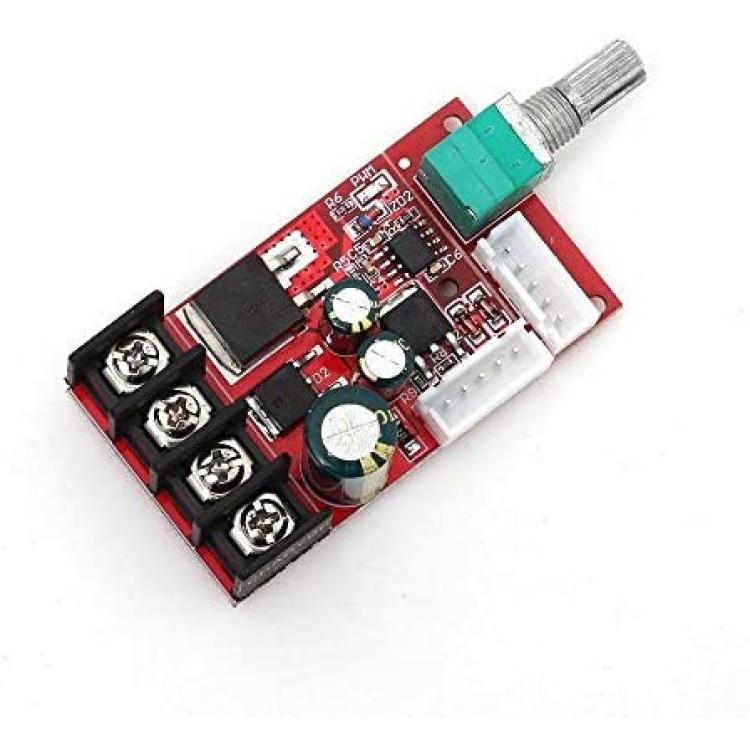

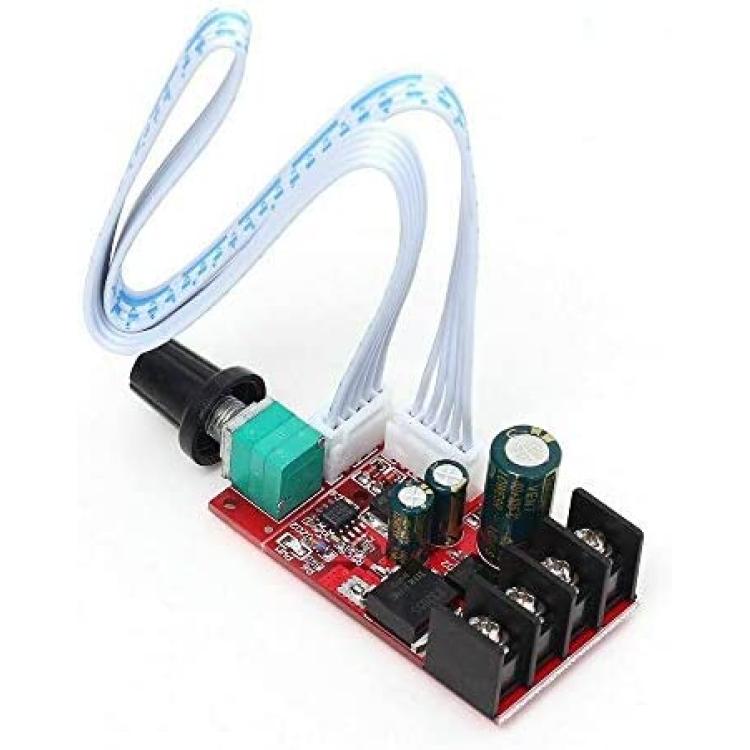

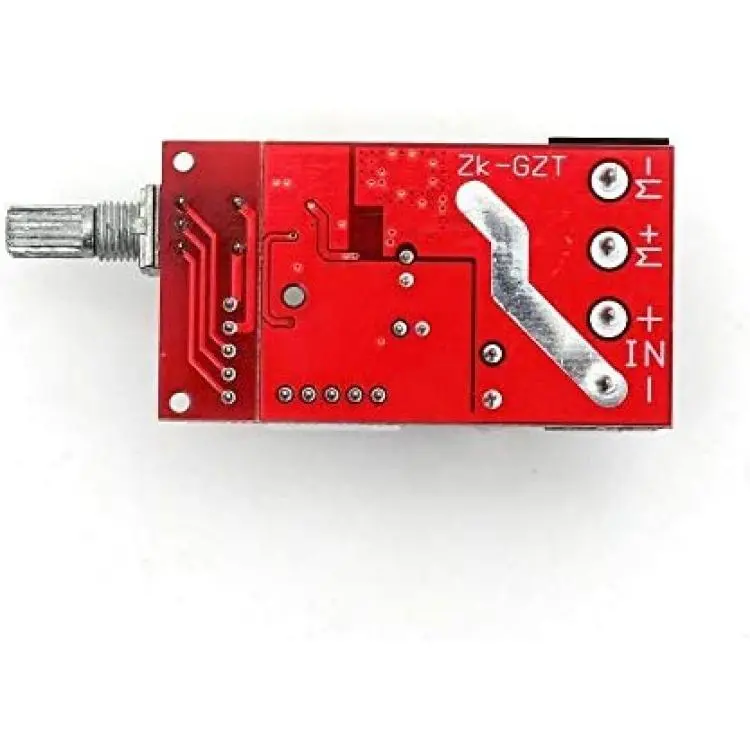

Calvas Motor Governor LED Dimmer 10V-50V 15A Motor Speed Regulator Controller Switch

1.Descriptions:
    ZK-GZT is a PWM DC Motor Speed Controller and LED Dimmer.It changes the output by adjusting the potentiometer to change the PWM signal.
2.Features:
    1>.High frequency 20Khz
    2>.Signal pure
    3>.PWM 1% ~ 100%
    4>.Support high current 15A
    5>.High quality knob
    6>.Knob supports switch function
    7>.MOS diode protection
    8>.Signal stability.
    9>.It is not affected by the start and stop of the motor.
3.Parameters:
    1>.Product Name:ZK-GZT PWM DC Motor Speed Controller
    2>.Product Number:ZK-GZT
    3>.Working Voltage:DC 10.0V-50.0V
    4>.Output Current:0~15A
    5>.Output Power:300W(Max)
    6>.Stand-by current:7uA
    7>.PWM Duty cycle:1%~100%
    8>.PWM Frequency:20KHz
    9>.Working Temperature range:-20â??~85â??
    10>.Working Humidity range:0%-95%RH
    11>.Install Hole diameter:2mm
    12>.Size:77*32*25mm
4.Using Steps:
    1>.Stop rotating the potentiometer counterclockwise until hear from potentiometer.It is used to turn OFF output.
    2>.Connect DC motor or LED at output terminal.
    3>.Connect right input voltage at input terminal.
    4>.Adjust potentiometer to adjust motor speed or LED brightness.
5.Note:
    1>.It is a DC motor speed regulator.So it can not input AC.Otherwise the module will be damaged.
    2>.Power supply positive and negative can not reverse.Otherwise the module will be damaged.
    3>.Drive part and adjustment part can be separated.
    4>.Please read use manual and description before use.
6.Applications:
    1>.Motor speed control
    2>.Adjust lamp brightness
    3>.Robot control
    4>.Smart car control
    5>.Toy
    6>.Smart home

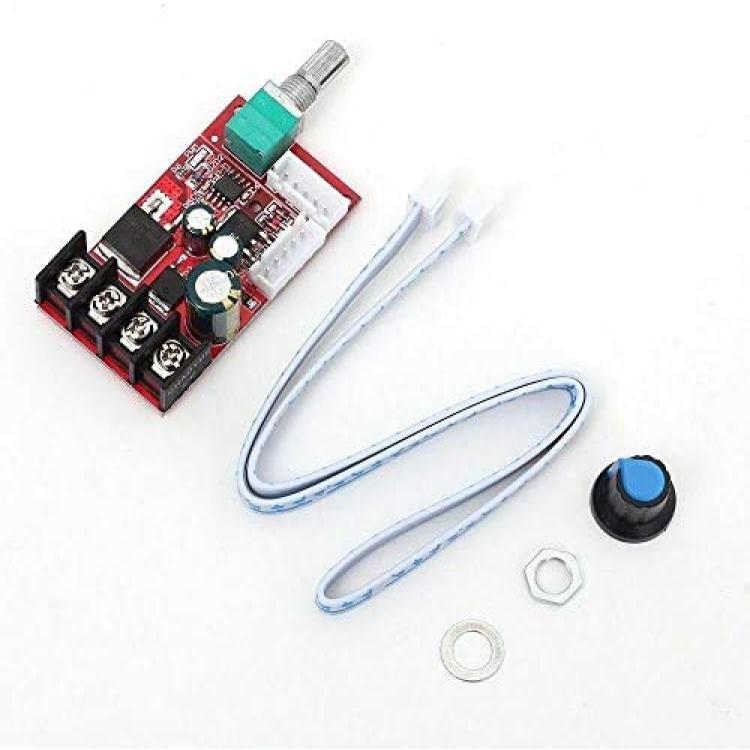

7.Package includes:
    1>.1pcs ZK-GZT PWM DC Motor Speed Controller.
    2>.1pcs 40cm XH2.54-5P Female to Femal
