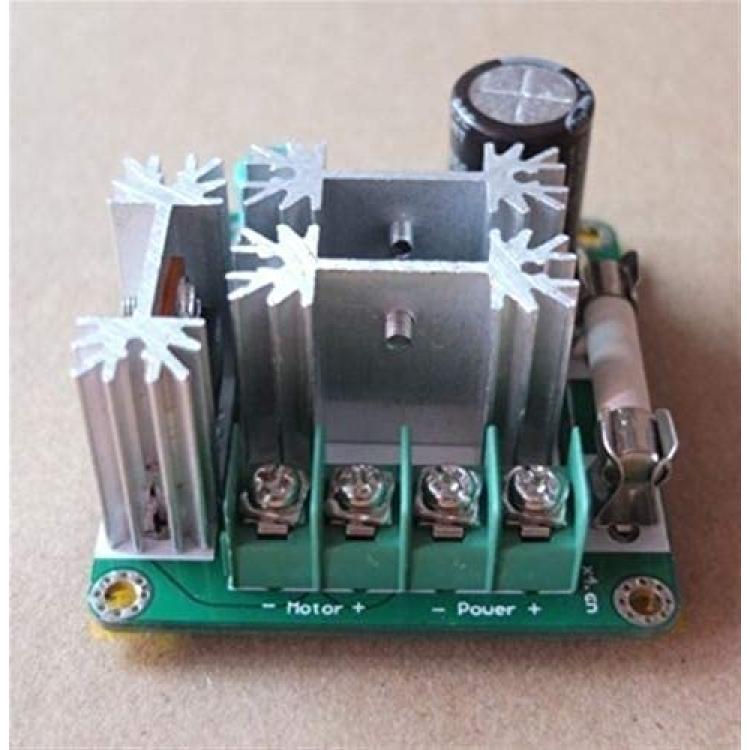

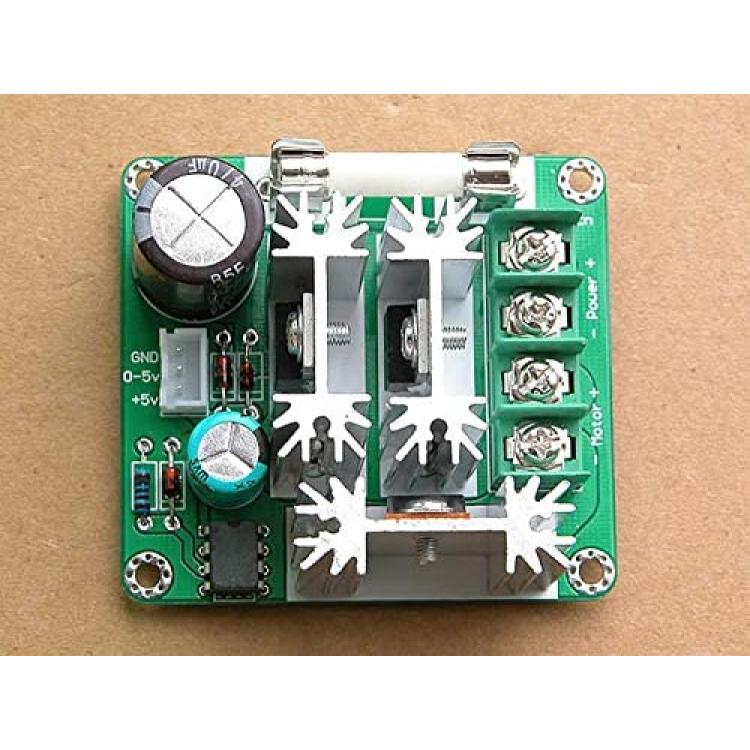

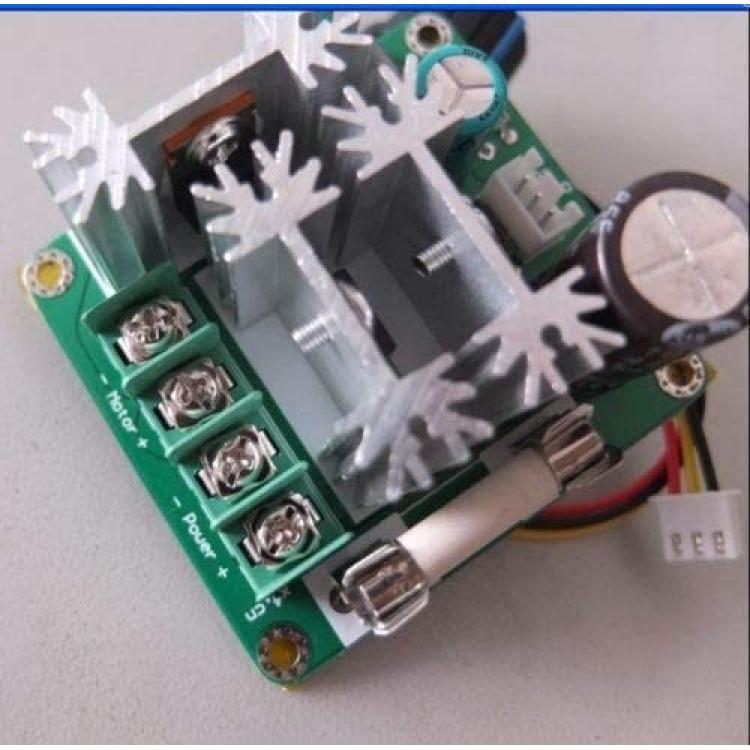

Pangocho Jinchao-Dc Motor DC 6V-90V 15A DC Motor, 12V 24V 36V 48V 1000W, Speed Control PWM Controller, Easy to Install
About this product
*Quiescent Current: 0.05A (standby)
*Operating voltage: DC6V-DC90V
*Control Power: 0.01-1000W (Max Current:15A)
*The rusty or damaged motor on the machine can be replaced.
*Easy to disassemble and maintain, suitable for mini fans, scientific experiments, remote control toy car robots, etc.
Description
Quiescent Current: 0.05A (standby)
PWM duty cycle: 10% -100%
PWM Frequency: 13khz
1.6mm FR-4 PCB
With reverse polarity protection, High-current protection. (Fuse type 20A)
Control voltage :0 - 5v ( voltage control type , you can control the speed of the motor directly with PLC )
With a reverse connection protection, control voltage over-voltage protection, 20A fast fuses ceramic fuse
The governor can control the motor speed from 0% -100% in stepless speed changing.
Package :
1x Speed Control
1 x Potentiometer
