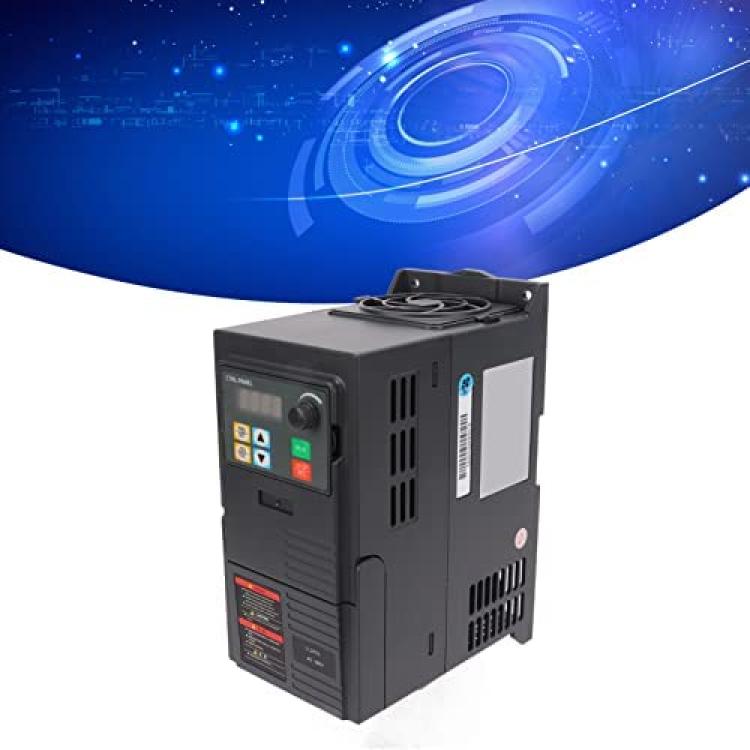

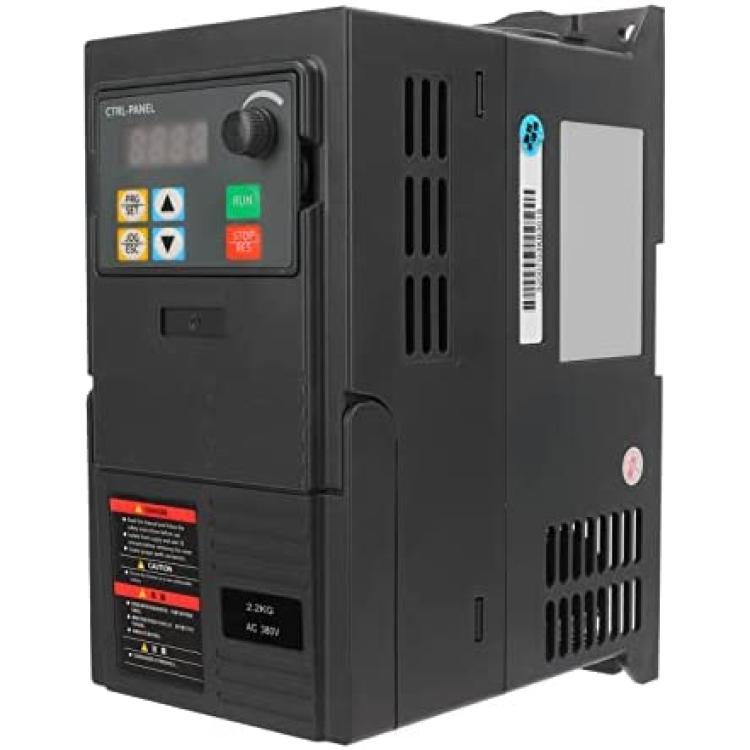

Variable Frequency Drive, Good Motor Inverter Controller 380‑440V Input Digital Display for Equipment(2.2kw 9.5A)

Feature:

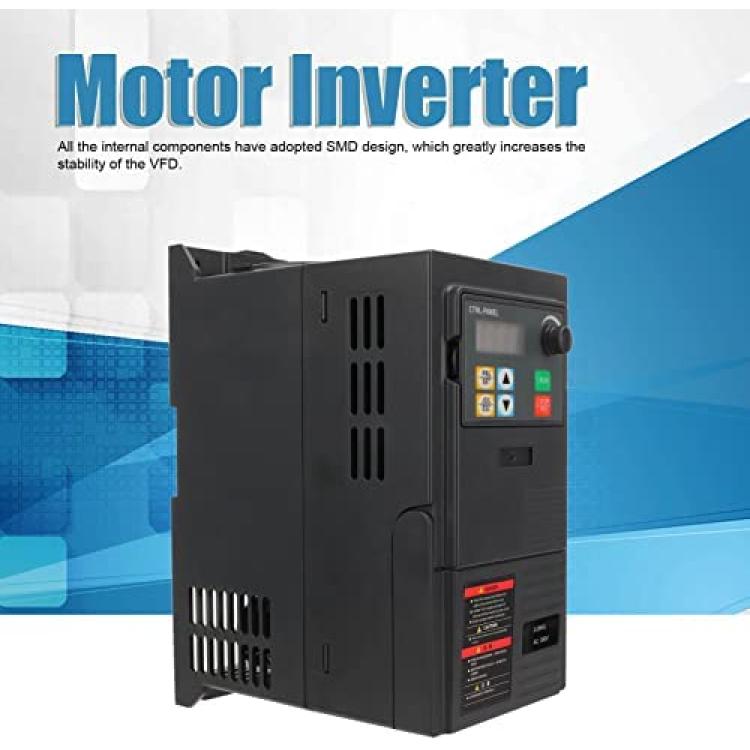

1. Reliable Work: All the internal components have adopted SMD design, which greatly increases the stability of the VFD.

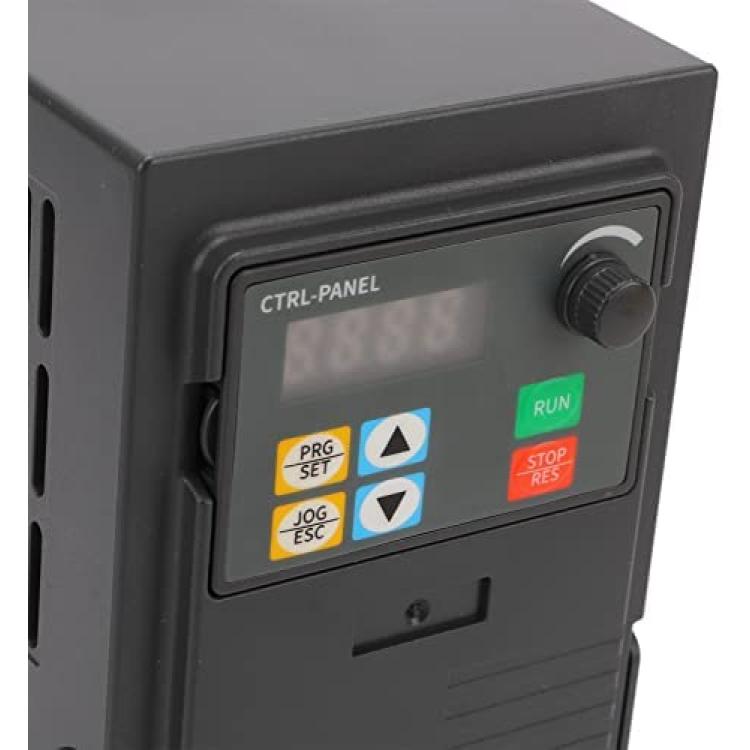

2. Simple in Use: Clear operation panel together with digital display allows for great viewing and convenient control.

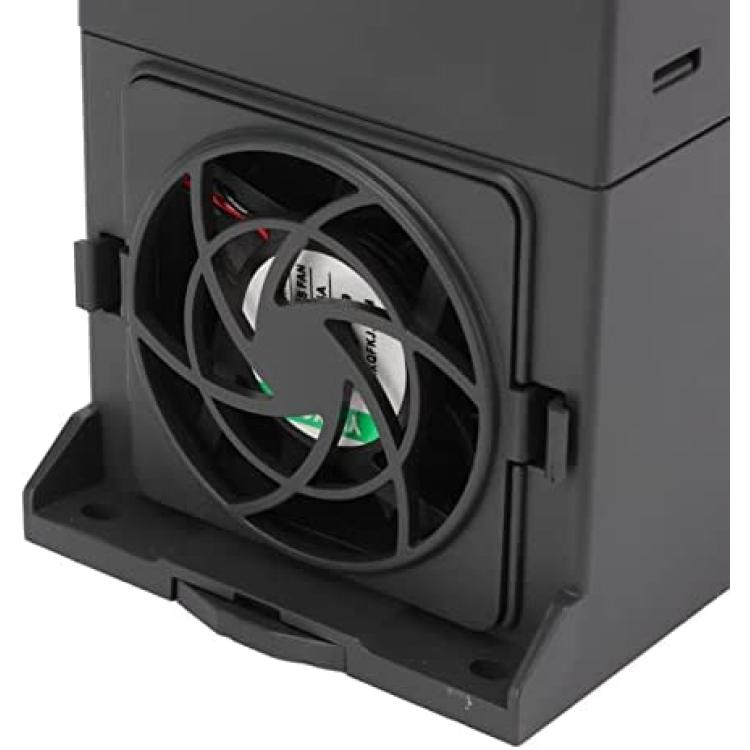

3. Quick Cooling: The extra large heatsink is also equipped with a low noise cooling fan, ensuring quick heat dissipation.
4. Good Material: Made from flame retardant ABS material, this variable frequency drive is very durable against impact.
5. Safer Working: Premium mainboard enables good protection and high for 3 phase 380-440V input and 0-440V output.


Specification:

Item Type: Variable Frequency Drive
Material: ABS
Storage Temperature: -25?~+55?
Input Voltage: 3 phase 380-440V AC.
Output Voltage: 3 phase 0-440V AC.





Package List:
1 x Variable Frequency Drive
1 x User Manual


Note:
1. Before wiring, please confirm whether the input power is in power off state.
2. For wiring work, please Ask professional electrical engineers to do it..
3. The grounding terminal must be grounded.
4. After the emergency stop circuit wiring is completed, be sure to check whether the action is valid.
5. Do not connect the output wire of the inverter with the shell, and do not short circuit the output wire.
6. Please confirm whether the voltage of the AC main circuit power supply is consistent with the rated voltage of the inverter.
7. Do not perform withstand voltage test on the inverter.
8. Please connect the braking resistor according to the wiring diagram.
9. Do not connect the power cord to the output U, V, W terminals.
10. Do not connect the contactor to the output circuit.
11. Be sure to install the before powering on. Wh
