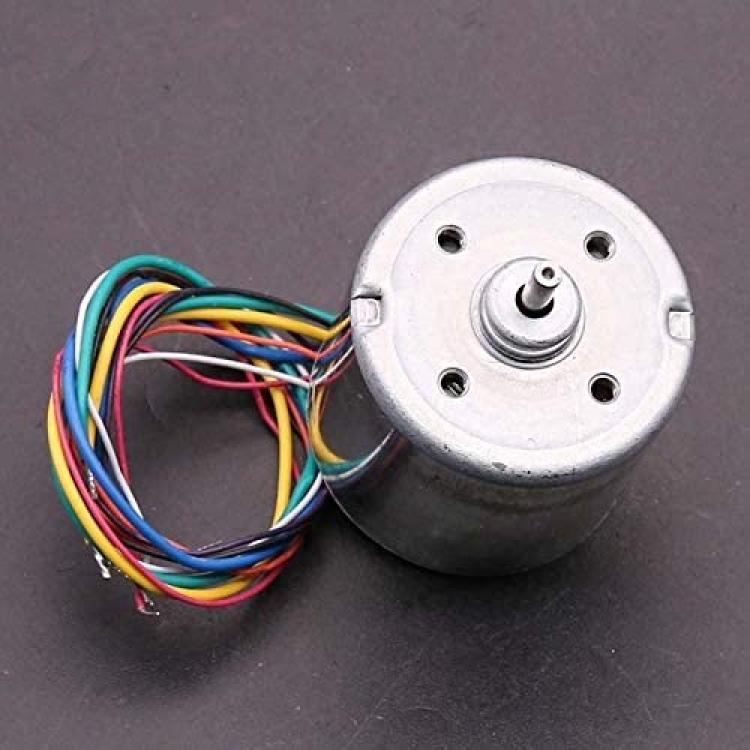

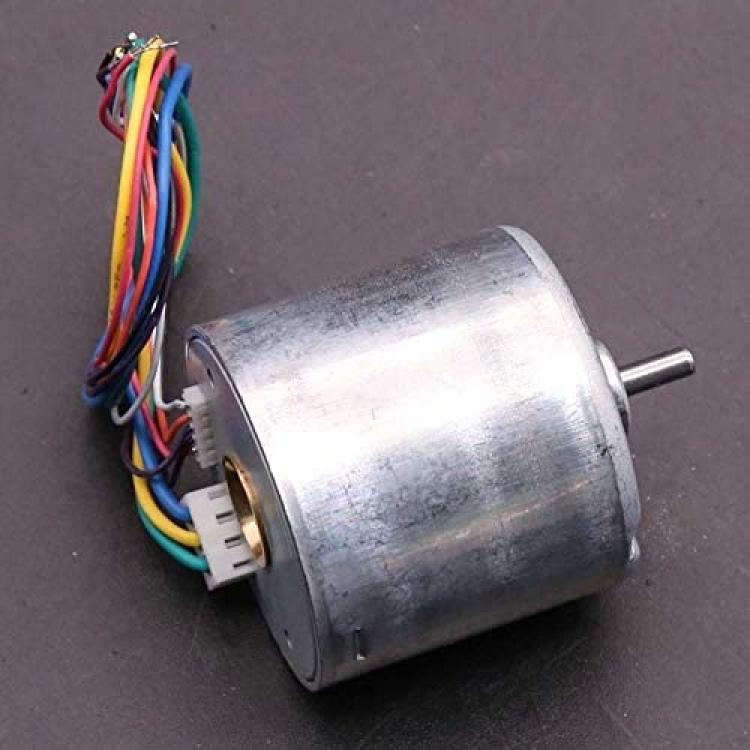

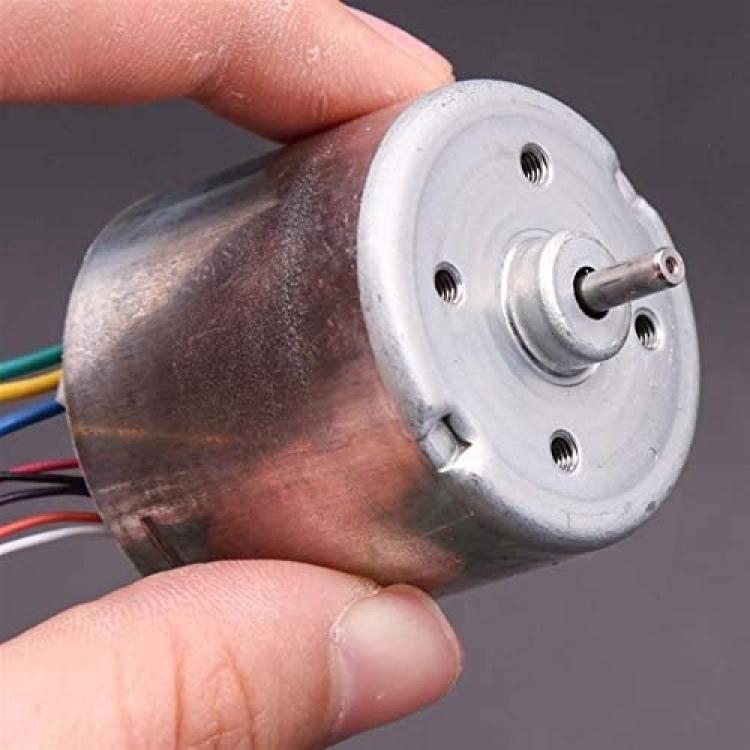

Pangocho Jinchao-Dc Motor Micro High Speed DC Brushless Electric Motor, 3-Phase 8-Wire Ball Bearing Speed Hall Sensor Large Torque, Easy to Install
Share Facebook Twitter Pinterest Email

Pangocho Jinchao-Dc Motor Micro High Speed DC Brushless Electric Motor, 3-Phase 8-Wire Ball Bearing Speed Hall Sensor Large Torque, Easy to Install

Brand: Pangocho
Product Code: MM25767
Availability: Pre-Order, Inquiry Price
US$0.00
- +

Description

Motor diameter : 36mm
Output shaft diameter: 3mm
Output shaft length: 11.5mm (from panel)
Lead wire: three-phase eight-wire (with Hall, no drive board)
Weight : 131g
The maximum speed and no-load current at different voltages are measured below:
DC 6V: Speed: 4800rpm Current: 1.4A
DC 7.2V: Speed: 5850rpm Current: 1.4A
DC 9V: Speed: 7600rpm Current: 1.5A
DC 12V: Speed:10000rpm Current: 1.7A (easy to heat)

Package included:
Motor x1.
