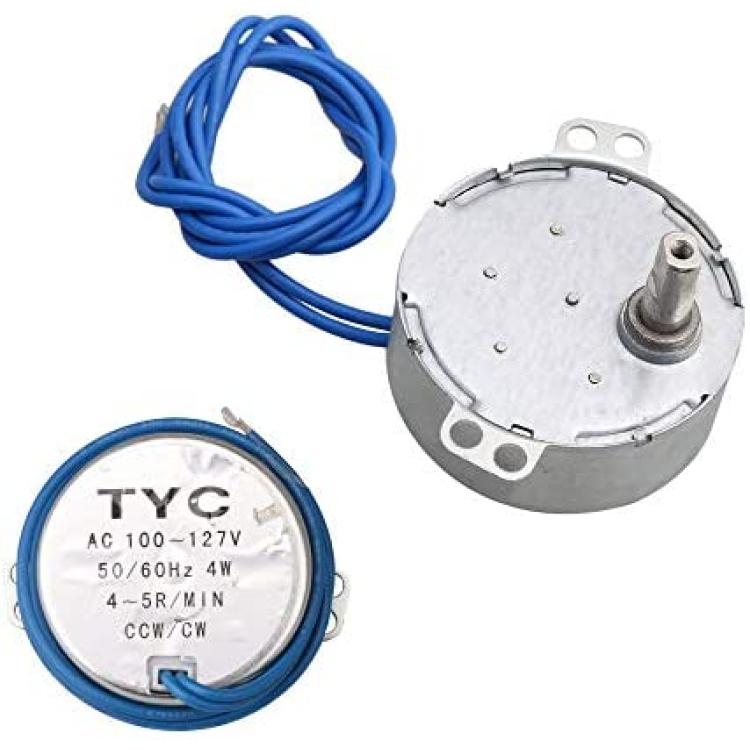

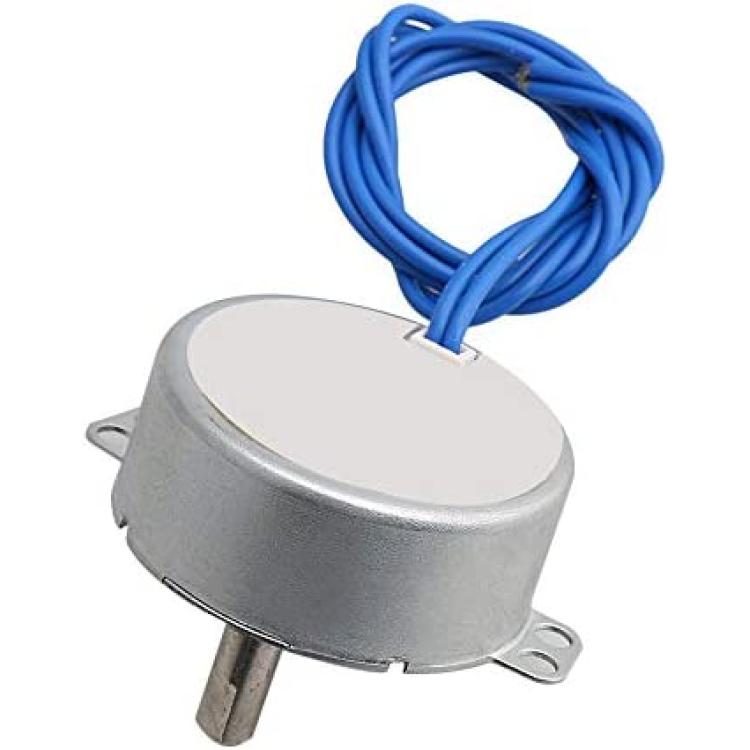

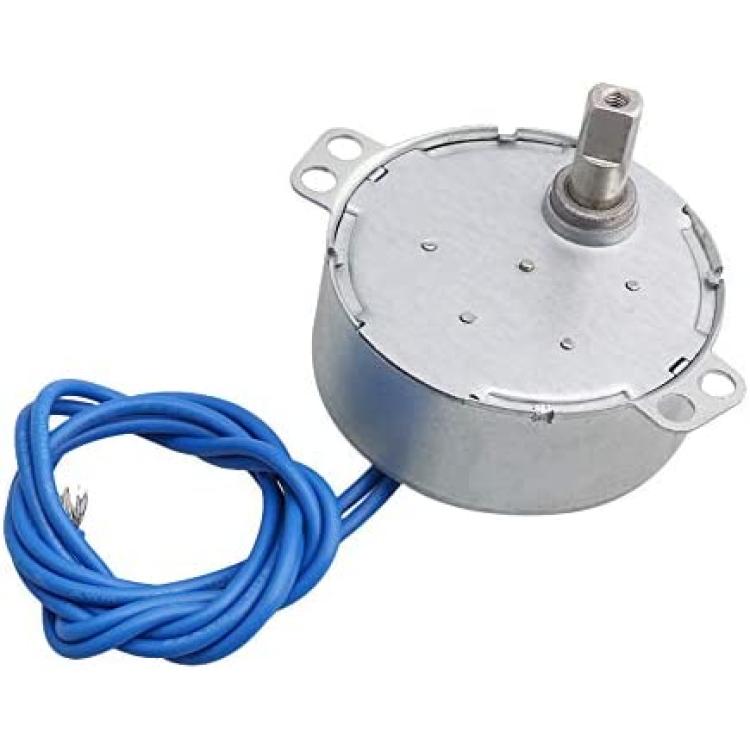

Mxfans 49mm Dia CW/CCW Direction Flat Shank Synchronous Motor 4-5RPM 6KGF.cm
About this product
*Convenient to use: low noise and easy to install.
*Wide applicaions:good synchronous motor for hand-made,model such as heater machine,electric fan,air conditioner,popcorn machine,etc.
*Undirectional motor CCW/CW: if it is stuck it will turn to the opposite way.
*Convenient to use: low noise and easy to install.
*Wide applicaions:good synchronous motor for hand-made,model such as heater machine,electric fan,air conditioner,popcorn machine,etc.
Description
Features:
1.Each qualify checked item with a unique Manufacturing Part Number label on the inner package to confirm if it is the authentic item sold from our store.
2.When you have any problems about your item, please send us the MPN label information first.
3.Convenient to use: low noise and easy to install.
4.Wide applicaions:good synchronous motor for hand-made,model such as heater machine,electric fan,air conditioner,popcorn machine,etc.
5.Undirectional motor CCW/CW: if it is stuck it will turn to the opposite way.
6.It is normal that the motor will get hot when working.
Specifications:
Material:Metal
Color:Silver
Brand name: Mxfans
Voltage: AC 110V
RPM: 4-5rpm
Torque: 6KGF.CM
Currency: 20-100mA
Power: ¡Ü4W
Shaft total length: 15.5mm /0.61inch
Flat shaft length: 8mm/0.31inch
Total Shaft diameter: 7mm/0.28inch
Upper thread: M3
Flat shaft thickness: 5mm/0.2inch
Motor diameter: 49mm /1.93inch
Motor height: 40mm/1.57inch

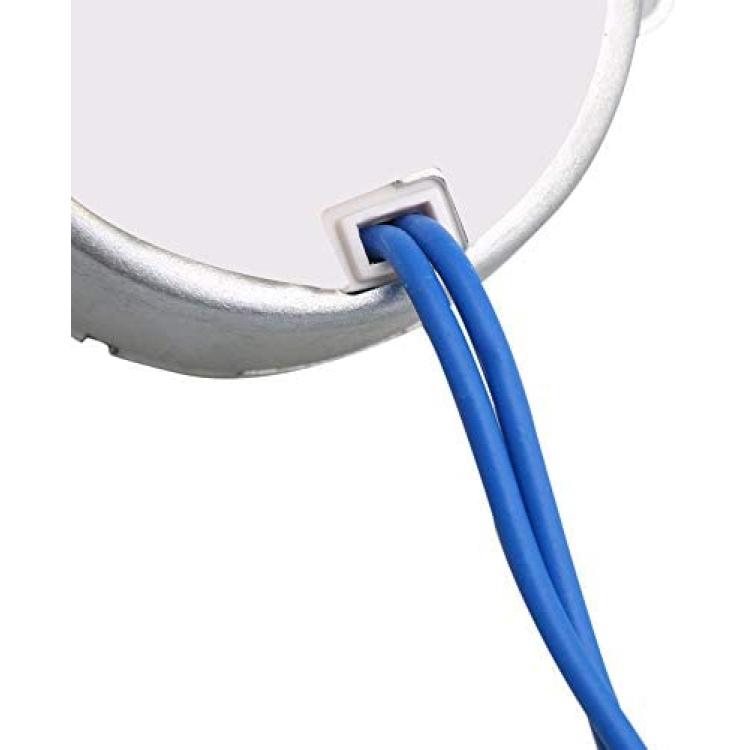

Wire: about 40cm
Undirectional motor: CW/CCW
Weight:88g
Package content:
1 x Synchronous Motor
