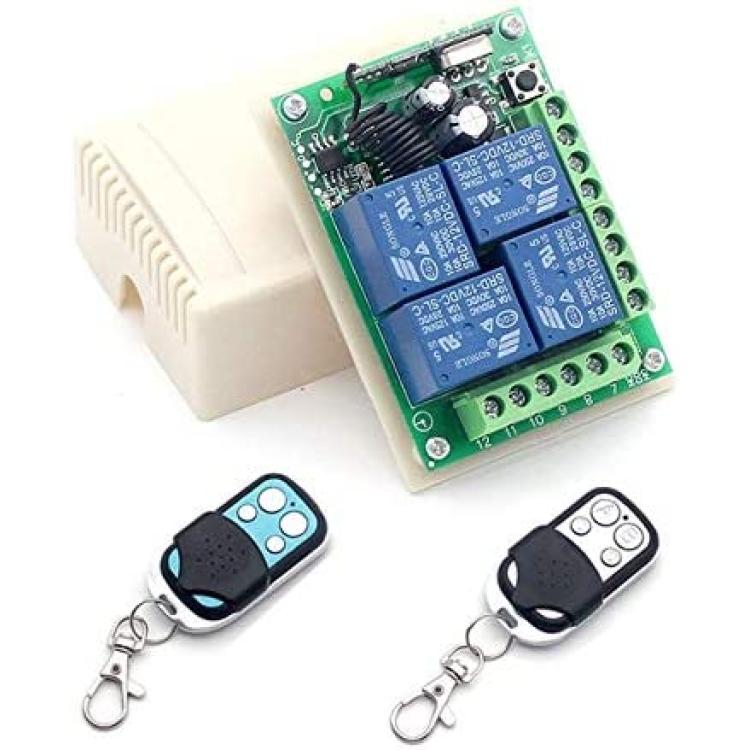

Calvas DC 12V 10A 4CH Wireless Remote Switch Relay Module Smart Home Automation Multi-fonction Motor Controller 433MHz Receiver - (Color: Switch w 2RF)
Description
Receiver Descriptionï¼?
1, the working voltage: DC12V
2, operating frequency: 433MHz
3, load power:Â Each channel 1000W
4, Load current: Each channel 10A
5, quiescent current: 8mA
5, receiving sensitivity: -105dbm
6, frequency deviation: ± 0.2MHz
7, coding method: learning type
8. Working mode: Jog, self-locking, interlocking, (two-way jogging/two-way self-locking) (two-way jogging/two-way interlocking) (two-way self-locking/two-way interlocking) (two ways Interlocking / Two-way interlocking)
9, modulation method: ASK
10, remote control distance: 100m (wild)
11, PCBA size: 68mm*48mm*18mm
12, Shell size: 76mm*56mm*30mm

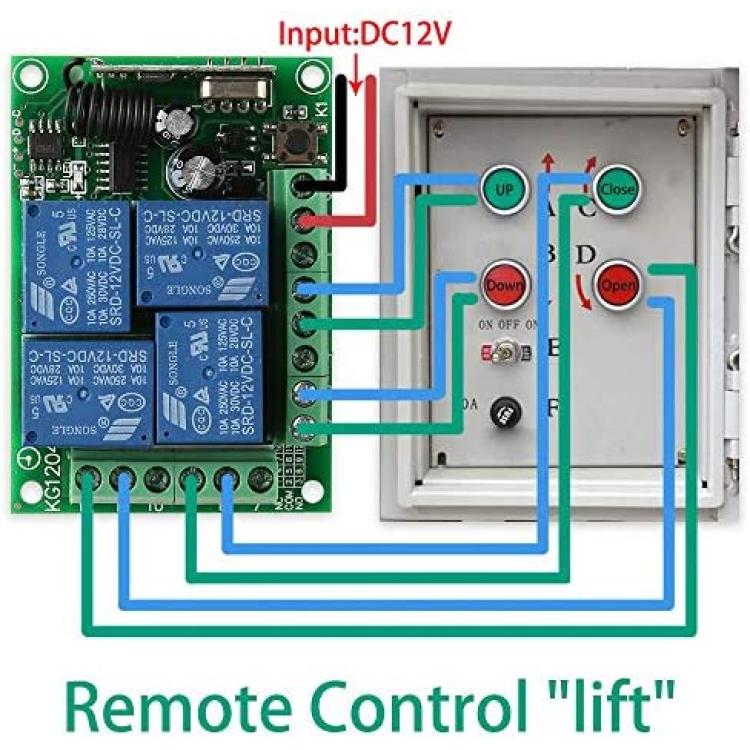

The terminal function Descriptions:
1, (+V:power positive input)
2. (GND:power negative input)
3ã?(1:KC1 relay normally closed end) (2:KC1 relay common terminal) (3:KC1 relay normally open end)
4, (4:KC3 relay normally closed end) (5:KC3 relay common) (6:KC3 relay normally open end)
5, (7:KC2 relay normally closed end) (8:KC2 relay common) (9:KC2 relay often open end)
6, (10:KC4 relay normally closed end) (11:KC4 relay common) (12:KC4 relay normally open end)
Learning code.
(Note "Learning code" means "matching") :
1,  Jog / Momentary method:
Press the control panel pairing button once. The LED indicator flashes once. After the LED indicator is on, press the remote control button that needs pairing. The control panel LED indicator blinks 3 times in succession, which means that the code is successful.
2,  Self-locking / Toggle method:
Press the control panel pairing button twice in succession. The LED indicator will flash 2 times. When the LED indicator is on, press the remote control button that needs to be paired. The control panel LED indicator blinks 3 times in succession, which means that the code is successful.
3 ,  Interlock / Latched method:
Press the control panel pairing b
