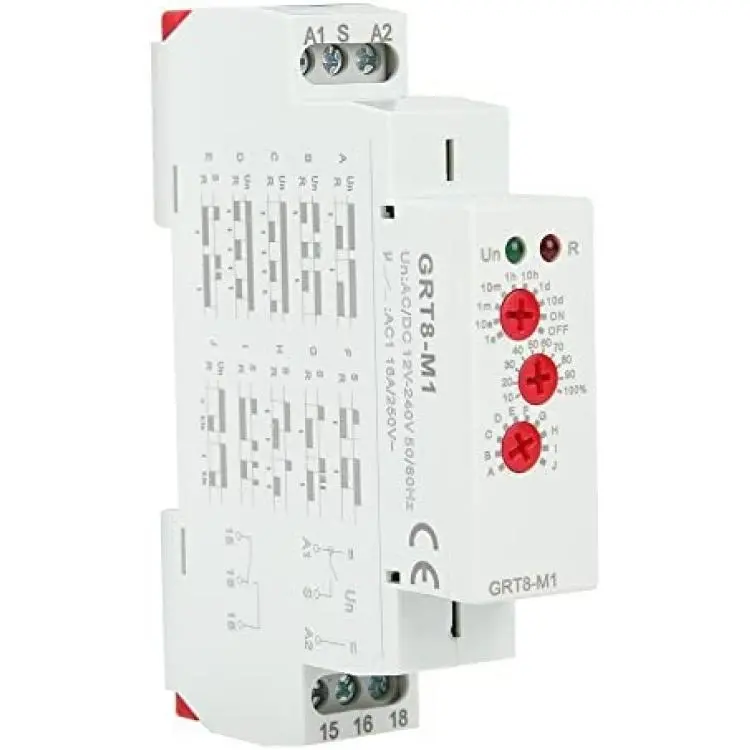

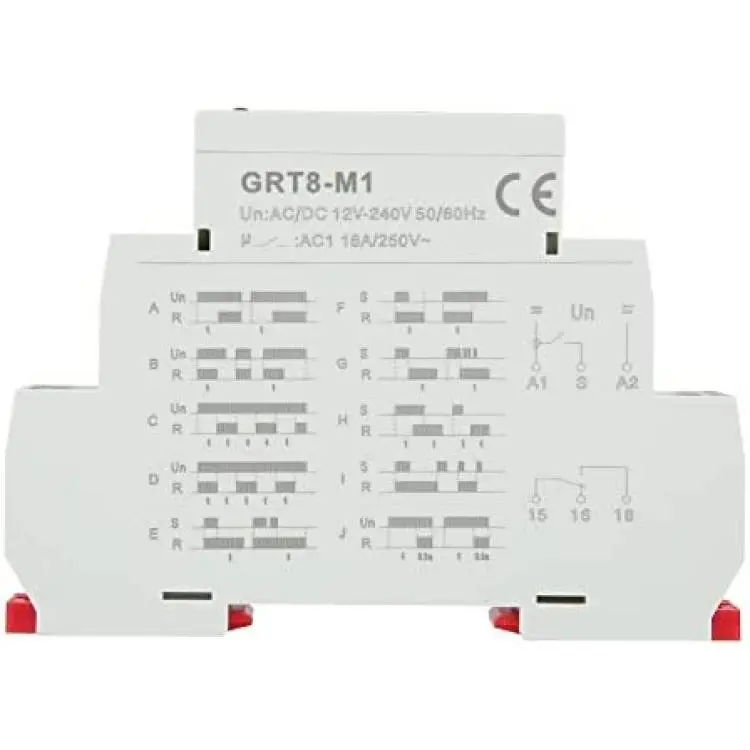

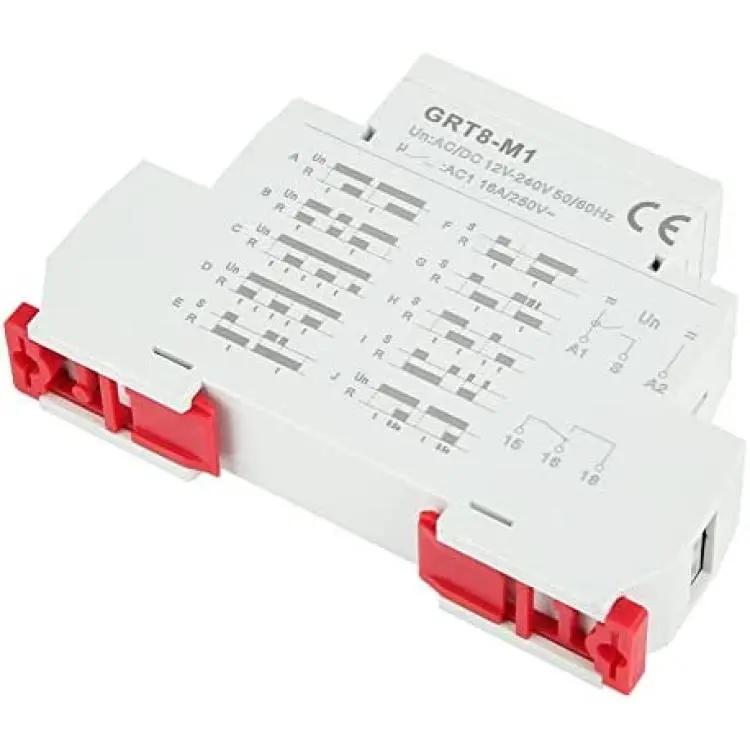

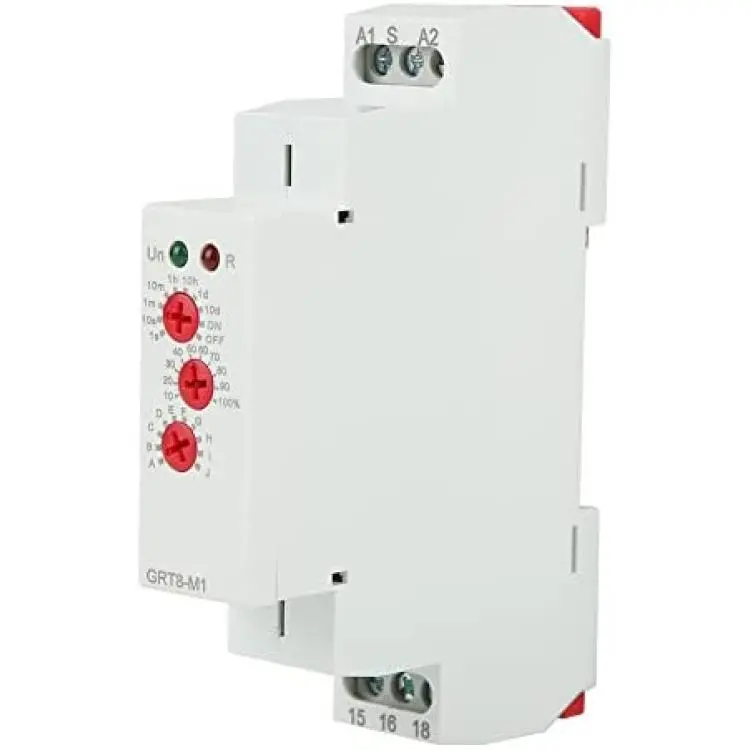

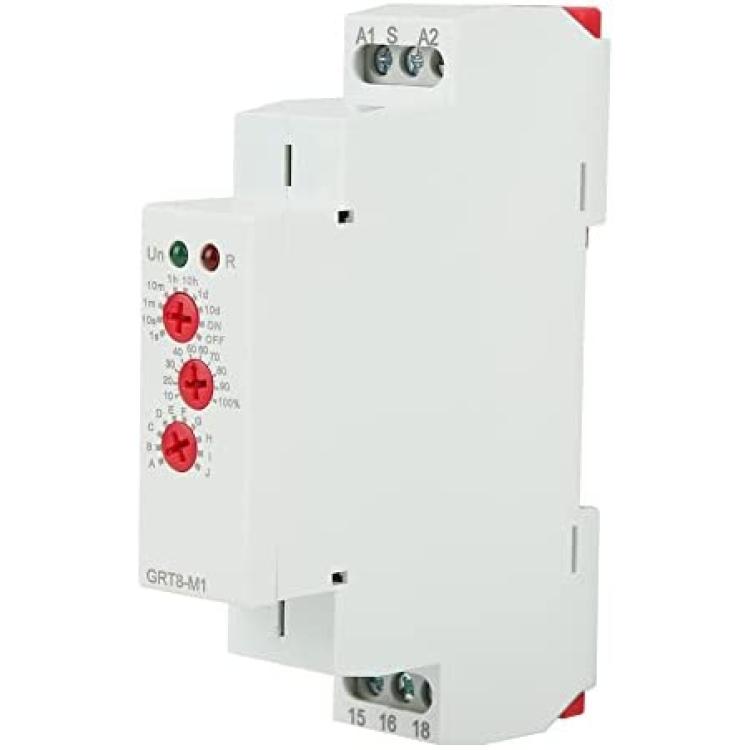

Time Relay GRT8-M1 Multifunctional Delay Time Relay with 10 Functions DIN Rail Mount AC/DC 12V~240V
Description
Specifications:
Rated power supply voltage?AC/DC 12V~240V (50-60Hz)
Power terminal?A1-A2
Power consumption?AC0.09-3VA/DC0.05-1.7W
Setting method?knob
Setting accuracy ?10%
Power indicator?Green LED
Delay range?0.1s-10 days, normally open, normally closed
Repeated accuracy?0.2%
Temperature fluctuation error?0.05%/?, at = 20?
Output contact ?1 × SPDT, 250VAC/24VDC
Minimum switching power?500mW
Output relay indication?red LED
Mechanical life?1×107
Reset time ?Max 200ms
Weight ?Approx. 75g/2.6oz
Mounting altitude??2000m
Mounting method?35mm DIN rail
Working temperature ?-20?~55?
Package Included?
1*Multifunctional Delay Time Relay
