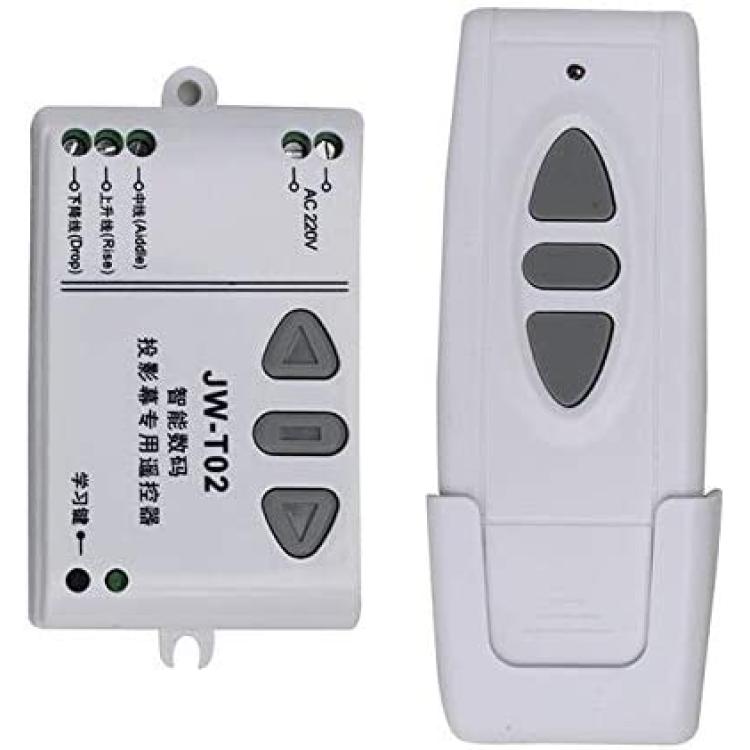

Calvas JW-T02 AC 220V Motor Wireless Remote Control Switch UP Down Stop Tubular Motor Controller Motor Forward Reverse TX RX Latched - (Color: 315MHZ)

AC 220V Motor Remote Controller Wireless Remote Control Switch UP Down Stop Tubular Motor Controller Motor Forward Reverse TX RX
1.Input Voltage: AC220V
2.Output Voltage: 2pcs Live Line
3.Transmitter ï¼?Latched
Button " "  Up/Motor Forward.
Button " "  Down/Motor Reverse.
Button " "  Stop.
4.Applicative Motor: AC220V 500W or less 3 Lines Forward Reverse Motor
(Forward Line +Reverse Line+ COM Line)
5.Encoding Type: Learning Code (Learning Button to add Transmitter).
6.Receive Size: 83 x 51 x 24mm (L x W x H)
7.Transmitter Size: 120 x 45 x 18mm (L x W x H)
8.Transmitter: 50m Transmitter with a base for fixed it on the wall.
9.Frequency:315 / 433.92 MHZ
10.Learning Code
Input AC220V for the receiver, press the receiver setting button, the LED indicator flash, then press the transmitter button, the LED indicator OFF, it means the learning is successfully. When you press the Up Stop Down Button, you will hear the sound of the relay.
11.This Controller Perfectly suitable for Tubular Motor, the controller Terminal for Tubular Motor 4 pcs Lines,( Tubular Motor Yellow Green Line connect to GND).This controller with no limited switch Terminal, Tubular Motor itself with Limited Switch.
3.Package includes:
1 x Receiver
1 x Transmitter (with battery)
Item specifics:
Model number: JW-T02
Channel: 2
Package: No
Wireless communication: RF
Use: Universal
Frequency: 315mhz /433mhz
Use: Universal
Transmitter distance: 20~100M
