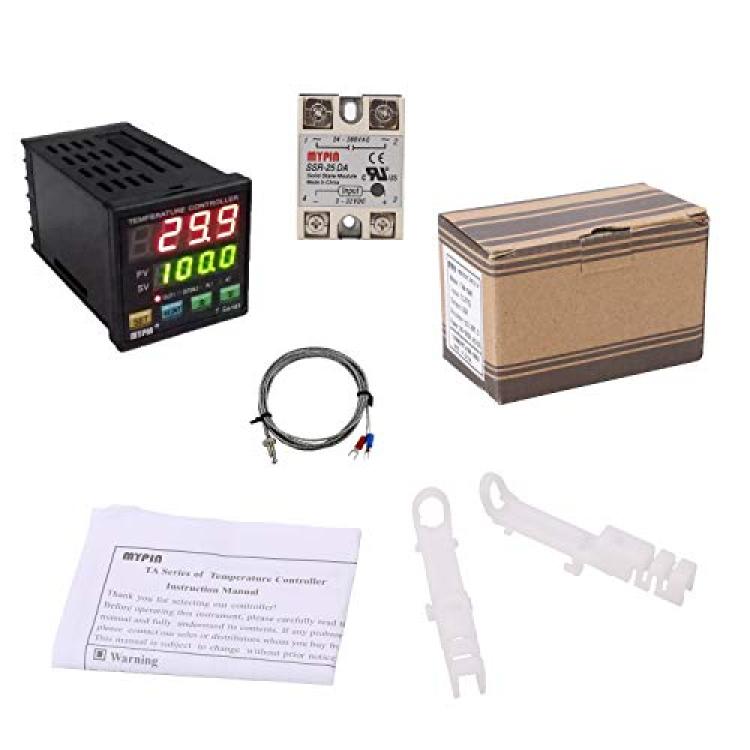

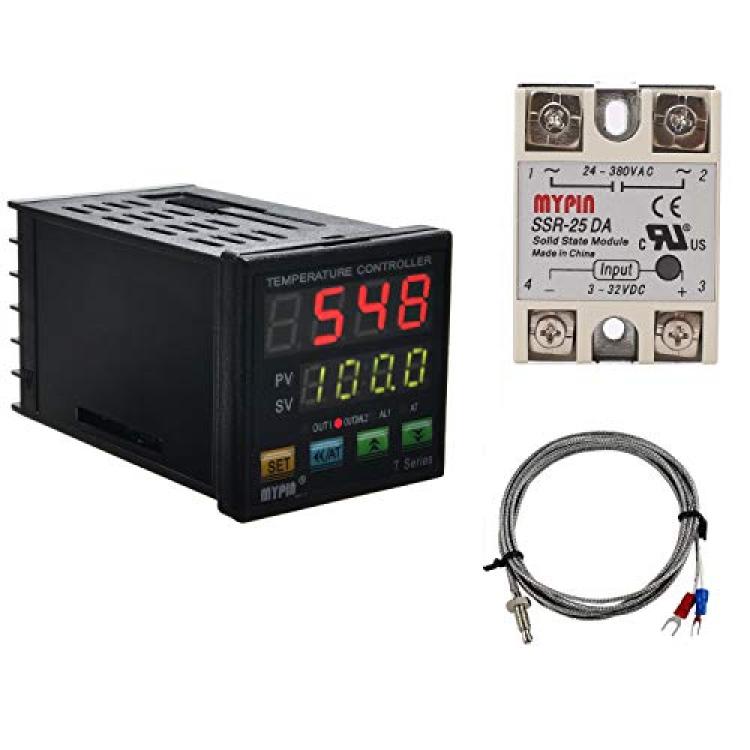

PID Temperature Controller Meter Indicator, Jaybva Digital Programmable Universal Thermostat Fahrenheit and C Display SSR and Alarm Output 25A Solid State Relay Thermocouple Probe Included
Availability: Pre-Order, Inquiry Price
About this product
*Dual LED Display: This PID temperature controller can read TEMPS in Fahrenheit (F) and Celsius(C) . You can choose Centigrade or Fahrenheit unit .
*TC/RTD universal input , such as K , J , E , Pt100 etc. SSR solid state relay output .
*Dual Output: 7 different Dual Output combinations with 1 relayed output and 1 SSR control voltage output.
*This temperature controller has built in autotuning . After you have set your temps you press and hold the blue button for a few seconds and the AT light will come on and run through an auto tuning program to get you the best PID results.
*Wide Application: This pid controller is widely used in auto system in line of light industry, chemistry, machinary , metallurgy, ceramics, pertrification industry, or temperature control and adjust system of food & beverage, smoker , incubator, oven; furnance, plastic extruder heating process etc.
Description
Specifications :
Power supply : 90-265V AC/DC

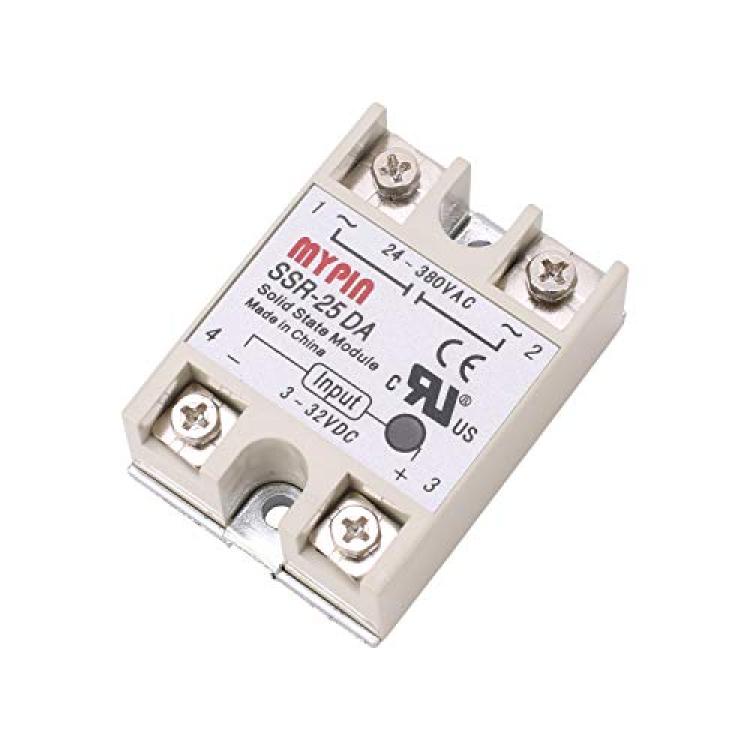

SSR Solid state relay type included : 25A

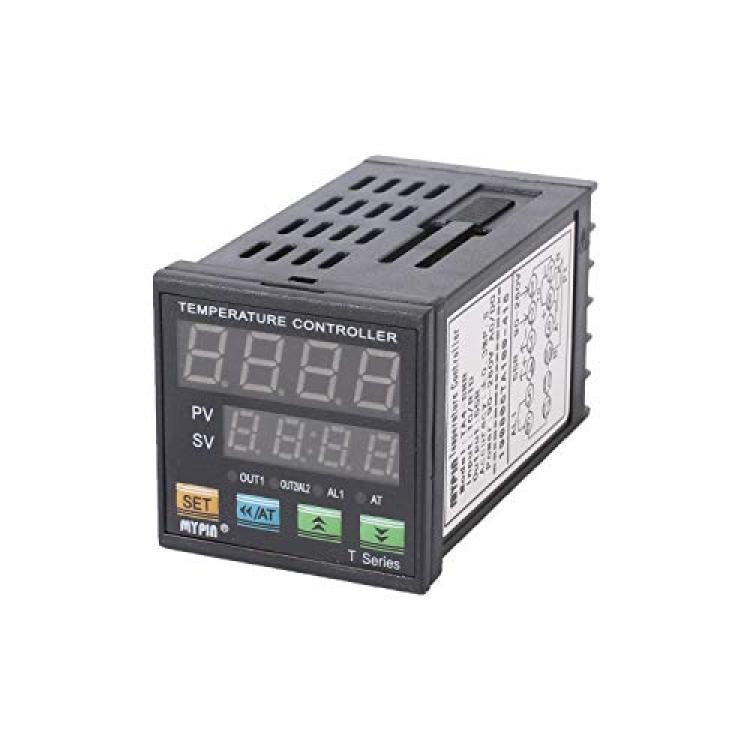

Mounting Dimension: DIN: 1/16 (48mmX48mmX80mm)
Thermocouple included: M6*1 thread , K type , 2m cable
Display: Dual display for Fahrenheit(F) and Celsius(C)
Range: -1999 to 9999 (depends on the input signal)
Main Output: SSR: Open circuit: 4V, Closed Circuit: 24V40mA DC
Auto-tuning PID cooling/heating control
1 RELAY alarm: Normal open, capacity 250V/3A AC or 30V/3A DC
Accuracy: 0.2%

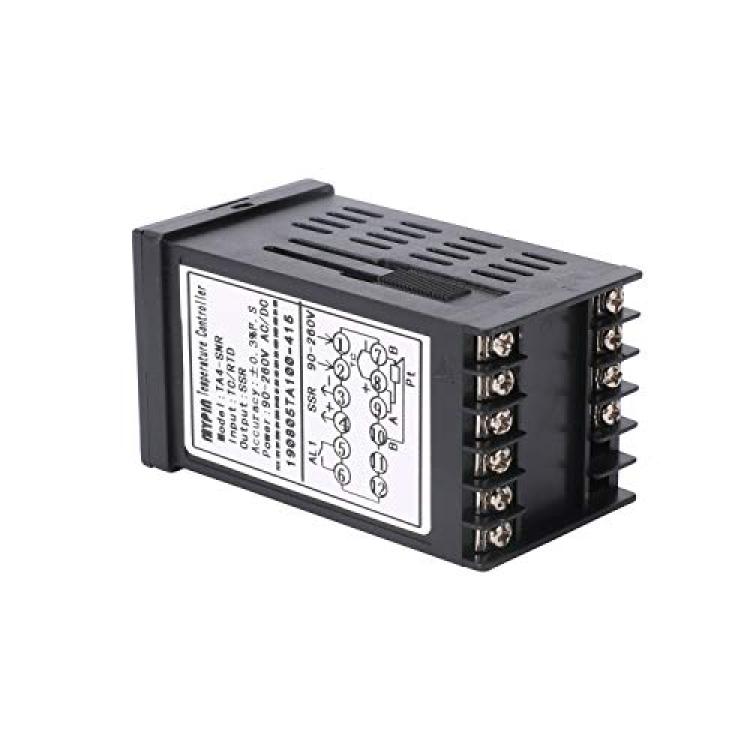

Universal Input: Thermo Resistor: PT100, Cu50 . Thermocouple: J,S,K,E,Wre3 ~ Wre25
Net Weight: about 150g
Individually programmable PID control parameters
P, I, d, controlling period, digital filter coefficient, and more… (for control theory experts only)
SSR control ready to connect external Solid State Relay to handle High current. Applications
K type thermocouple, 0-500?, 2m cable (6 feet).
Compact design:
DIN: 1/16, great form-factor to be included/build-in to your product.
Apply with step control, 1 independent PID control for heating/cooling over temperature, pressure, level ,flown , etc..Widely used in auto system in line of light industry, chemistry, machine, metallurgy ,ceramics, pertrification industry, or temperature control and adjust system of food & beverage; oven; furnance, plastic extruder heating process etc;
One key operation, Auto-tuning PID/ Fuzzy PID control.Easy operation,Reliable performance Input: TC(K?J?S?E)/ RTD?Pt100?CU50?universal input, or 4-20mA/0-10V/0-75mV signal from standard pressure/level transmitter, Control output: RELAY SSR SCR 4-20mA 0-10V (If 4-20mA or 0-10V DC output,you can choose PID control or analog output)
Alarm output: 1 line output,7 kinds of alarm mode: high / low / high deviation / low deviation/ interval / out of interval /breakage alarm
