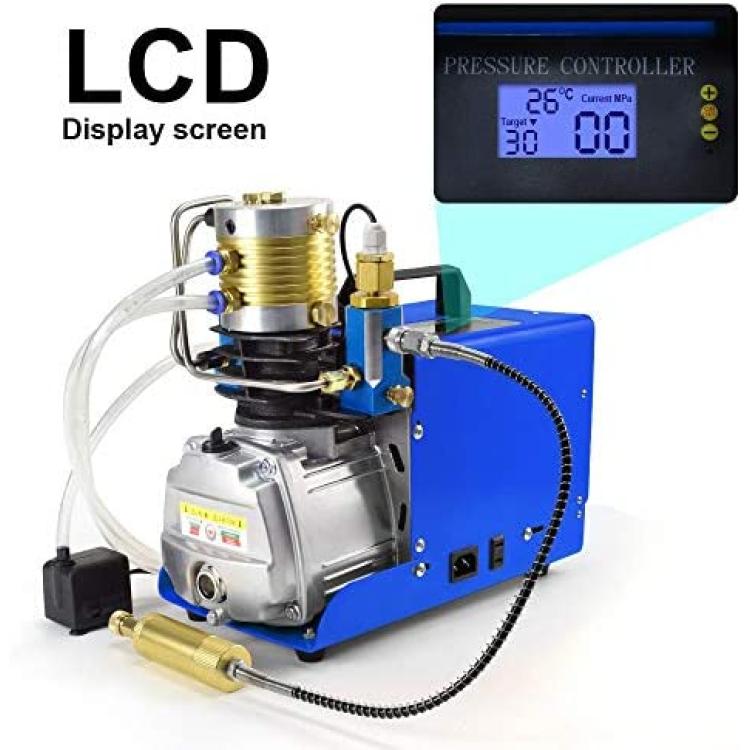

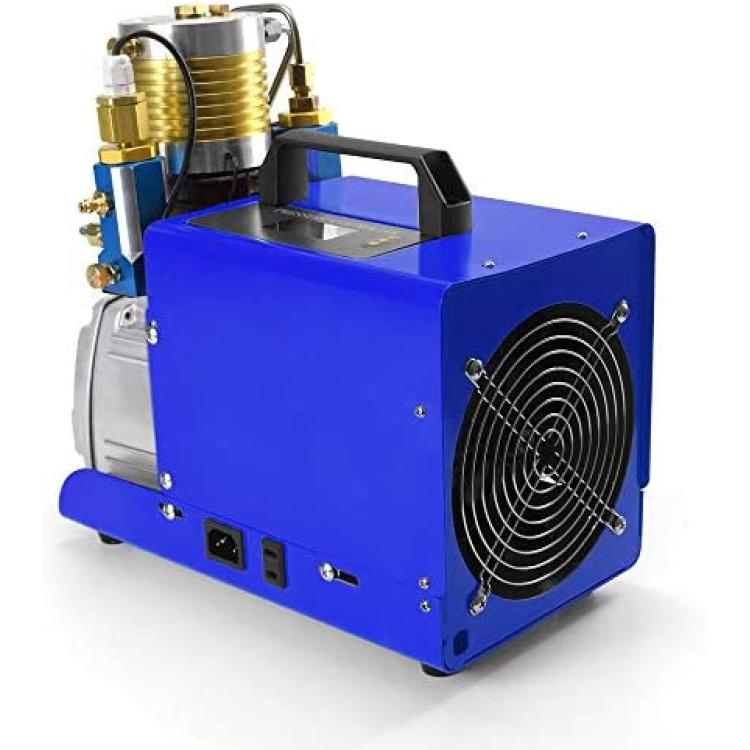

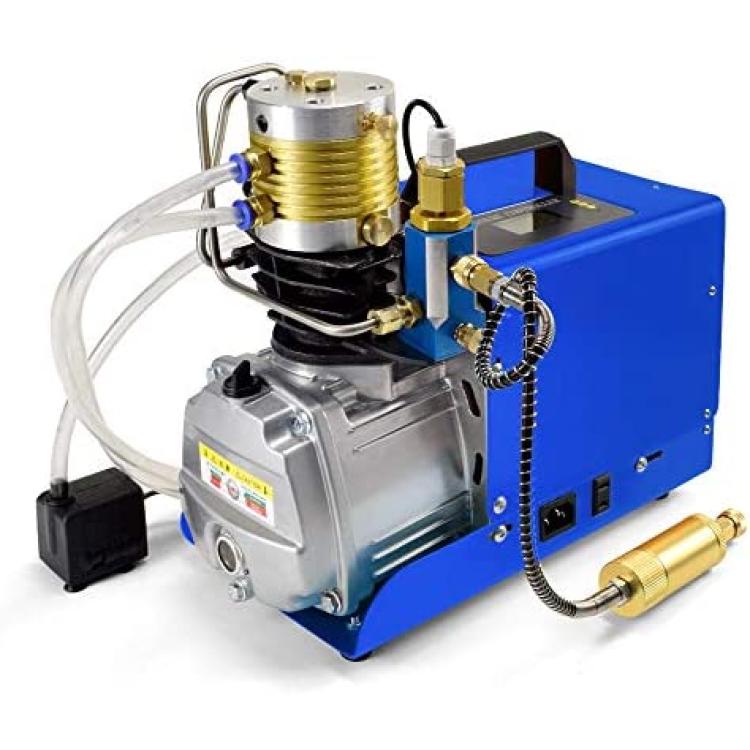

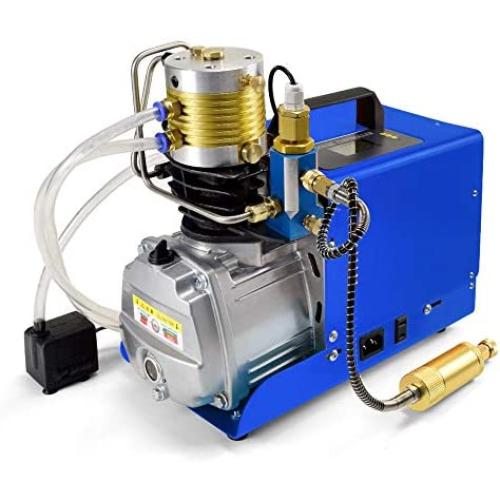

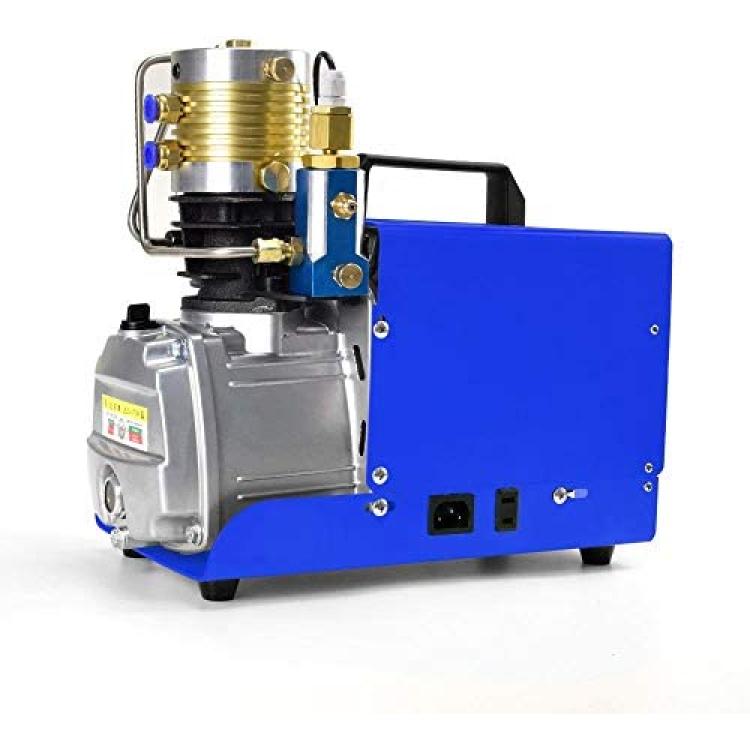

Portable PCP Air Compressor, Digital LCD Display Pressure Controller 4500Psi/ 30Mpa Set-Pressure Auto-Stop Paintball/Scuba Tank Air Pump Rifle Airgun Inflator with External Water-Oil Separator
Description
Features
?With function of 0-30Mpa pressure free setting and automatic stop when reach the setting pressure.
?Better use experience because it has not only with functions of automatic stop and pressure setting, and also with 5 improved design based on customer needs.
?Safe usage, with safety valve on low pressure cylinder and with precision explosion-proof valve on the high pressure side
?With two-stage compression, and using high-quality components to ensure stability performance and long service time.
?Water pipes and pumps have been installed in the machine before shipping, reduces the risk of misoperation
Parameters
Special function: Pressure preset, auto-stop
Voltage: 100-130V 60Hz
Power Rating: 1.8KW+
Working Pressure range: 0-300BAR, 0-30MPA, 0-4500PSI
Temperature protection: Less or equal to 80 Celsius degree (176 Fahrenheit degree)
Cooling System: Water Cooling+ Air Cooling
Compression Stage: Two Stage
Lubrication Mode: Splash Type
Cover material: Cast Aluminum
Motor material : 100% Pure Copper
Dimension: L340mm* W180mm *H370mm
Oil: L-MH 46 Anti-Wear Hydraulic Oil (High Pressure) GB 11118.1 or 5W-40 oil (Note: the machine is without oil because the oil is not allowed on the plane)
Charge rate test: It takes 4 mins to fill full 0.5L tank to 30MPA. / It takes 8.5 mins to fill full 1L tank to 300BAR / It takes about 58minutes to full 6.8L tank to 30MPA.
Packing list
1x 30MPA Pressure preset type Air Compressor Pump and power line
1x Water Pump
2x Water Pipe
1x Filter and flexible pipe
8x Filter Element (spare parts)
1x Filter plug (for test usage)
1x Female End air hose
1SET O-Ring (spare parts)
2x Explosion-Proof Disc (spare parts)
2x Spring (spare parts)
1x Oil tank breath plug
1x English manual
