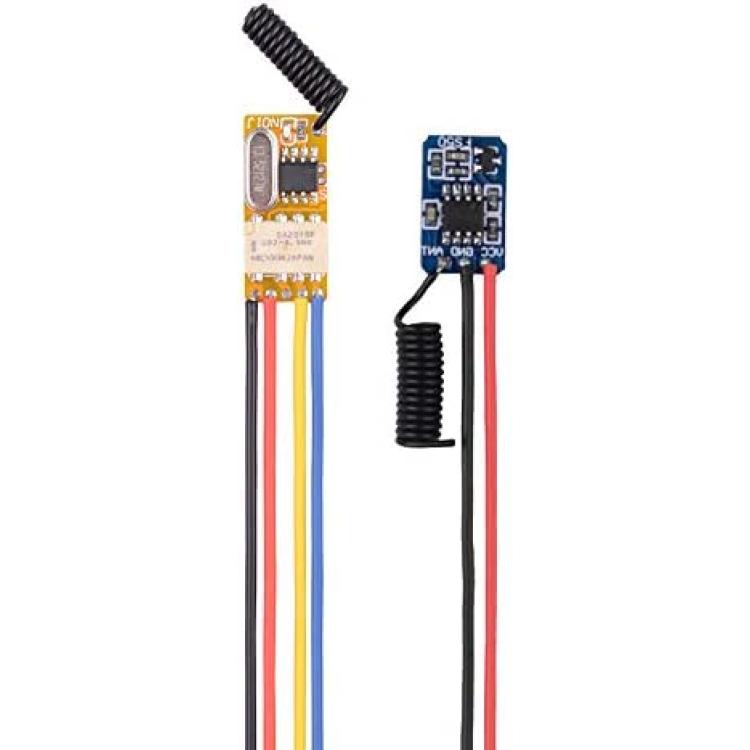

3.7-12V Wireless Remote Control Switch Mini Small PCB 433mhz RF Transmitter,3V -12V Battery Power Circuit Micro Controller for DIY

This product is an ultra-small mini remote switch. This is a safe widely used and flexible remote relay.

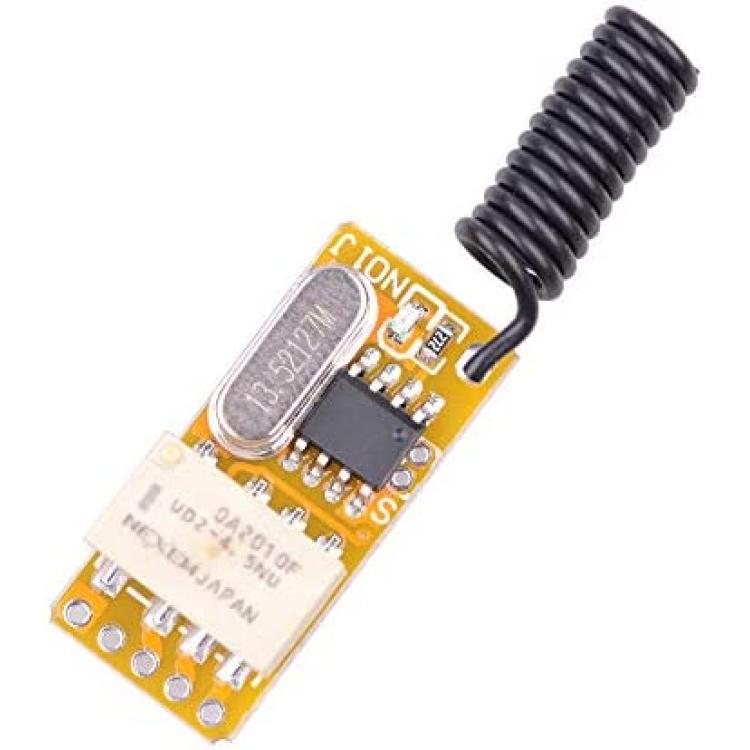

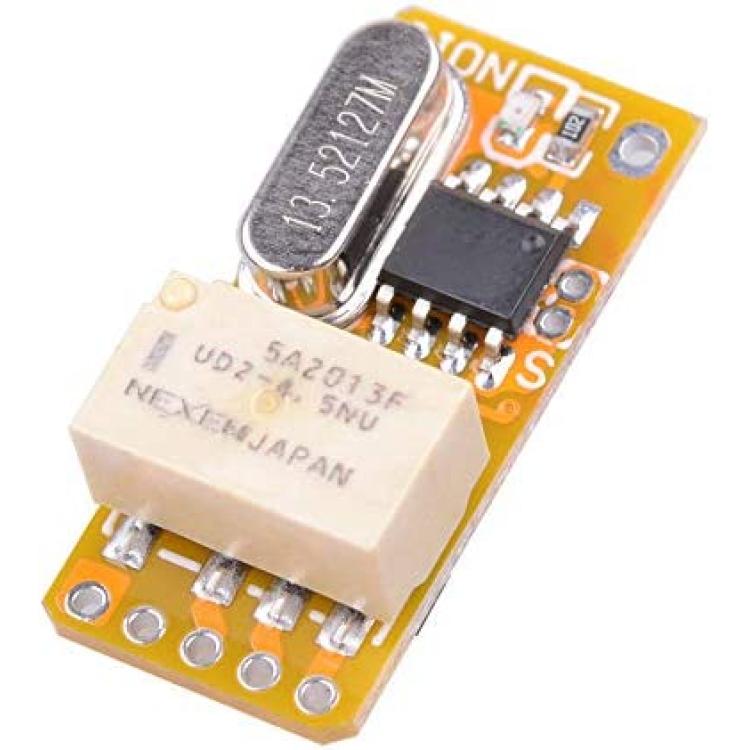

Receiver parameters :
Model number: NO1J
frequency: 433Mhz
Working Voltage: DC3.5V-DC12V
Wide Range Working Voltage DC3.7V 4.5V 5V 6V 9V 12V
Max Load: 1A (have better Load less than 700ma)
Quiescent Current: 5ma
Relay Working Current: 30ma
Size: 25*11*8mm

Working Mode: Momentary. Toggle .Latched ,Delay time 10S adjustable.you can change working model by yourself.
(Notice: we send Momentary mode default .
Encoding Type: Learning point to add extra transmitter

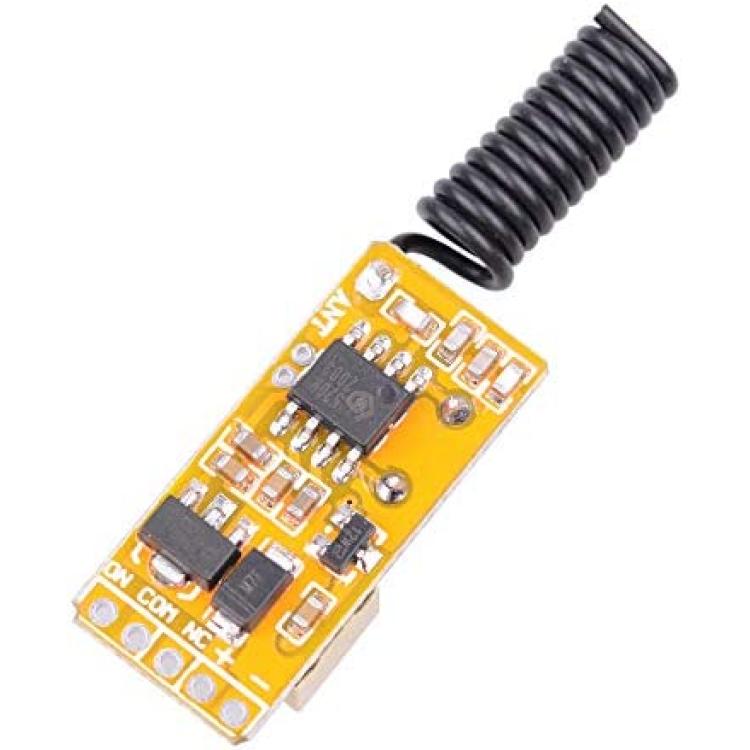

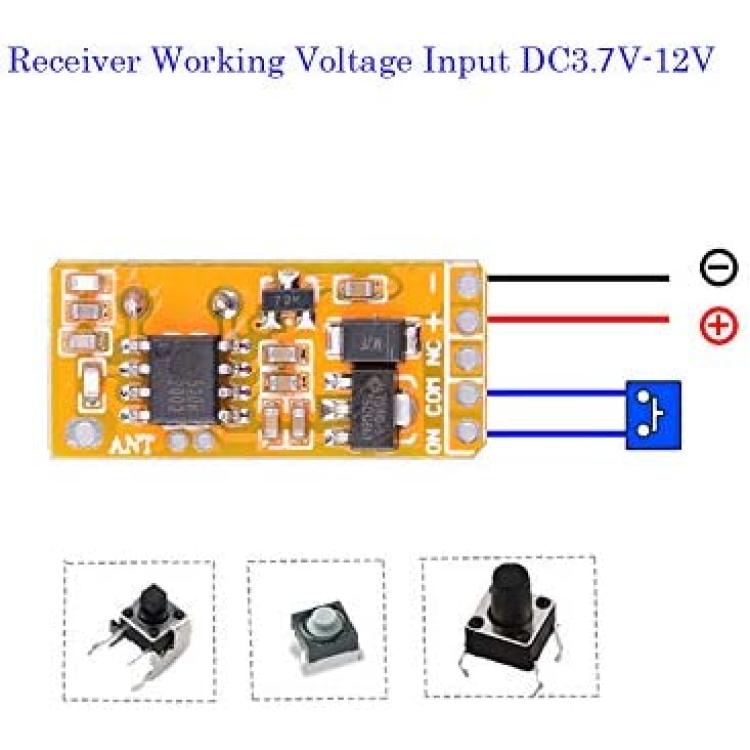

Normally Open Port (NO) Common Port (COM) Normally Close Port (NC) Input DC3.5V-DC12V Output 0V Switching Value

Momentary---Press and hold relay On; Release relay Off.(one channel switch need one button remote)

Toggle----Press relay On; Press same button again relay Off .(one channel switch need one button remote)

Latched----Press relay On; Press other button relay Off . ( one channel switch need 2 buttons remote )

Delay time : Press remote control button, the corresponding relay actuates and keeps working until the time out.

Learning method?Input 12V for the Receiver , Connect the Learning Dot, The receiver Led indicator ON. Press remote button A 1 time, Led indicator flash for 1 times , Then Press remote button B 1 time , Led indicator flash for 1 times again , it mean learning successfully

Clearing Code:

Connect the Learning Dot and hold on . Until the receiver Led indicator flash for 6 times, it mean Clearing code successfully

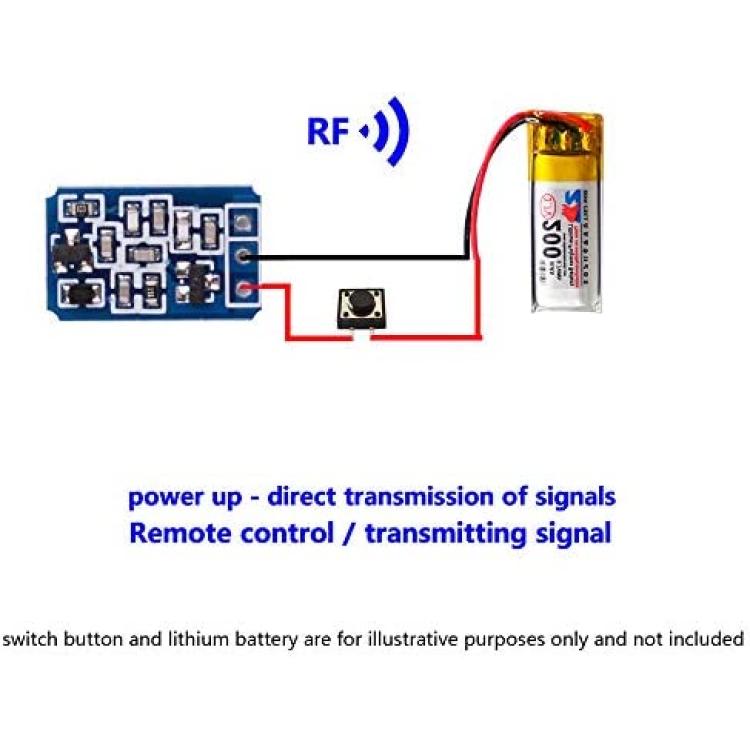

Remote control parameters:
frequency: 433Mhz
Working current: ?12mA
Working Voltage?3.7v -- 9v
Transmission Distance: 10-50 Meters

Package Include:
1 x Receiver(without cover)
1x Transmitter
