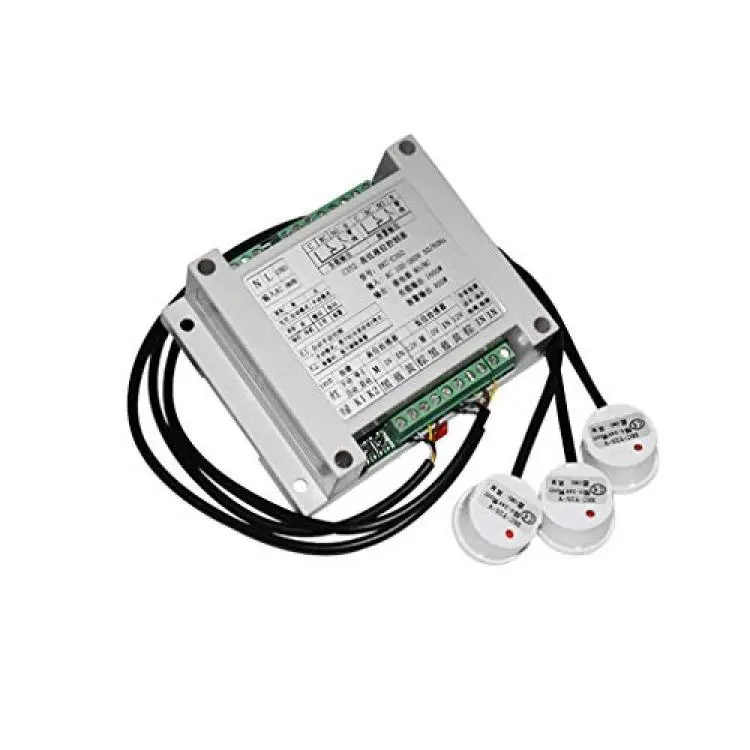

Taidacent Fully Automatic Water Level Controller Water Tank Automatic Filling System Water Pump Controller with Three Non Contact Water Level Sensors
Availability: Pre-Order, Inquiry Price
About this product
*Note:If you are NOT handy and not really very good with electrical stuff, please do not buy this controller, because it needs Electrical Engineering Skills. Please refer to product reviews before using. Our previous customers have posted many helpful reviews.

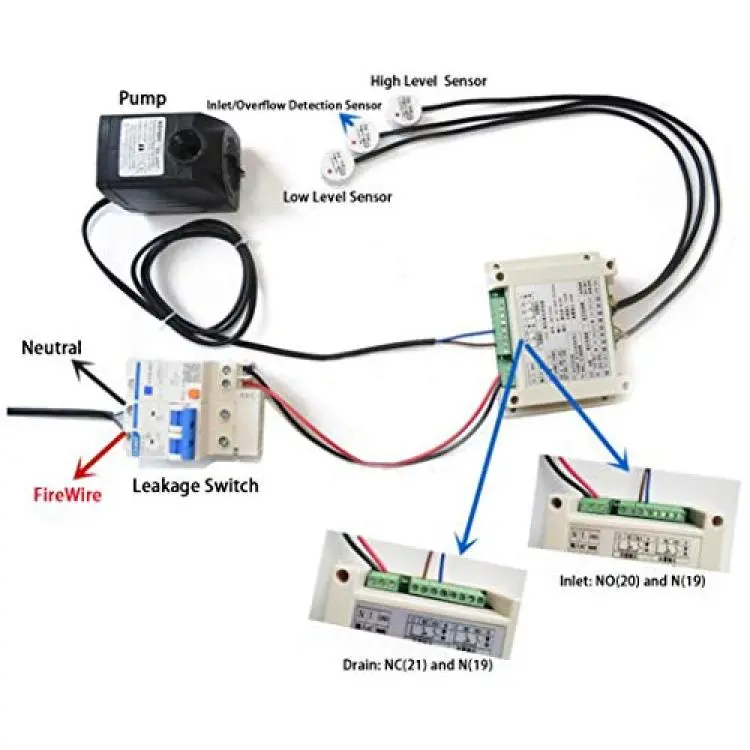

*The default wiring is water ingress detection. If you want the overflow detection function. What you need to do is:1. To have power on the alarm output terminals, the C terminal on the pump output and the C terminal on the alarm output need to be connected. I connected them with a wire. 2. To have the overflow working properly as described in the documentation, the black wire from the sensor needs to be moved and connected to the blue terminal together with the blue wire.
*AC95 ~ 265V wide voltage power supply; Relay dry node output, can be applied to a variety of load control. Control diversification, the pump can be controlled manually or automatically.
*Strong protection, with pump idling protection; the installation is simple and convenient, can be screwed and installed can also be installed on the electrical box track.
*Will come with one paper manual and providing technical support.
Description

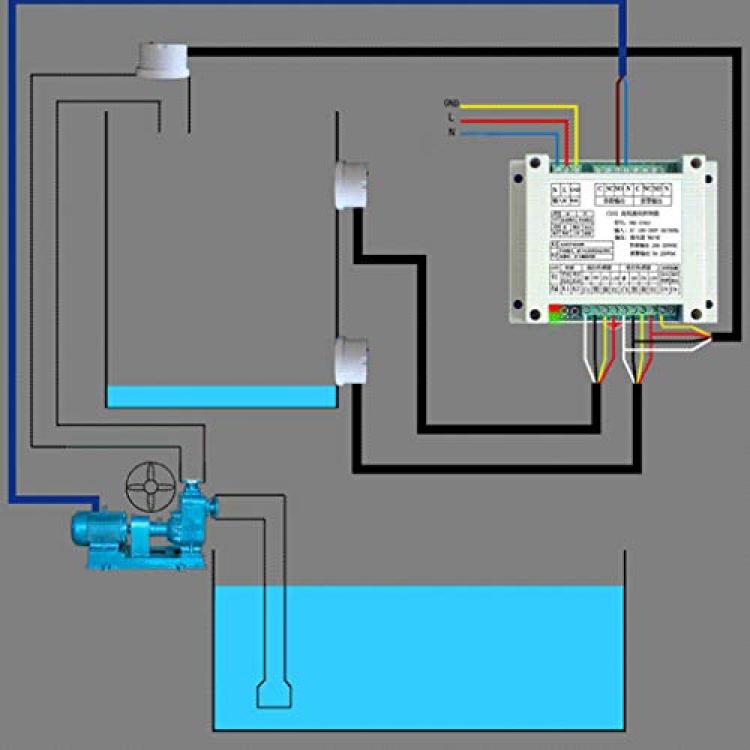

The default wiring is water ingress detection, and if you want the overflow detection function. What you need to do is: Firstly,You need connect the black wire of the overflow sensor to the blue wire of the overflow sensor.(means that the black and blue wire of the overflow need combine together); Secondly, the alarm connects to NO and N.
Input voltage AC100V-220V, 50 / 60Hz
Working voltage DC12V
Working current Working current ? 110 mA, static current consumption ? 20mA
Load power 1.6KW or less (overload or for three-phase pumps need to install AC contactor)
Alarm Output 800W (resistive load) NO/NC output
Input signal:1)Low sensing signal input;
High sensing signal input;
  Pump idling detection signal input;
Sensor probe voltage: DC 12V;
Operating temperature:-10 ~ 75 ?;
Dimensions:115 * 90 * 40
