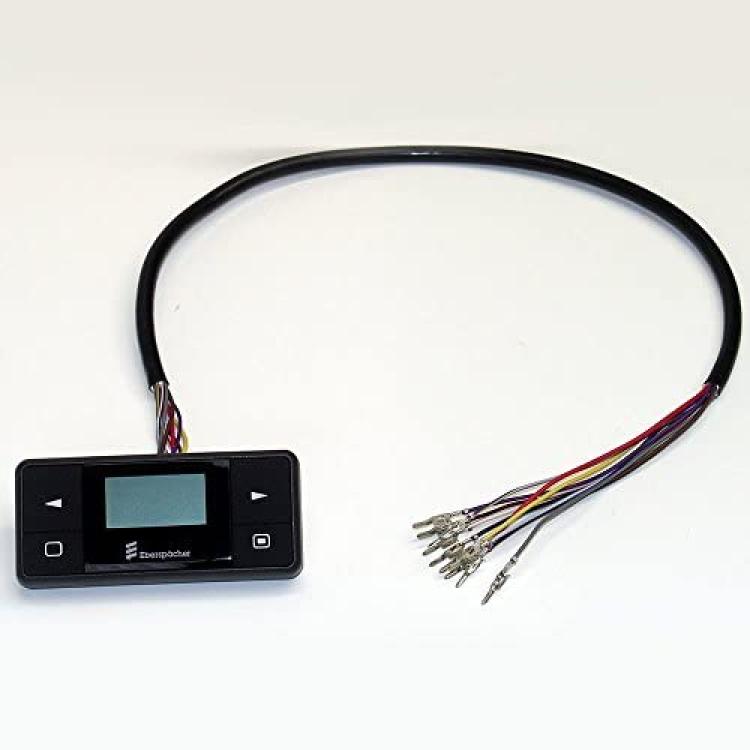

Eberspacher heater Easystart 7 day timer | 221000341500

Eberspacher timer for Airtronic and Hydronic heaters.
Important information
This timer is only compatible with Airtronic heaters fitted with the later generation control unit which are identified by the H-Kit logo as shown in images. This timer will not work with older version Airtronic or Hydronic heaters. Please enquire if in doubt prior to purchasing

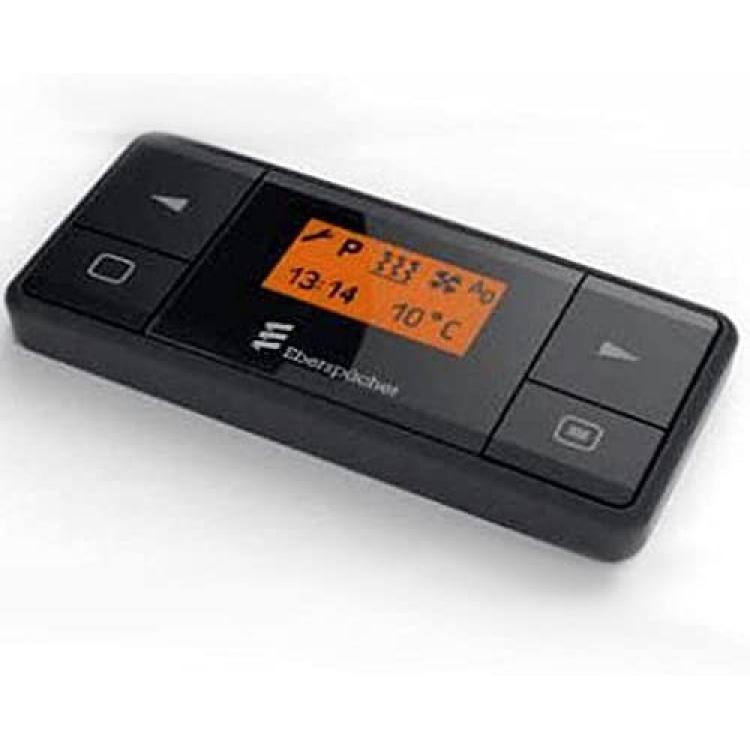

The new Eberspacher EasyStart timer is a 7 day combination timer with diagnostic function, suitable for both Eberspacher Airtronic air & Hydronic water heaters.The new timer is equipped with a diagnostic function enabling you to read & clear your heaters fault codes.

Very compact dimensions:

Width - 82 mm
Height - 37 mm
Depth - 12mm

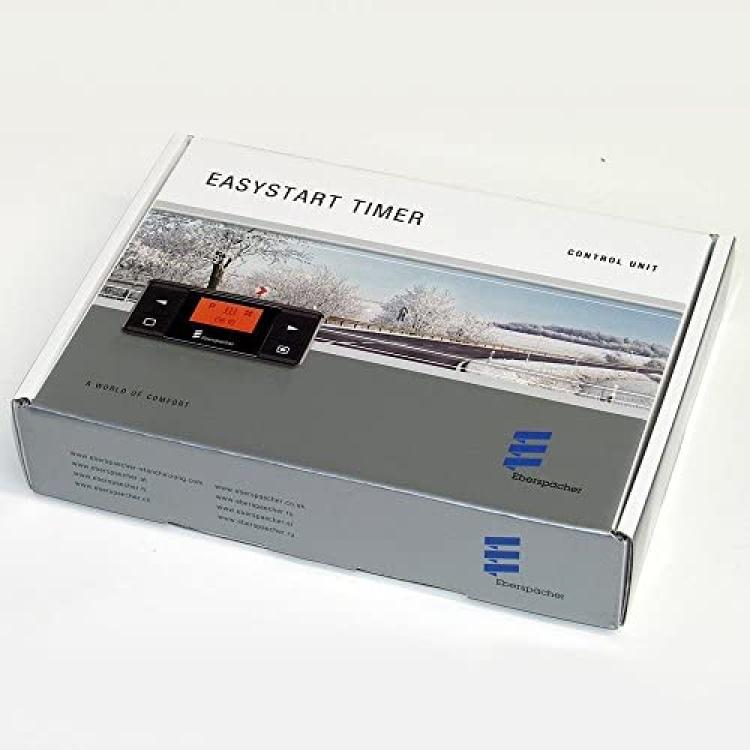

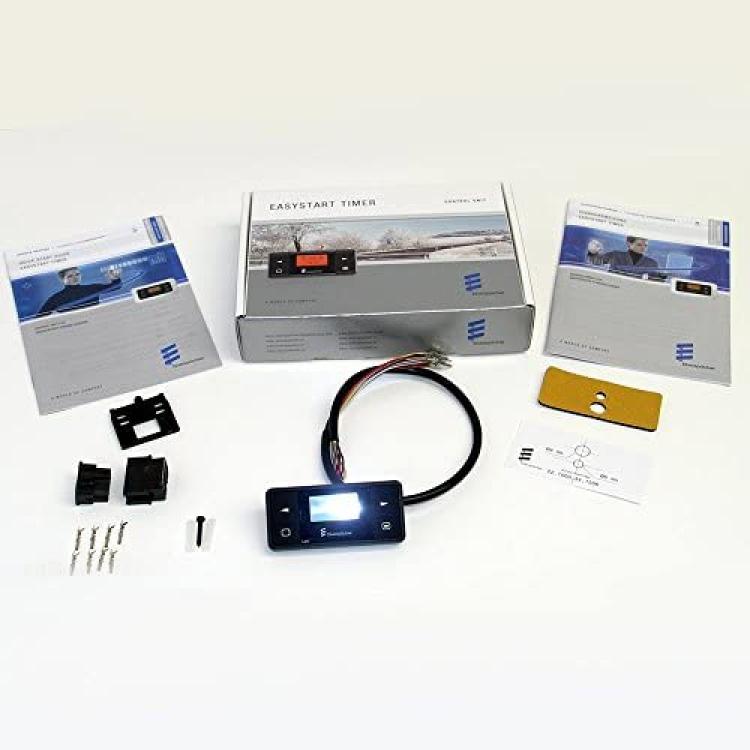

Supplied with the following;
Mounting bracket
Adhesive mounting pad
Electrical connector Housings & terminals
Installation & operating instruction manuals

Genuine Eberspacher 12 month warranty

*Installation note.
For Airtronic installations with the H-Kit logo, make sure the grey and red wire and the brown and white wire to the heater are joined together. As shown in the wiring diagram image above.

Compatible with the following Eberspacher heaters; air & water heaters

Air heaters
Eberspacher Airtronic D2
Eberspacher Airtronic D4
Eberspacher Airtronic D4S
Eberspacher Airtronic D5



Water Heaters
Eberspacher Hydronic,
Eberspacher Hydronic II
Eberspacher Hydronic II C
Eberspacher Hydronic II Comfort
Eberspacher Hydronic M II
