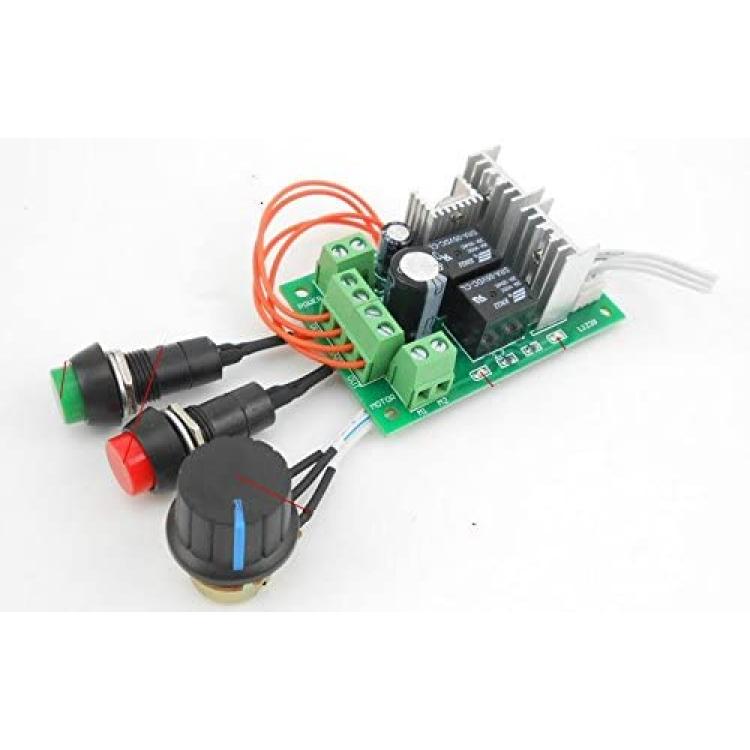

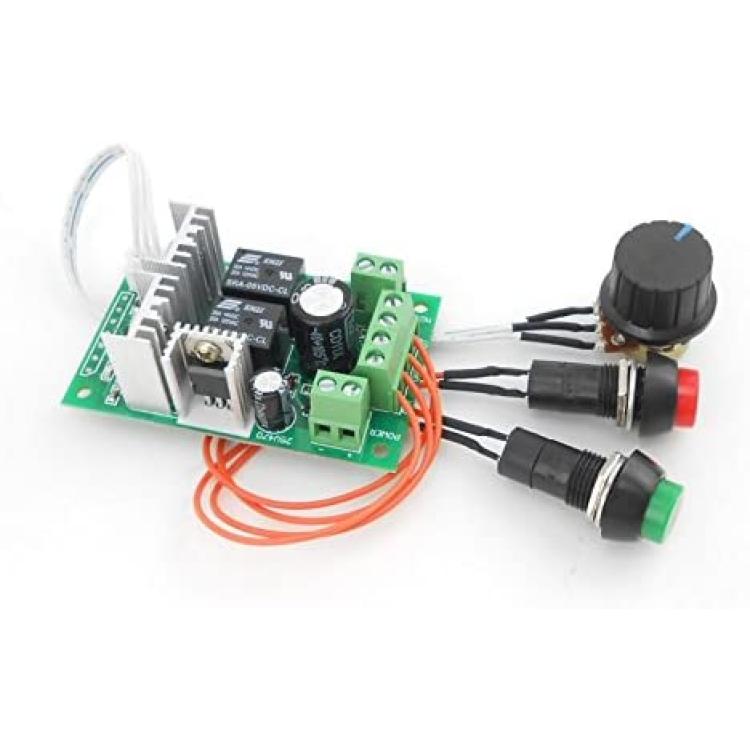

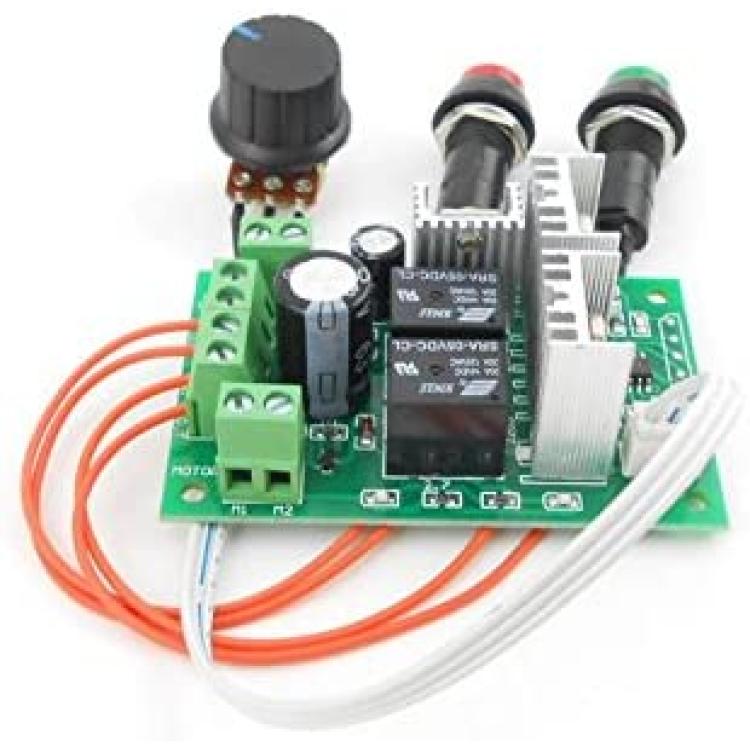

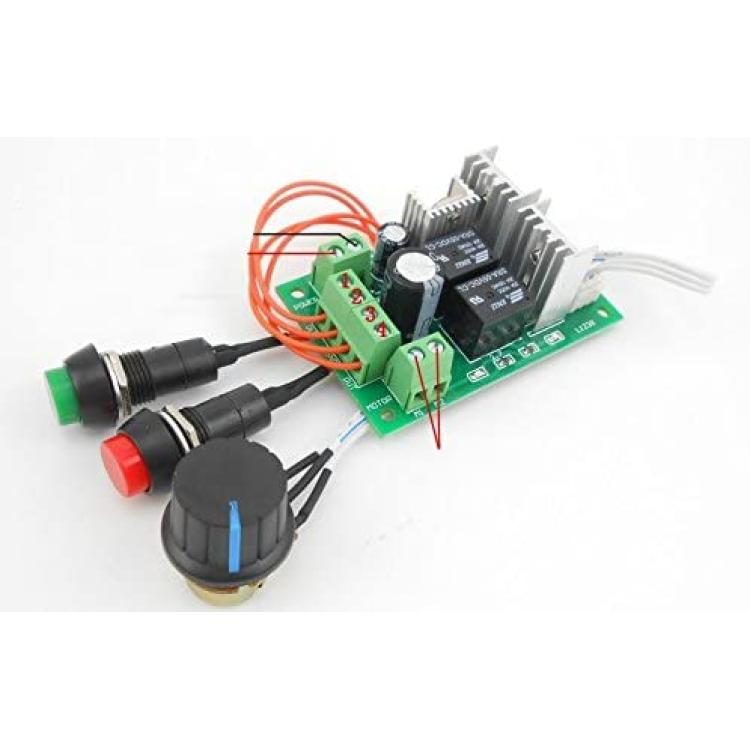

IRUI DC Motor Speed Controller PWM Speed Adjustable Reversible Button Switch Linear Actuator Motor Governor
About this product
*Powered by IRUI advanced technology
*A PWM speed controller, enables you to control the speed of DC motors smoothly
*High-quality potentiometer for speed adjustment, stable performance
*With reversing switch and indicator; high efficiency and low noise
*No lock button switches, the motor will stop if your hand relax
Description
This motor speed controller incorporates a high power with a heat sink and can easily provide a continuous current of 10A to your DC motor or other DC load.
Notice: Before you attempting to wire the controller, make sure power is off.
Specifications:
Product Name: ZW10A-39S PWM DC Motor Speed Controller
Model: ZW10A-39S
Input Voltage: DC 5V-DC30V
Output Current: 0-10A
Sustained Power: 300W
Speed Type: Adjusting Current
Speed Way: potentiometer(0-5V)
PWM Pulse Width Modulation Range: 0-100%
Control Frequency: 15KHZ
Knob Line Length: 20CM

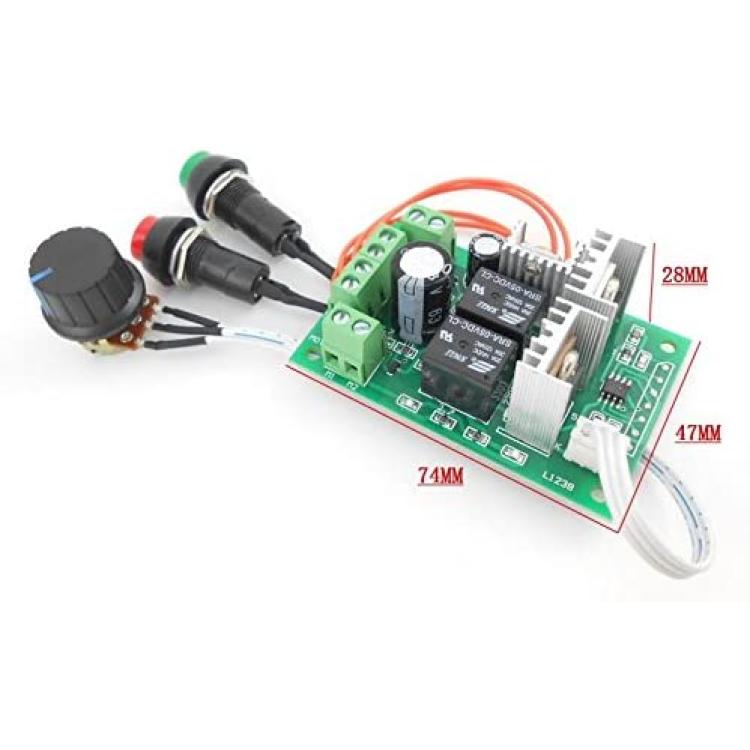

Model Size: 74mm*47mm*28mm(L*W*H)
PCB Board Size: 66mm*39mm(L*W)
Potentiometer Installe Size: 7mm
Net Weight: 85g
Package Includes:1* IRUI Motor Driver Speed Controller
