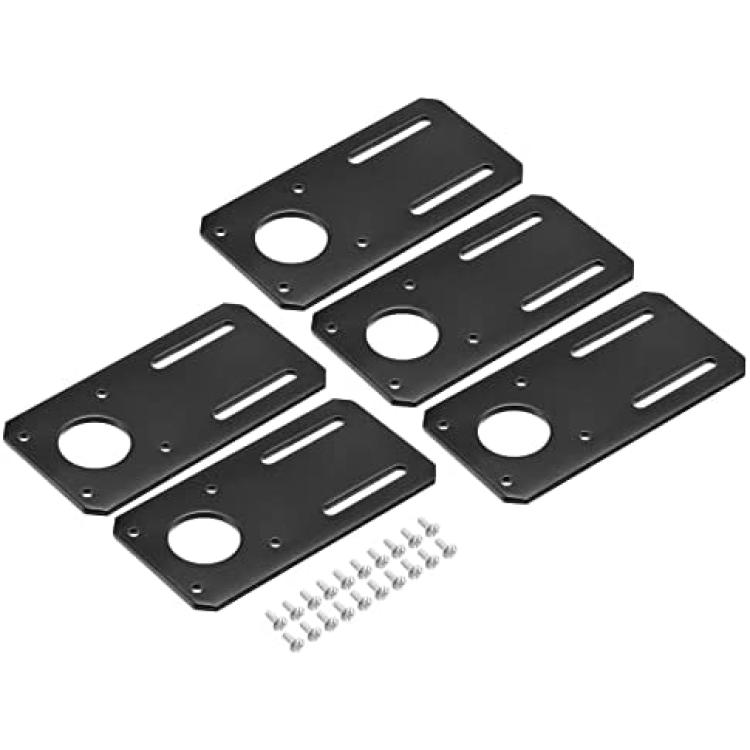

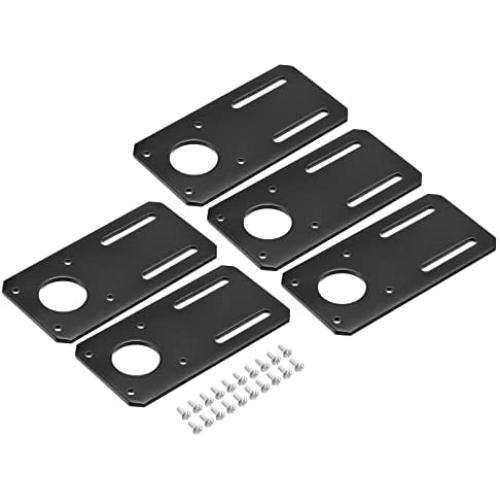

MECCANIXITY Motor Bracket Motor Mounting Holder 100x50mm Black for NEMA 17 Stepper Motor with Screws 5 Set

About this product

*Motor mounting bracket is mainly used for motor, which mainly plays a fixing role. Mounting bracket is a good accessory for stepper motor and is widely used

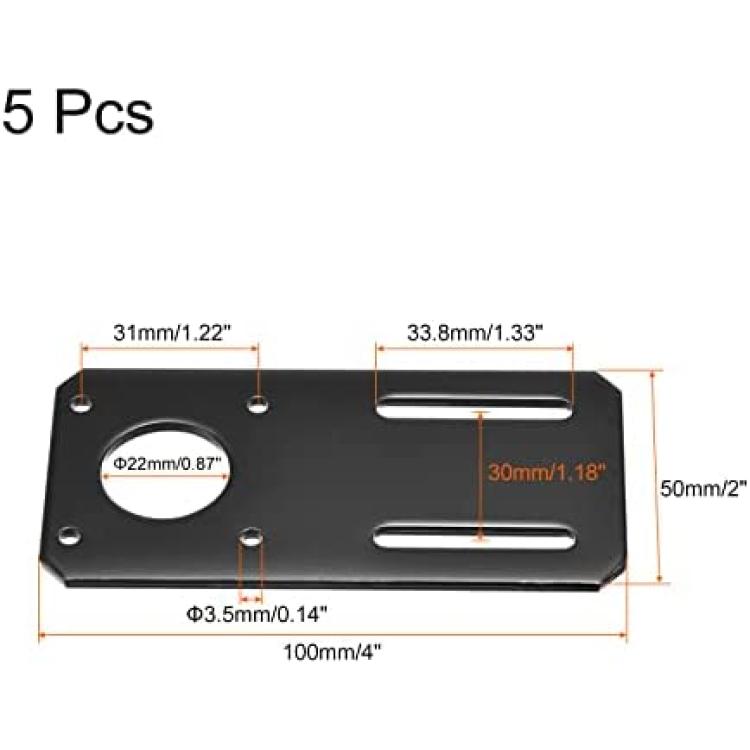

*Motor mounting bracket, is in size of : 100mm x 50mm/4-inch x 2-inch(L*W)total size, 3.5mm/0.14-inch motor mounting hole dia, 31mm/1.22-inch motor mounting hole center distance, 4.2mm x 33.8mm/0.17-inch x 1.33-inch bracket mounting hole size, 30mm/1.18-inch bracket mounting hole center distance, 22mm/0.87-inch shaft hole dia

*Easy to install and operate, is a good replacement; Small size and lightweight; Steel material, durable and long service life

*Steps of installation: 1. Select motor mounting bracket of appropriate size; 2. Remove the motor mounting bracket to be replaced; 3. Installation

*Please select the appropriate size of the motor mounting bracket, especially the mounting hole diameter and mounting hole center distance
