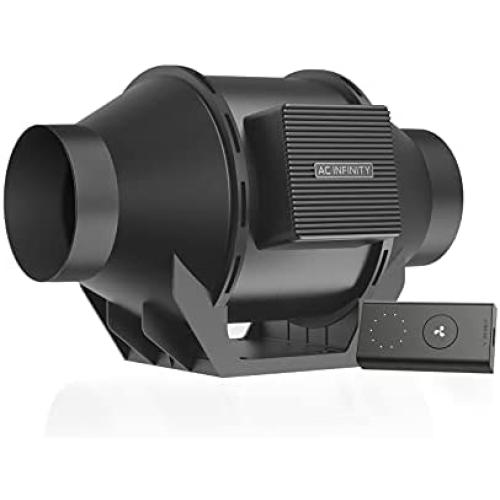

AC Infinity CLOUDLINE LITE A4, Quiet 4” Inline Duct Fan with Speed Controller - Ventilation Exhaust Fan for Heating Cooling Booster, Grow Tents, Hydroponics

Product Description

This inline fan system packs the CLOUDLINEÂ’s core innovations and premium build quality together to bring you a value package. Designed to quietly cool grow tents, rooms, and closets, and provide ventilation in various air circulation and exhaust projects. Containing an inline mixed-flow design, the duct fan can maintain airflow even in high static pressure applications. The motor box containing the fanÂ’s impeller and blades can be detached from the mounted frame for easy cleaning and maintenance. Complete kit includes one inline fan unit, one speed controller, UIS to 4-pin Molex dongle, installation manual, and all necessary mounting hardware.

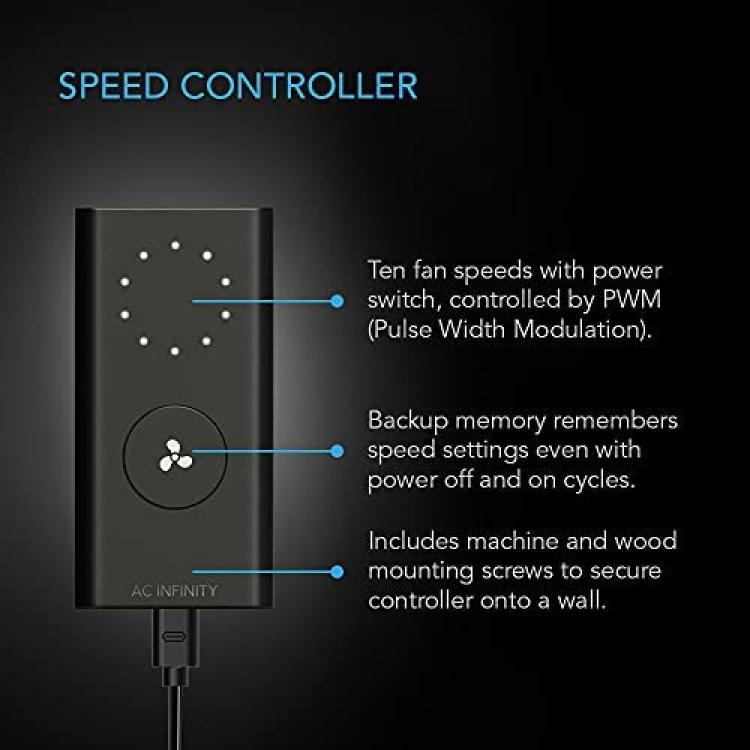

Precise Speed Controller

The speed controller enables you to set the duct fanÂ’s speed to optimal noise and airflow levels for various environments. This inline fan is equipped with the CLOUDLINE SeriesÂ’ same EC-motor that is precisely controlled using PWM (Pulse Width Modulation), which enables it to run smoothly at extremely low RPM speeds without generating motor noise. Ten speed options are available with power switch and backup memory. This model can be connected to the following smart controllers to share the same programming and power source as other EC-motor CLOUDLINE fans:

· B-Series Temperature Controller

· T-Series Temperature and Humidity Controller

· CONTROLLER 67

Quiet and Energy-Efficient Design

The inline fan features a mixed flow design using a stator blade and dual hydrodynamic wind circles. This gives it a high static pressure rating, enabling it to deliver airflow even in applications where air movement is being restricted. The motor houses dual ball bearings rated at 67,000 hours which allows the duct fan unit to be mounted in any direction. In addition, the inline fan is crafted with a plastic mounting base to diminish noise as a result of fan vibration. The unit is IP44 rated to be highly resistant to dust and liquids and performs well even in harsh environments.

Applications

This quiet inline fan system is most found in hydroponic grow tents and rooms to provide cooling and ventilation for plants. Its low noise and advanced control features make it fit for bathroom and attic settings, as well as cooling AV equipment rooms, closets, racks, and cabinets.

An inline fan value package designed to affordably ventilate hydroponic grow rooms, exhaust odors, and transfer heating and cooling.

The CLOUDLINE LITE Series is a reimagination of what makes the flagship CLOUDLINE fan a favorite among grow tent users. While keeping the same build quality and innovations, we've reconfigured our inline fan with some physical changes and slightly lower level performance to achieve affordability. We've also updated our controllers to keep up with today's connectivity standards, in true AC Infinity spirit.

CLOUDLINE LITE is built with a different finish and plastic mounting base (from S-Series and T-Series' steel mounting base) to make itself accessible to more growers. This plastic base also helps mitigate fan vibration and rattling noise.

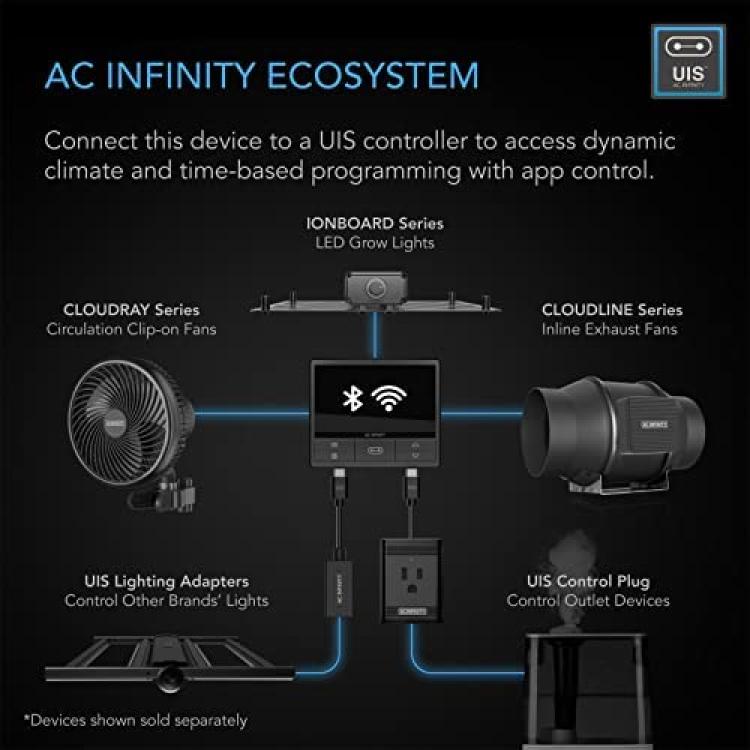

CLOUDLINE A-Series and B-Series inline fans use UIS connectors for a more hassle-free installation, eliminating the need for exact plugging. Its space-saving design allows more connected inline fans to future controllers.

With the use of the included UIS to 4-Pin Molex dongle, you can adapt this fan to existing EC-motor based controllers including the smart controller and the T-Series Temperature and Humidity Controller.
