Concrete Vibrator Vibration Motor 100W AC 110V 3600rpm Aluminum Alloy Vibrating Vibrators for Shaker Table (100W)

Specification

Specification

Features

eatures

Read more

Application

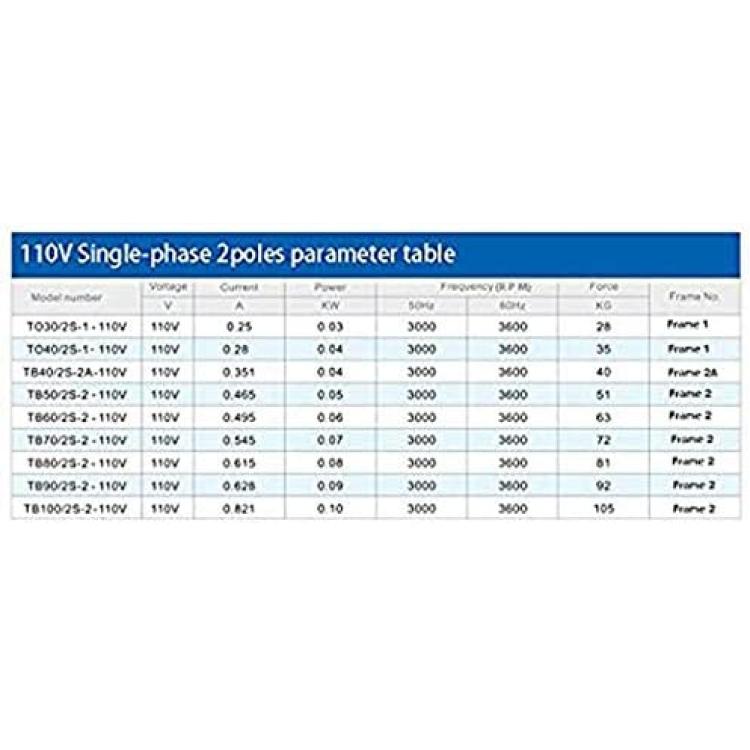

Voltage: AC 110V Single-PhaseCurrent: 0.25/0.28/0.465/0.495/0.545/0.615/0.628/0.821 APower: 30/40/50/60/70/80/90/100WSpeed (R P M)(50Hz): 3000Speed (R P M) (60Hz): 3600Force: 0.3/0.4/0.5/0.6/0.7/0.8/0.9/1.0 kNFrame No.: 30/40W Frame 150/60/70/80/90/100W Frame 2a) Use eccentric block is easy to adjust, multi-voltage, power optional; there are two series of single-phase and three-phase vibration motorb) High temperature resistant brand pure copper enameled wire, full copper winding, the stator adopts special vacuum dip coating process to achieve Class F insulation grade;c) Aluminum alloy case, light weight, fast heat dissipation and low temperature rise;d) The casing is made of thick material, integrated die-casting, strong and vibration-resistant; vibration motor end cover edge is designed with sealing groove, O-ring seal, fully enclosed structure design, optimal dust and moisture proof function;e) TO/TB small vibration motor adopts special oil-resistant and anti-oxidation power supply line, plus anti-vibration outlet protective cover and double protection to prevent long-term vibration damage of cable;f) Thick terminal, anti-oxidation and anti-rust coating connecting piece, fixed casting junction box, waterproof, insulated and good performance;The stator use high temperature resistant pure copper enameled wire, full copper winding, and adopts special vacuum dip coating process, Class F insulation grade;The eccentric block is easy to adjust, multi-voltage, power optional, Meet a variety of work needs;The bearing is import, precision, low noise, wear resistance and long using life;Thick terminal, anti-oxidation and anti-rust coating connecting piece, fixed casting junction box, waterproof, insulated and good performance;The small-scale vibration motor is widely used in mining, metallurgy, coal, electric power, construction, chemical, medical care, casting, food, powder spraying equipment, sieve powder, grain machinery and so on.
