Stirtime Model SRT-010 5V-15V 2A DC Motor Speed Controller PWM with Adjustable Timer, Removable Mounting Bracket, LED Start and Stop Indicators, Made in the USA
About this product
*SRT-010 IS UNIQUELY DESIGNED TO CONTROL DC MOTOR SPEED AND TIME. The timer can be easily disconnected when not needed and unit used as a standard controller.
*CONTROLLER EQUIPPED WITH AN ADJUSTABLE TIMER (0-45 min range) for use in a wide variety of applications. The unit uses using a potentiometer with a switch function (See DIAL POSITION TIME REFERENCE TABLE Picture #2)
*ADJUSTABLE PULSE WIDTH MODULATION (PWM) using a potentiometer with a switch function. Green/Red LED indicator. Green LED indicates power is ON. Red LED indicates the set time has expired.
*DC POWER SUPPLY VOLTAGE 5V-15V with maximum output current 2A and maximum output power 30W. Duty cycle adjustable 0%-100%. Controller is equipped with an automatically resettable fuse 2A.
*PROUDLY MADE IN THE USA. See Operating Instructions in Product Description
Description
SRT-010 DC Motor Speed Controller allows the user to control the speed of a DC motor using a PWM (Pulse Width Modulation) and also allows the user to select a working time interval. The timer can also be disconnected and used as a regular controller.
TECHNICAL PARAMETERS:
Input supply voltage: 5V-15VDC
The maximum output power: 30W
The maximum output current: 2A
Duty cycle adjustable: 0%-100%

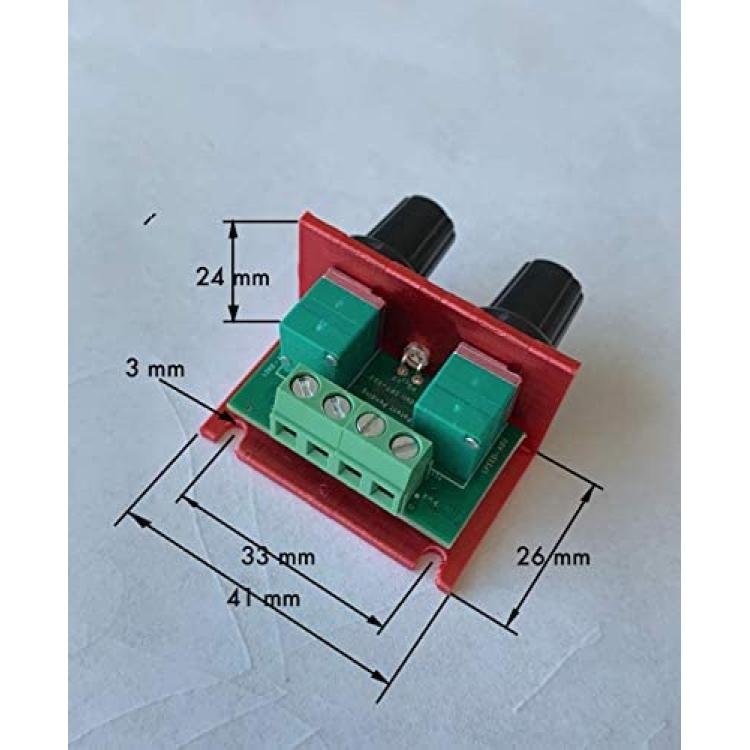

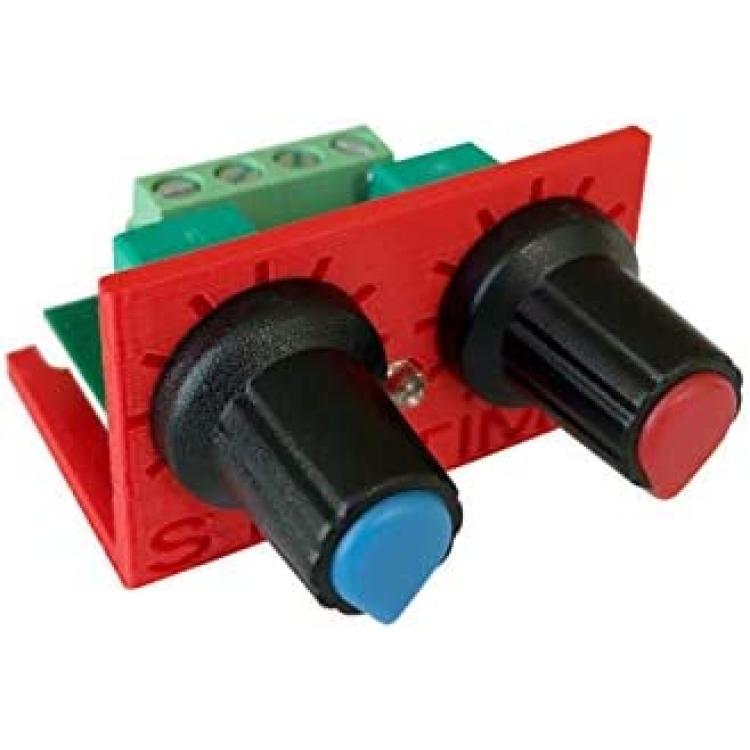

Controller total size: 41 x 26 x 24mm/1.6”x 1”x 0.94” (including bracket)

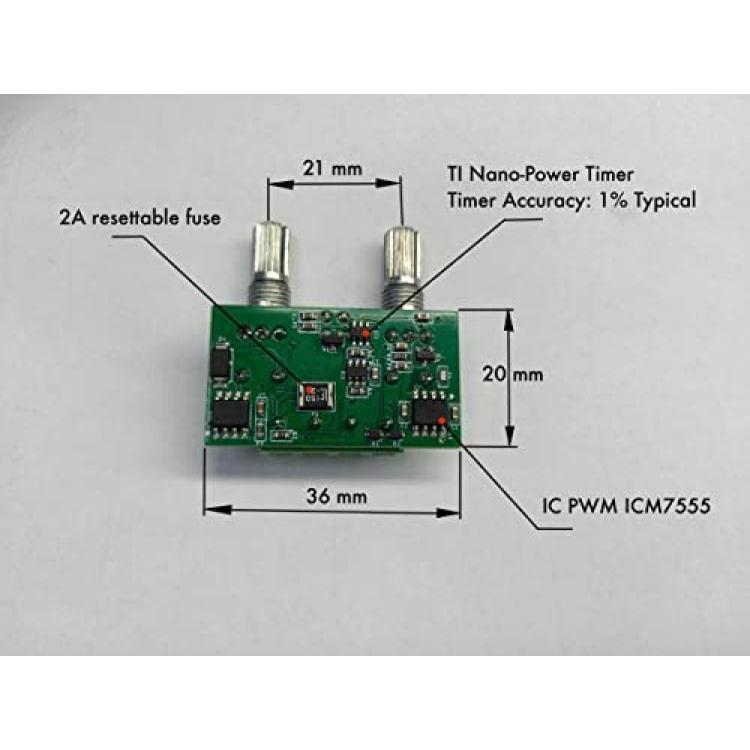

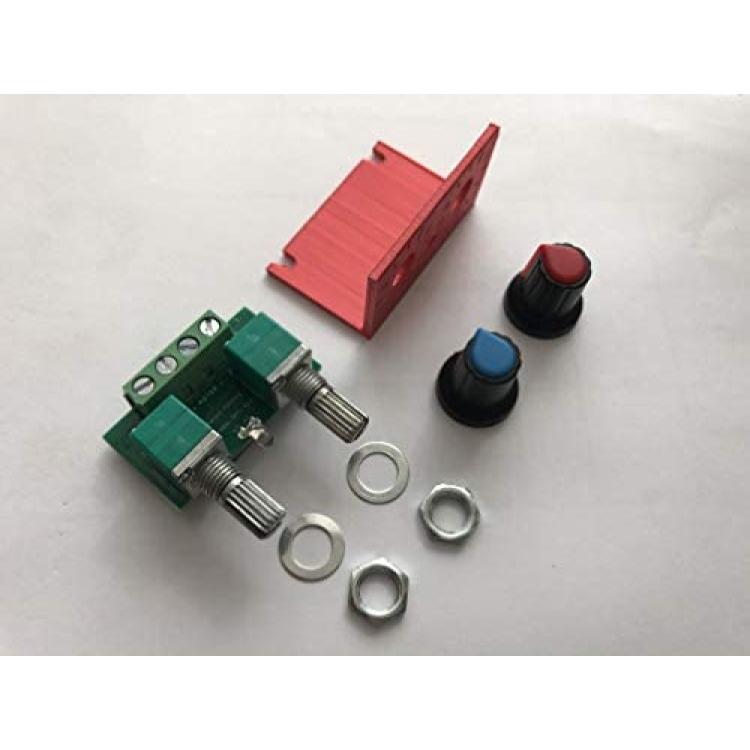

PCBA size: 36 x 20mm/1.4”x 0.8” (can be use without bracket “panel mount” type)
OPERATING INSTRUCTIONS:

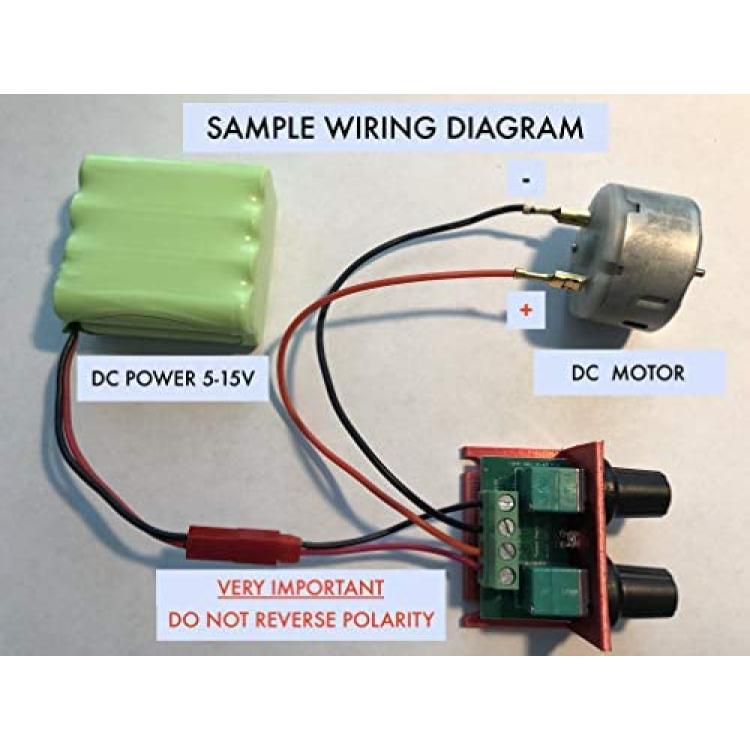

1. Connect DC power and DC motor (or DC load) to the four terminals on the connector exactly as indicated on Wiring Diagram picture #3.

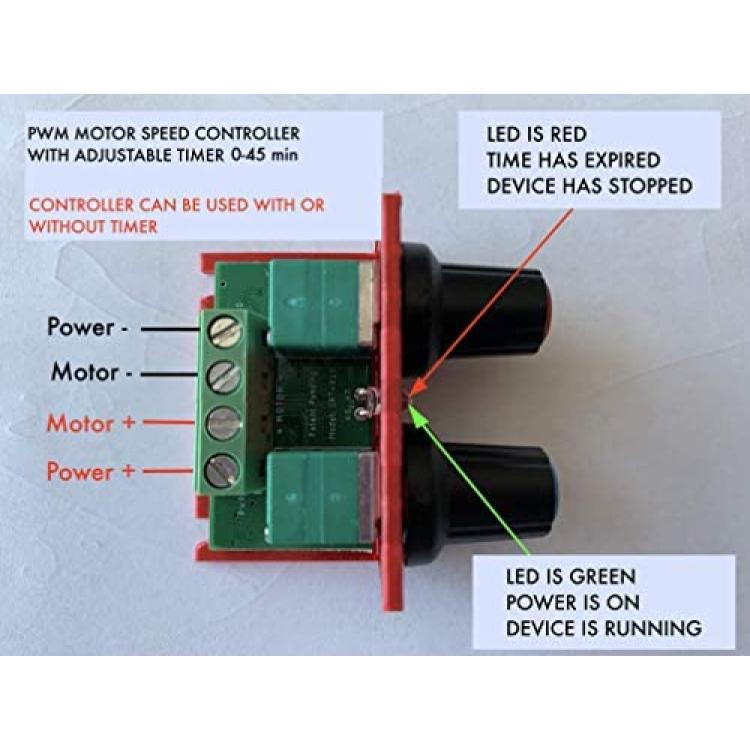

2. Rotate the blue speed potentiometer knob clockwise until you achieve the required motor RPM. The clock dial on the bracket can be used as a reference target. The LED will be Green indicating power is ON.
3. The controller is equipped with a timer which can be operated through the potentiometer in two different modes:
Mode 1: When timer is OFF. Red timer potentiometer switch is OFF.
Mode 2: With timer ON follow Step 1-3 below.

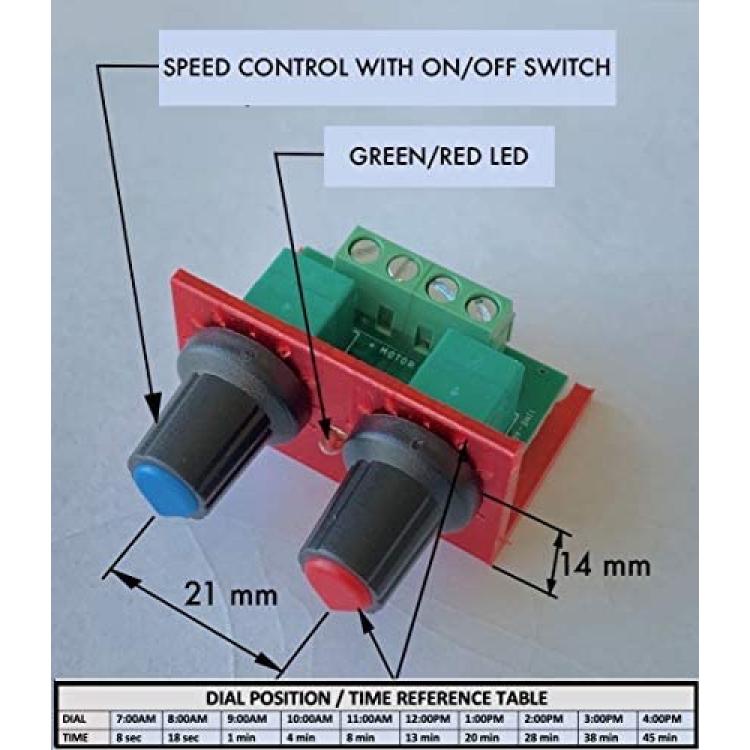

1. Rotate the red timer knob clockwise using the clock dial on the bracket as a reference. Adjustable timer is not linear. It is recommended to use the Dial Position Reference Table in picture #2.
2. Rotate the blue speed potentiometer knob clockwise until you achieve the required motor RPM. The LED will become Green.
3. When the time interval is expired the motor will stop and the LED will become Red.
SPECIAL ATTENTION:
1. THE TIMER CANNOT BE CHANGED DURING ROTATION OR WHEN THE GREEN LED IS ON. Time interval can only be changed when the blue speed potentiometer knob is switched off.
2. Adjustable timer is not linear. It is recommended to use the Dial Position Time Reference table in picture #2.
