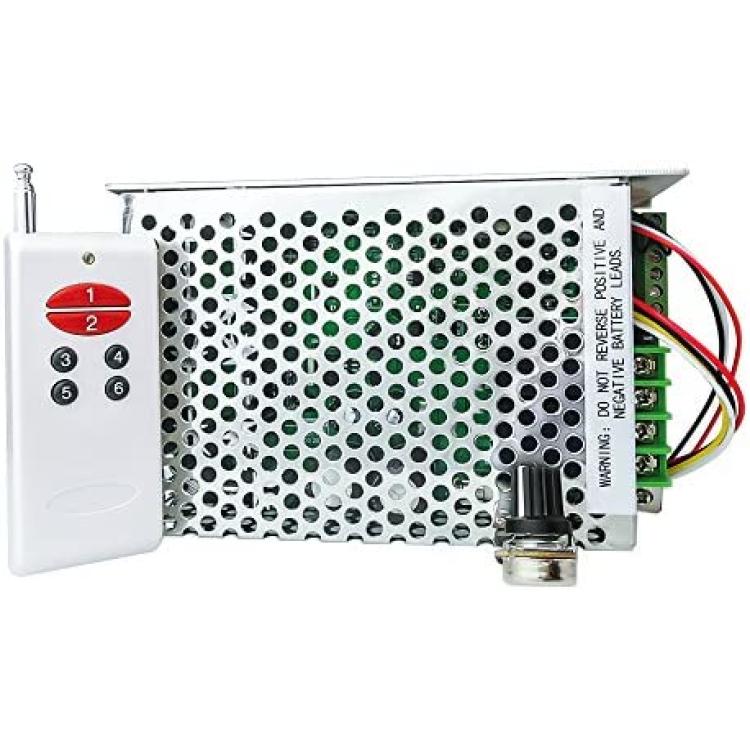

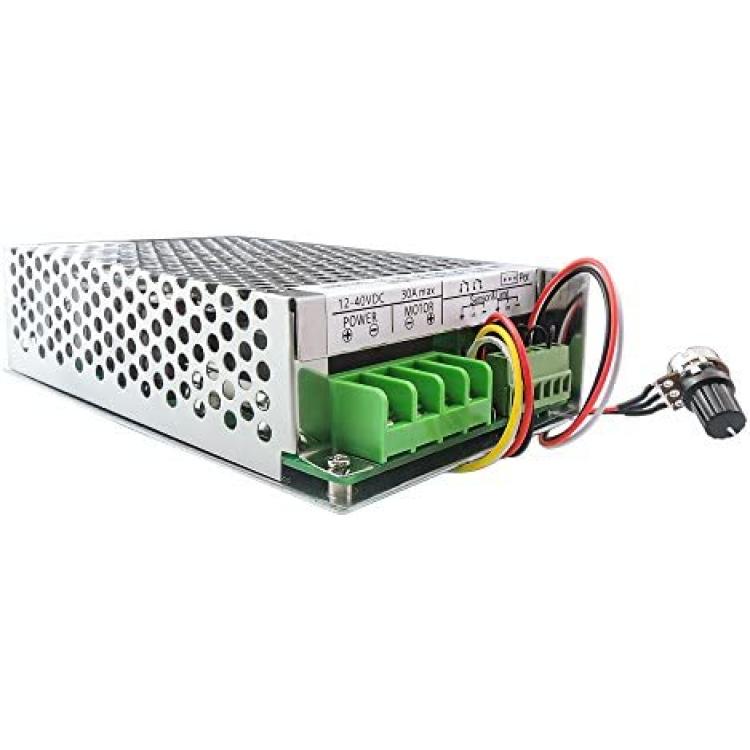

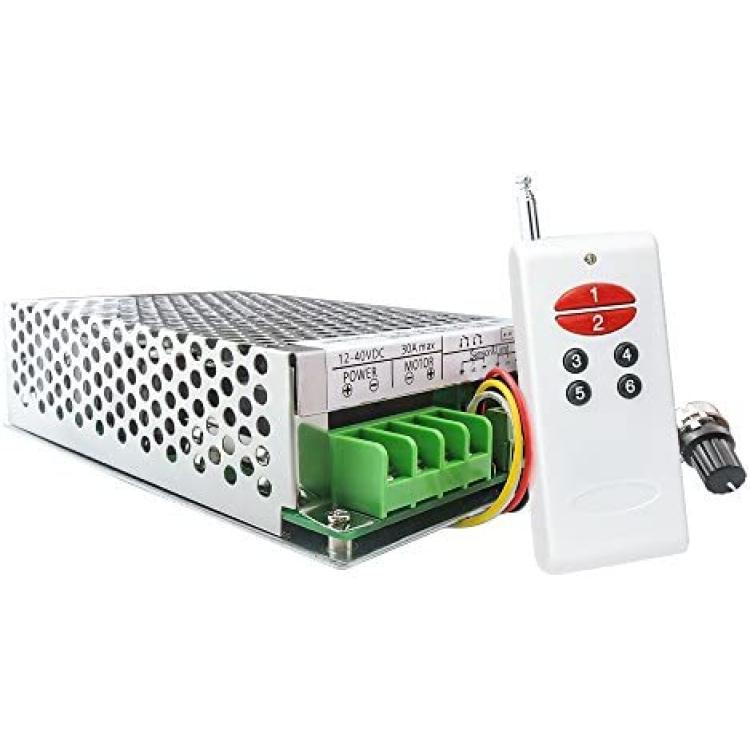

uniquegoods 12-30V MAX 30A DC Motor Speed Control with Wireless Remote Controller Adjustable Switch Reversible Driver Governor Two Way Version + Limit Function
Product Code: MM24813
Availability: Pre-Order, Inquiry Price
About this product
*Power: max 250W cont. for 12V max 350W cont. for 24V
*Provides variable speed capability for DC motor
*Provides limit function
*Achieves start, stop, speed up and down, positive and reverse rotation RC controlled
*Connect mechanical stroke switch (micro switch) to achieve limit function
Description
SPECIFICATIONS:
Input Voltage: DC 12-30V.
Power: max 250W cont. for 12V
max 350W cont. for 24V
DC power supply >=1.3 times of the motor power
Max Output Current: 30A (Equipped with 30A fuse)
Power LED: System starts normally, the two LEDs flash at the same time.
When the motor is in stop status, the LED D3 flashes once per second.
Direction LED: In operation, push Key 1 or Key 2 of remote control (control direction of motor), the LED D4 or D3 lights up.
Potentiometer: 10K/100k

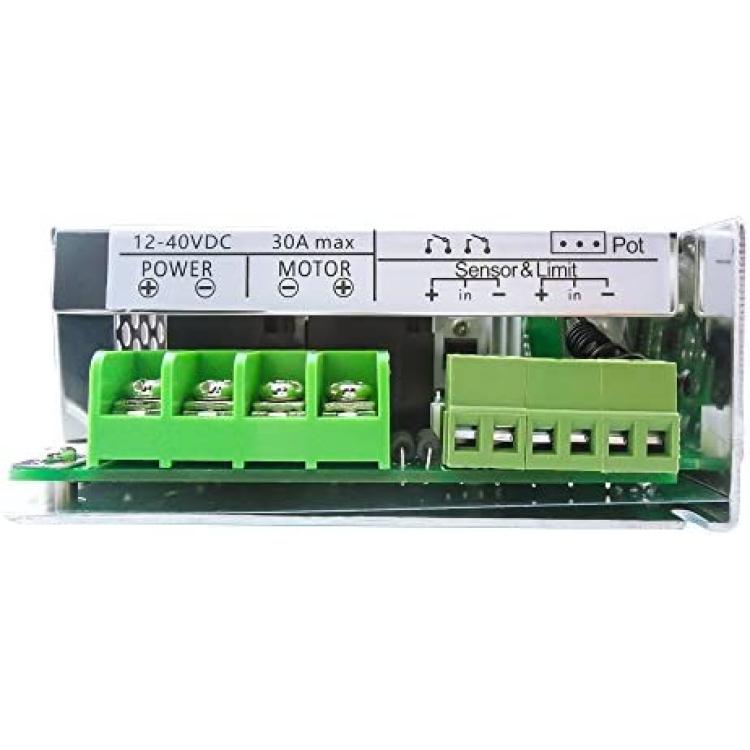

Signal Input Pin: (with 4P connecting lines): connect two manual switches to control the direction of motor
Limit Input Pin: Connect mechanical stroke switch (micro switch) to achieve limit function;
Connect photoelectric switch; proximity switch; hall switch (NPN normal open type) to achieve the limit function
Remote Control Key Function:
Key 1: Positive Key 2: Reverse Key 3: Stop
Key 4: Speed Up Key 5: Control 2nd motor Run/Stop
Key 6: Speed Down
Item size: 160mm x 92mm x43mm (6.3 x 3.6 x 1.7in)
Remote Control Size: 36mm x 84mm x 16mm ( 1.42 x 3.3 x0.7in)
Net weight:420g£¨0.93lb£
An appropriately rated fuse is recommended to ensure safe operation.
Operating instruction:
Before you attempting to wire the controller, make sure power is off.
WARNING: DO NOT REVERSE POSTIVE AND NEGATIVE POWER LOADS.THIS WILL DAMAGE THE CONTROLLER.
1. Connect wires refer to the ¡°Instruction Manual¡±
2. Turn on the power, use the RC controller or adjust the potentiometer to achieve the function.
3. The LED indicates the power up and the speed of motor.
Package Including:
1 x DC Motor Speed Controller
1 x Remote controller(Without 23A 12V Battery)
1 x potentiometer
1 x 4P connecting lines
1 x Instruction Manual
