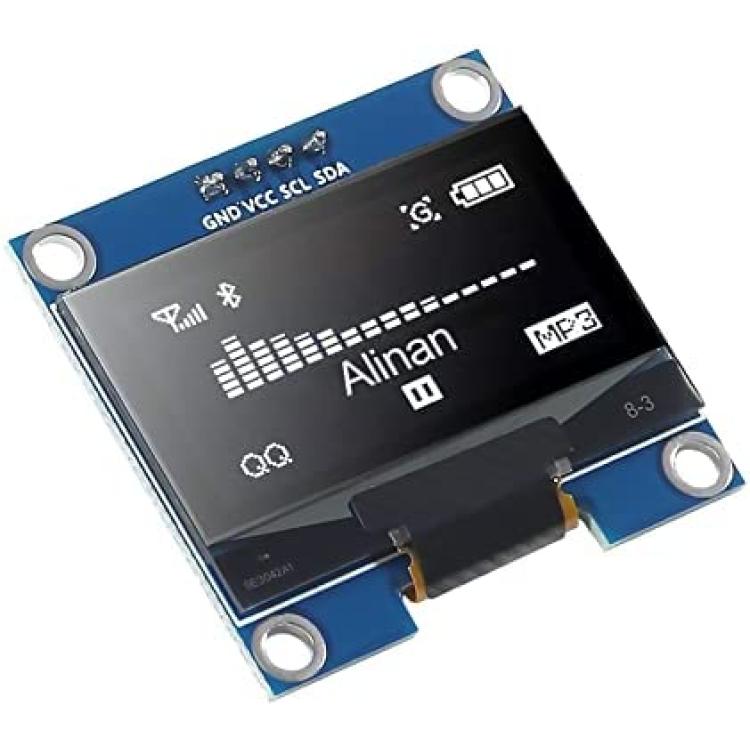

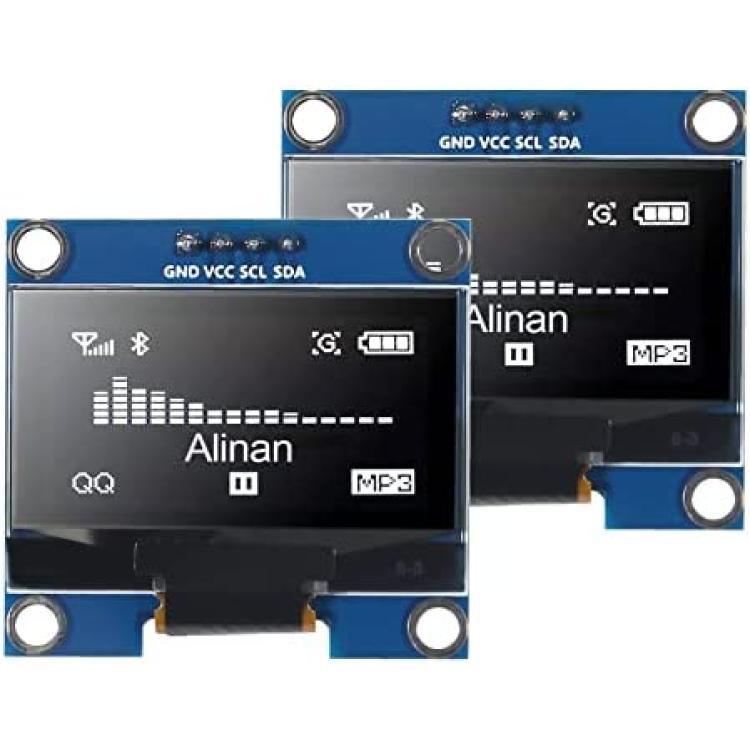

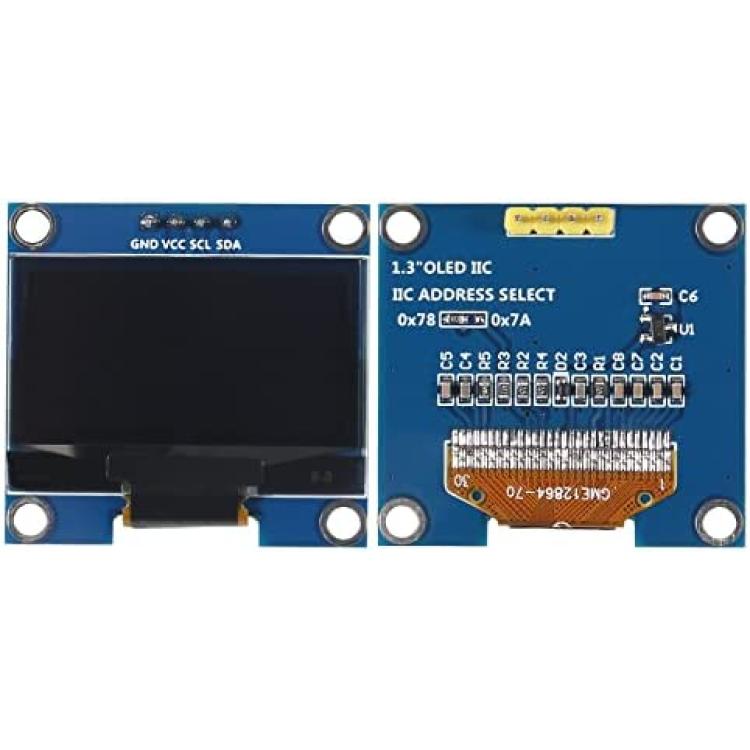

Alinan 2pcs OLED Display Module I2C 4pin 128X64 1.3 Inch Display Module SSD1106 White for R3 STM
Description
Feature:
Display Mode: Passive Matrix
Display Color: White
Drive Duty: 1/64 Duty
Outline Drawing: 128 * 64

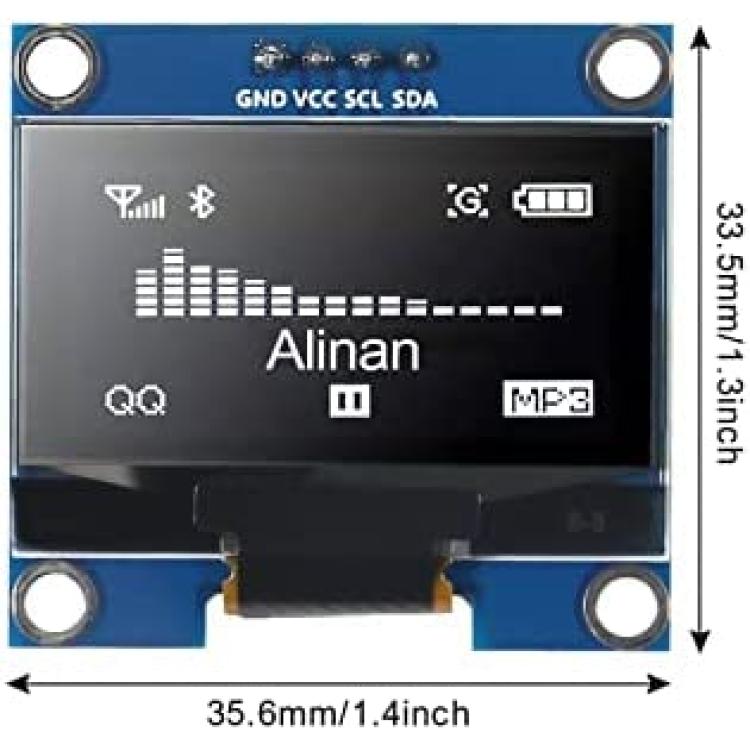

Panel Size: 34.5 *23.0 * 1.4 (mm)
Active Area: 29.42 * 14.7 (mm)
Pixel Pitch: 0.23 × 0.23 (mm)
Pixel Size: 0.21 × 0.21 (mm)
Working Temperature: -30°C~70°C
VCC: 3.3 - 5V
GND: Ground
SCL: Serial Clock
SDA: Serial Data
