ODESC3.6 Optimizes Brushless, Motors Wiper Motor High-power Dual-drive Controller FOC BLDC Based on ODrive
About this product
*Secure Working: There is thermal silica gel between MOS and anodized heat sink, which will further protect PCBA components.
*Alloy Resistor: Equipped with high accuracy alloy resistor to ensure accurate current sampling as well as long service life.

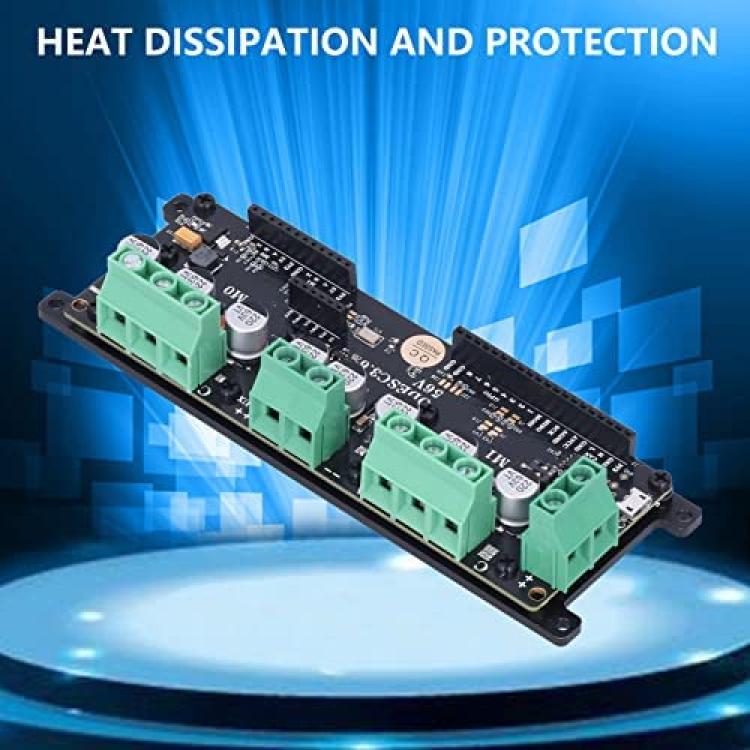

*Heat Dissipation: PCB integrated high current opener, lifting column, CNC custom heat sink, continuous stable overcurrent and more efficient heat dissipation.

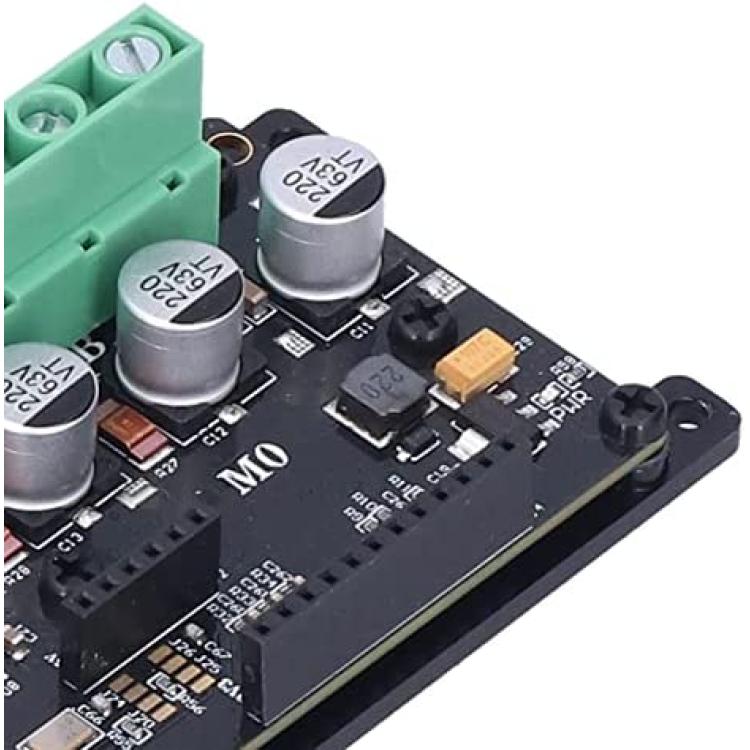

*Good Capacitor: Adopting 220uf 63V electrolytic capacitor to have the excellent filtering effect and stable work performance.
*Volt Protection: The programmable voltage protection can prevent battery from over discharge and also promises safe working.
Description
Specification:
Item Type: Motor Control Module
Material: Phenolic Resin + Brass
Hardware Version: DDESC3.6 Dual Drive
Printed Circuit Board Description: 4 layers, 4 x 20z = 8oz
Applicable Voltage: 8-56V
Current Parameters: 50A holding block, 120A peak.
Support Encoder: Incremental encoder, absolute encoder, Hall sensor, AMT102, AMT103, TLB5012, AS5047.
Communication Interface: USB protocol open sourcing (PC, for Raspberry Pi, ROS), UART (input device), PWM (RC remote control), STEP DIRECTION (PLC), GPIO, CAN, ANALOG INPUT.
Movement Modes: Speed mode, torsion mode, current mode, position mode, trajectory mode, etc.Â

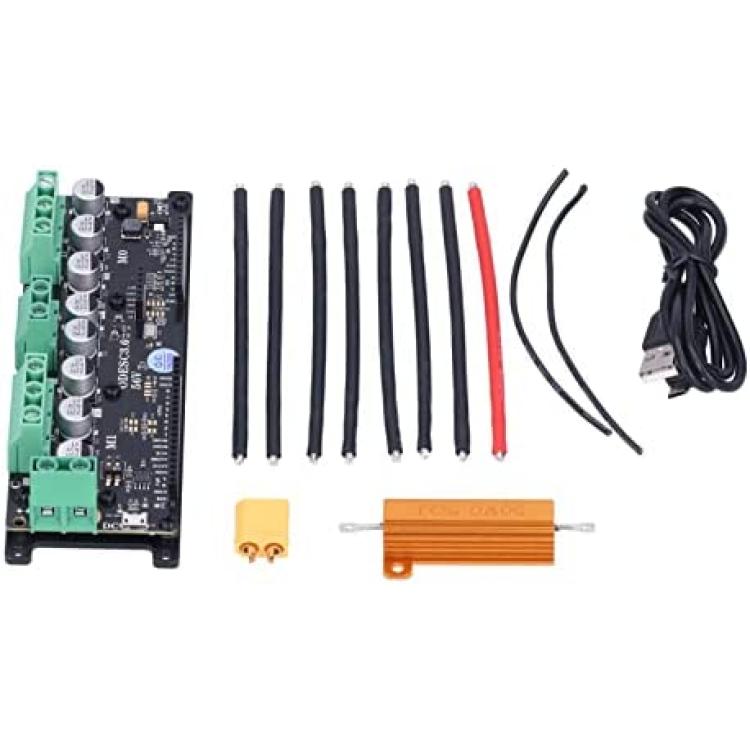

Package List:
1 x Drive Board
1 x Power Resistance
1 x XT60 Male Connector
1 x USB Data Cable
2 x 20AWG Resistance Wire
6 x 12AWG Motor Wire
2 x 12AWG Power Cord
