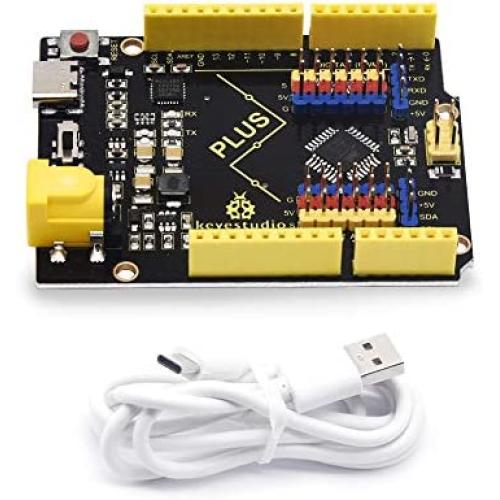

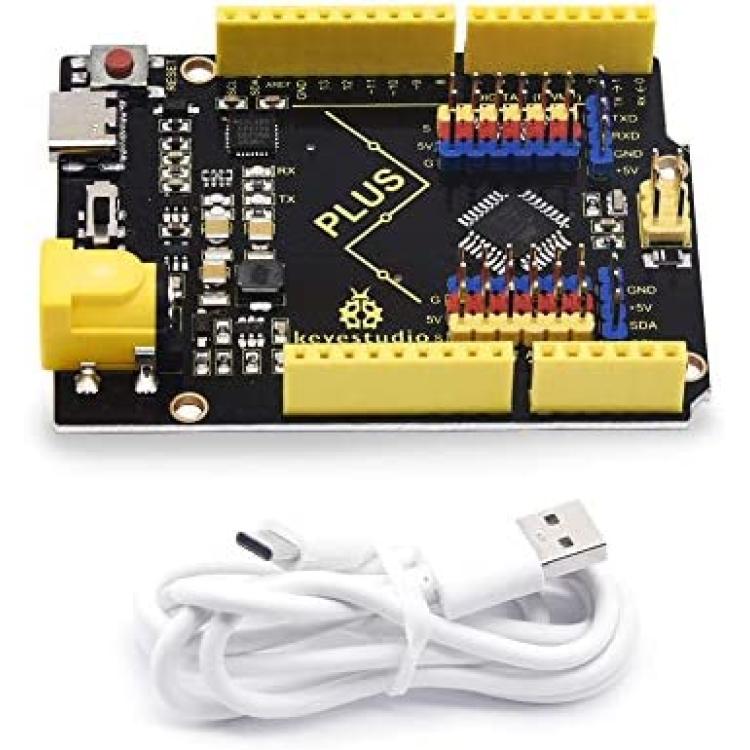

KEYESTUDIO Plus Board for Arduino UNO R3 with Type-C USB Cable, 3.3V 5V 1.5A Output Current, More Powerful Controller Board

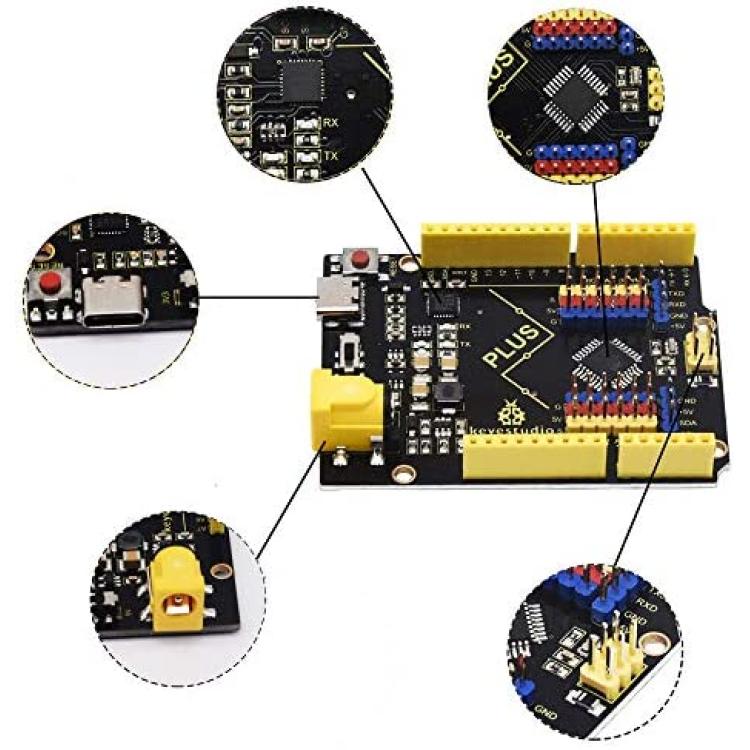

It is a microcontroller board based on the ATMEGA328P-AU, fully compatible with arduino rev3 board.It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 8 analog inputs, a 16 MHz crystal oscillator, a USB connection, a power jack and a reset button.It breaks out all the digital and analog pins in the form of 3PIN headers (G, 5V, S). S pins correspond to all 14 digital pins, 8 analog pins. G pins for Arduino ground. V pins for VCC. You can control the voltage of VCC via a slide switch for 5V or 3.3V.When switched to 5V, level on a serial communication port is 5V, the voltage of pins is 5V. When switched to 3.3V, level on a serial communication port is 3.3V, the voltage of pins is 3.3V.It also breaks out 4PIN headers for serial communication and IIC communication. So it is easier to connect external sensors and modules.Flash Memory: 32 KB (of which 0.5 KB is used by the bootloader)SRAM: 2 KB (ATMEGA328P-AU)EEPROM: 1 KB (ATMEGA328P-AU)Clock speed: 16MHzOn-board LED pin: D13 comes with a USB cable 1m This board with headers attached fits nicely into the arduino boards. Another great Arduino alternative. Microcontroller: ATMEGA328P-AUUSB to serial chip: CP2102Working voltage: 5V or 3.3V (DIP switch control)External power: DC 6-15V (recommended 9V)Digital I / O pins: 14 (D0-D13)PWM channel: 6 (D3 D5 D6 D9 D10 D11)Analog input channel (ADC): 8 (A0-A7)Each I/O Port of DC output capability: 20mAOutput capability of 3.3V port: 50mA Serial communication interface: D0 is RX, D1 is TX PWM interface (pulse width modulation): D3 D5 D6 D9 D10 D11 External interrupt interface: D2 (interrupt 0) and D3 (interrupt 1) SPI communication interface: D10 is SS, D11 is MOSI, D12 is MISO, D13 is SCK IIC communication port: A4 is SDA, A5 is SCL 1x keyestudio plus board1x USB cable 1mextra: scan the QR code printed on the back of package box to download the files or source code.
