DEVMO Motor Controller,PWM DC Motor Speed Controller 10-50V 60A High Power HHO RC Driver PWM Controller Module 12V 24V 48V 3000W Extension Cord with Switch
About this product
*operating voltage range is DC 10-50V, max rated current is 60A, control power range is 0.01-3000W, working temperature range of -20℃-40℃.

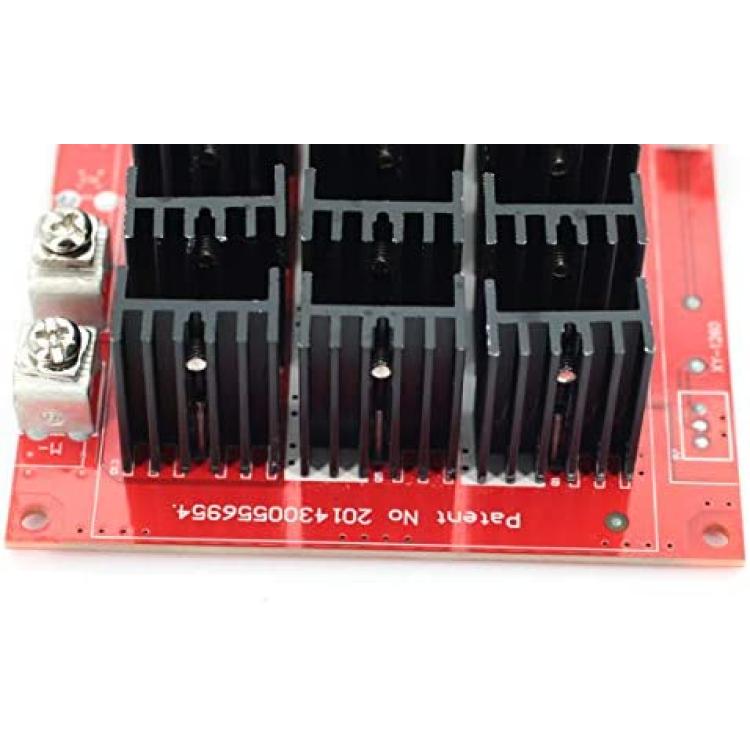

*High-end Configuration: Our motor driver control board uses PWM modulation system to adjust light & speed. In addition, it is designed with radiators to doing heat dissipation created by MOS tube.

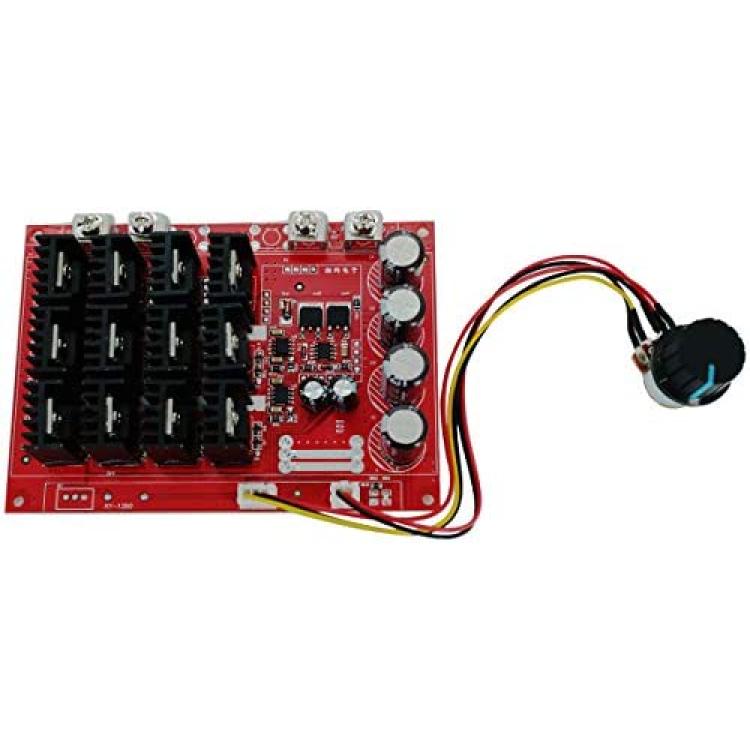

*Convenient Speed Control: With wires to connect potentiometer and regulation switch to control the speed, it is convenient to use.
*Low Quiescent Current: our speed regulation module is designed with low quiescent current 0.04A(When the working voltage is DC10V-50V, the quiescent current cannot exceed 40mA).
*Wide Application: our motor driver control board can be applied to universal DC brush motor speed regulation; car motor speed regulation; production line conveyor belt speed regulation; electronic fan speed regulation etc.
Description
Power requirements: 10-50vdc
Rated current: 60a (maximum output current)
Frequency: 15000hz
Control motor power: 0.01-3000w,
12V 720w (max), 24v: 1440w (max)
36v: 2160w (max), 50v: 3000w (max)
Standby current: 0.04a
Adjustment range: 5-100%
PCB size: 122x87x32mm
