OVERSEE 827675A1 Trim Motor for Mercury Mariner Outboard Motor Parts 25-50HP 827675A1 10828 18-6286 Arco 6255

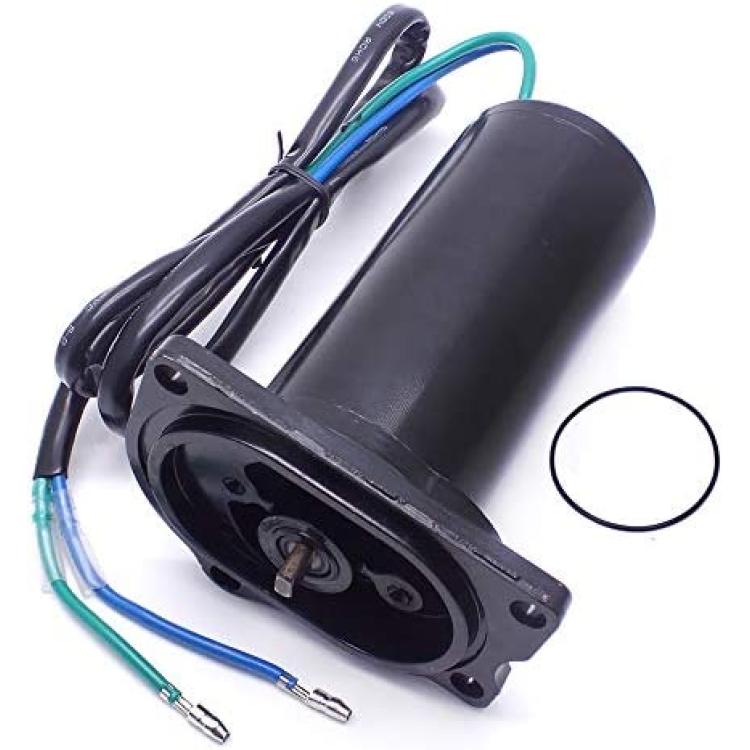

This is a Brand New Tilt/Trim Motor for Mercury Marine,

(4) 6.7mm ID Unthreaded Mounting Holes
Replaces:
API Marine PT498NM
Arco Marine 6255
Mercury Marine 827675A1
Remy Small Motor RT05033
Sierra Marine 18-6286
Lester Number 10828
Specification:
Voltage: 12V
Rotation: Reversible
Field Housing OD: 52 mm / 2.047 in
Overall Length: 134 mm / 5.276 in
Shaft OD: 7.2 mm / 0.283 in
Shaft Notes: 3.8 mm Slotted
Terminal 1 Size: Crimp
Terminal 2 Size: Crimp

Used On: Mariner, Mercury 25-50hp Marine Outboards

Replaces: Mercury Marine 827675A1
Application:
Mercury & Mariner 25-50HP Engine Applications
Interchange #: replaces,
Notes : 2-wire w/ bullet connectors
Features : 100% New
