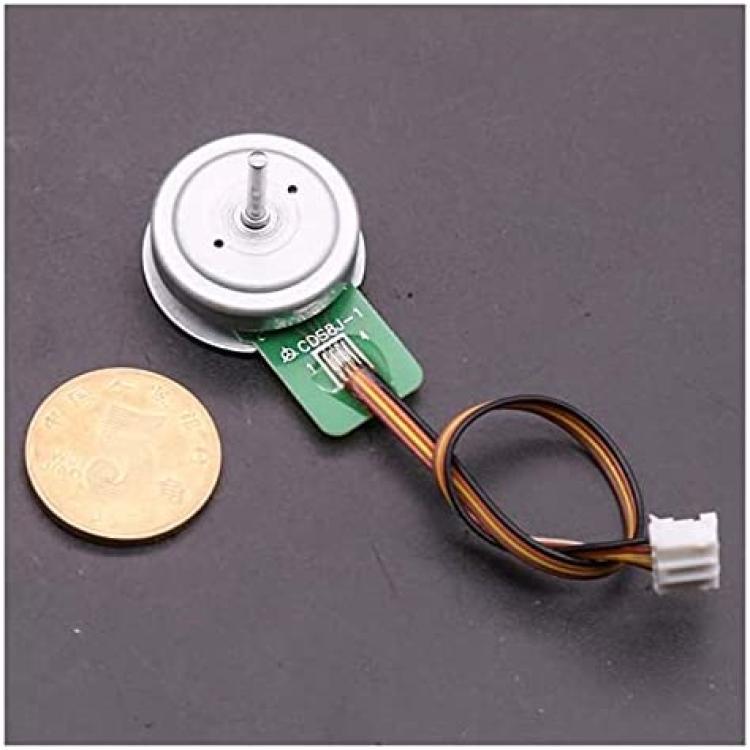

Nuojie Electronic Components Motor 22mm Ultra-Thin Brushless Motor DC 6-7.2V 8750RPM Rare Earth Strong Magnet Outer Rotor Silent 3-Phase 4-Wire
About this product
*This DC motor has the characteristics of high speed and small size.
*Motor diameter: 22.1mm
*Motor thickness: 8.9 mm
*Output shaft diameter: 2.0mm
*Output shaft length: 12.0mm
Description
This motor uses pure copper wire coil, low heat and low loss

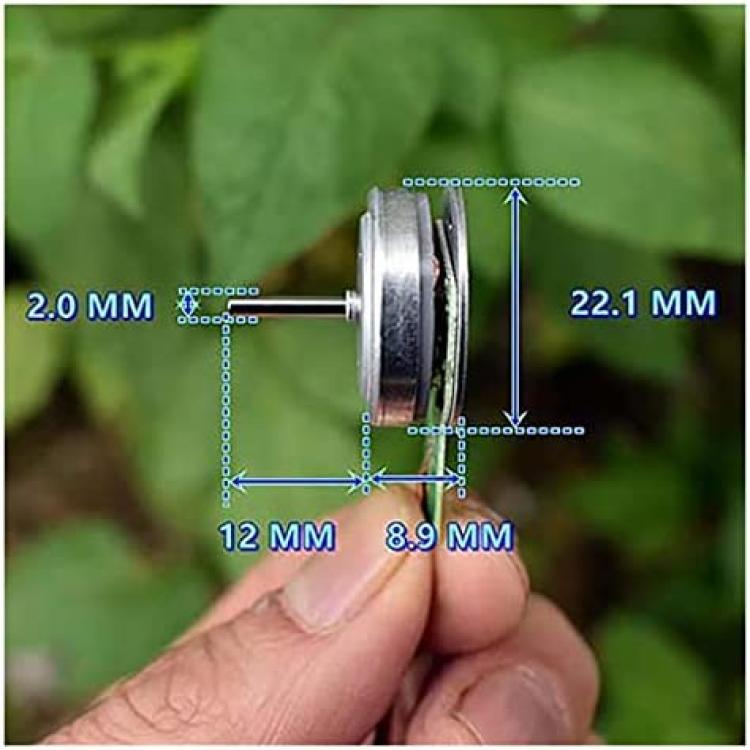

Motor diameter: 22.1mm
Motor thickness: 8.9 mm
Output shaft diameter: 2.0mm
Output shaft length: 12.0mm
Weight: 14.5 grams
Voltage: 6.0-7.2V
Test Data:
Voltage: 6.0V No-load speed: 7200RPM
Voltage: 7.2V No-load speed: 8750RPM

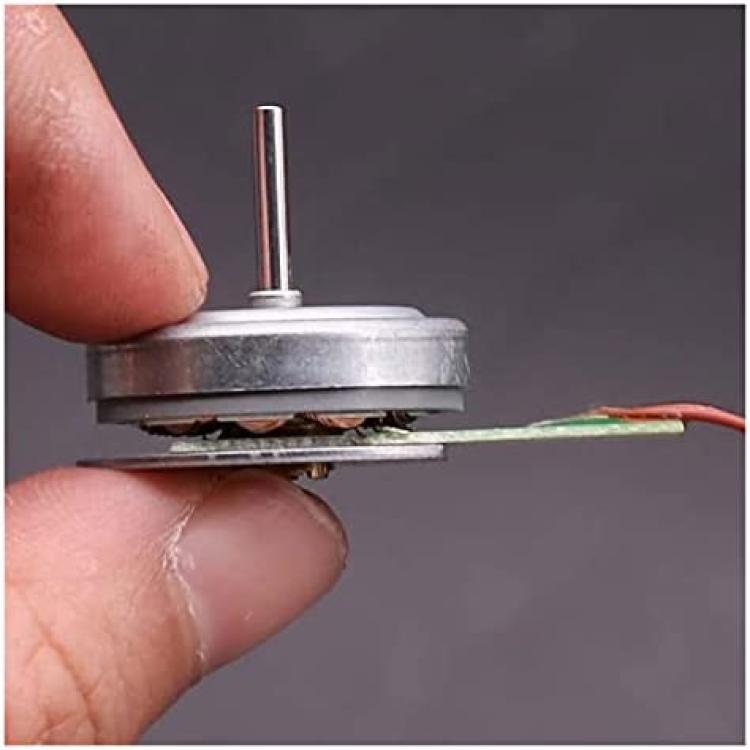

The motor is a three-phase four-wire external rotor brushless motor. The black wire, orange wire, and yellow wire are the three-phase main wire of the motor, and the brown wire is the common terminal (COM) of the motor.
If you are using a three-wire brushless drive, only connect the three-phase main wires (black, orange, and yellow) of the motor, and the brown is floating and not connected.

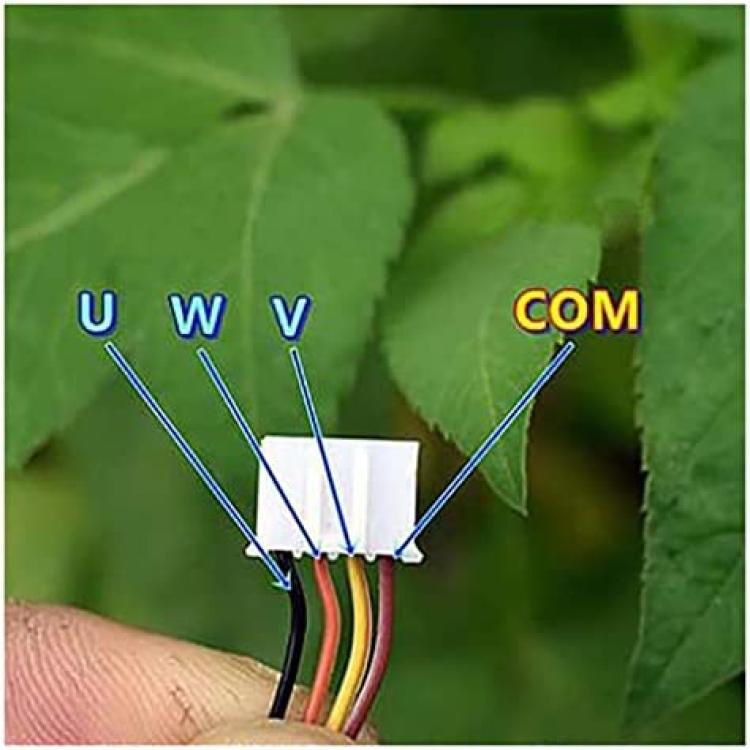

If a four-wire brushless motor driver is used, the black, orange, and yellow three-phase wires are connected to the U, W, and V three-phase ports of the drive, and the brown wire is connected to the COM port.
Package Included:
Motor x1.
