L-faster 24V 36V 350W Electric DC Motor Electric Skateboard DIY 350W Motor Kit Electric Bike Engine Motor Use 25H Chains
Description
36V 350W Electric DC Motor Electric Skateboard DIY 250W Motor Kit Electric bike Engine High Quality MOTOR Use 25H Chains
This is simple kit inlcude only one brush motor, one controller and one accelerator.
1.What battery is recommended for this kit?
This kit is 24V/36V, you need two/three 12V batteries, (lead acid or lithium), or one 24V/36V battery. After they are linked together, the recommended capacity >12AH, working current need less than 20A.
2.Does the kit include batteries?
No this kit doesn't include batteries.
This item include:
1. 1 x 350W brush motor
2. 1 x motor controller
3. 1 x throttle
The normal kit:
The pedal kit:
The throttle kit:

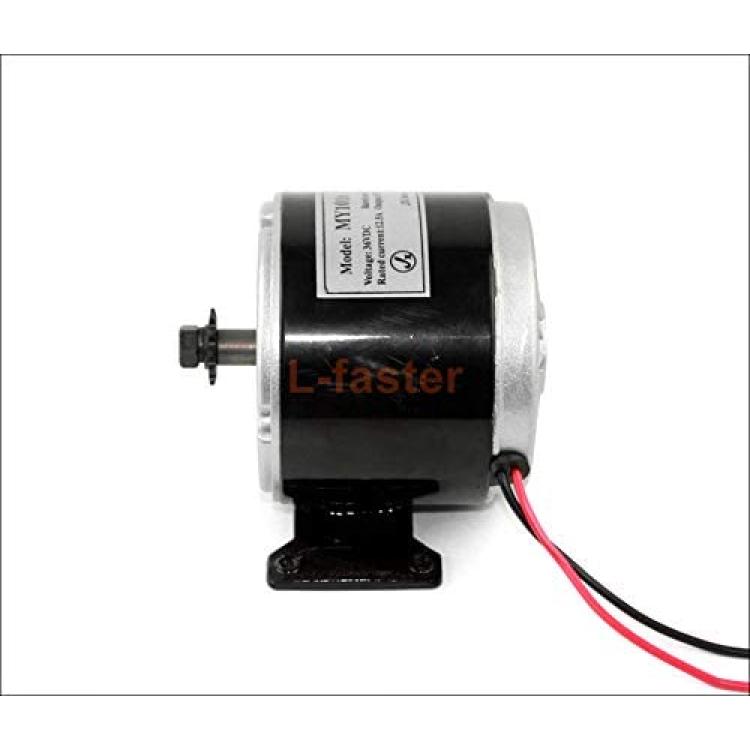

Motor specification:
Rated voltage: 24V / 36V
Motor power: 350W
No loading current: 1.9A / 1.4A
Rated speed: 2750 rpm
Rated current: 14A / 12.5A
Motor weight: 2.25 kg
Motor sprocket: 11T 25H sprocket
Motor:
Controller:
Controller connection:
(parts for reference only)

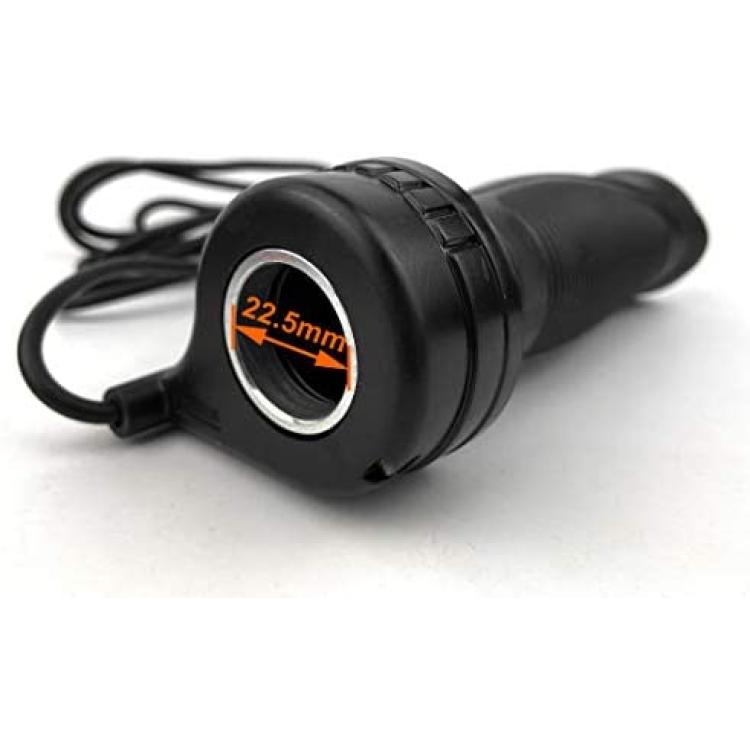

Normal throttle:
Upgrade throttle:
Pedal throttle:
Installation for reference:
Frequency Asked Questions
What is motormaker.net?
MotorMaker.net is an online retailer and bulk order e-shop for electric motor and controller products, range from standard products and customized products. Main production bases are located in Shenzhen, Dongguan, Wuhan, Shanghai and Chengdu. A professional team supports your order and customization design.
What service can be supported from motormaker.net?
MotorMaker.net offer product order and product customization service. All orders will be supported after-sales service, including quanlity gurantee, and technical support.
How to order products from motormaker.net?
You can online order product from motormaker.net by adding product to cart and got to checkout page. Multiple currency options are supported. You can choose suitable currency to place order. Before checkout, you should register account to submit order information.
How to delivery your order from motormaker.net to you?
For order delivery, motormaker.net provides three shipping options, express, air-flight and sea freight. You can choose one option according to your order.
How to inquiry product bulk price?
For the interested product, you can submit bulk price inquiry by bulk order inquiry form.
