YUWYP 60V 20Ah 18650 16S3P Lithium Battery Pack Built-in 30A with BMS Same Port Suitable for Motors Below 1000W Electric Scooter Lithium Battery Pack
About this product
*Battery voltage: 60V, capacity: 20AH, Cell specification: 18650, Combination: 16S 3P.

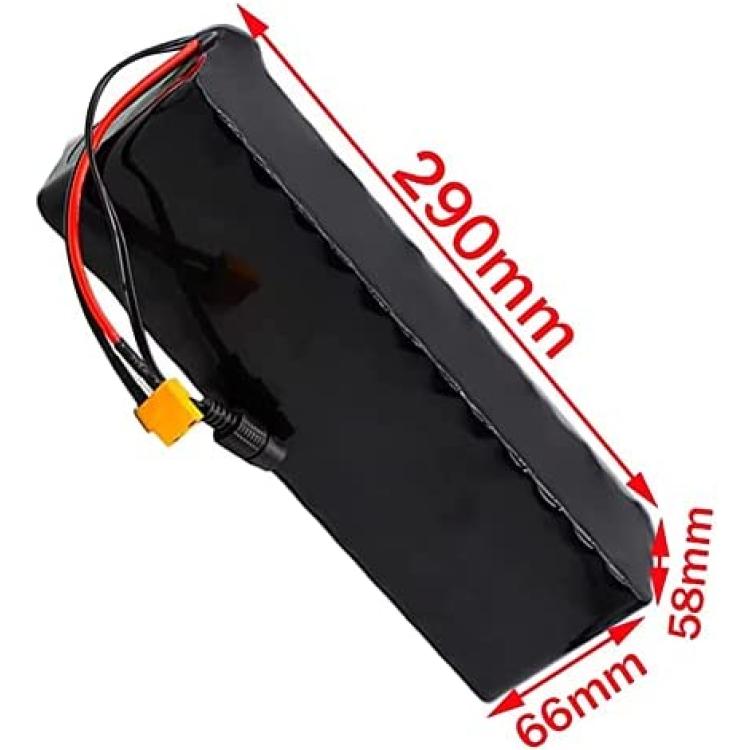

*Size: 290 * 66 * 58mm, for power: 1000W 750W 500W 350W 250W 200W motor, weight: about 1.9kg.
*BMS internal protection circuit: protection against overload, over-discharge, over-current and short-circuit. Protect your driving safety.
*Suitable for: electric bikes, power tools, airplane models, electric scooters and others.
*Note: If you have any questions, please contact us by Amazon email and I will get back to you as soon as possible.
Description
Basic Information
- Cell count: 48PCS
- Configuration: 16 sets in series (16S) of 3 cells (3P) in parallel , Built-in BMS protection,With overcharge, over discharge, short circuit protection
- Pack: Blue PVC
- Weight: 2.5kg
- Width: 58mm
- Height: 66mm
- Length: 290mm
* Manual measurement, there will be deviations.
Energy
- Nominal Voltage: 60V
- Output Voltage Range: 44v - 67.2v
- Nominal Capacity: 20Ah
- Nominal Power : 420Wh
*Test results will be affected by test conditions (eg, temperature, wire loss, test equipment, test parameters, etc.), please perform multiple tests and take the average of the results to reduce the deviation.
At a temperature of 25 , the deviation between the pure resistance discharge test result and the nominal data is controlled within 10%, which is normal.
Cycle Life:
- More than 500 times, Capacity and performance will decrease as the number of cycles increases.
Application:
electric bicycle motor ebike scooter

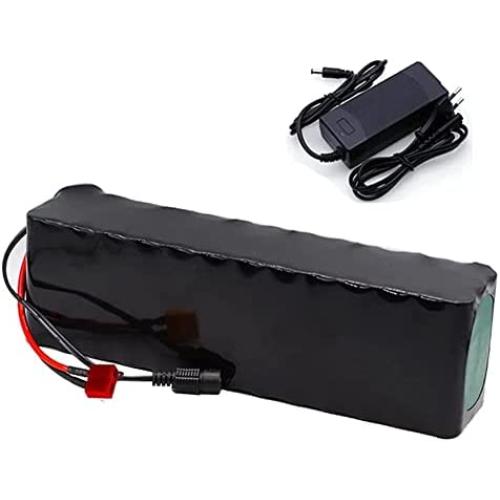

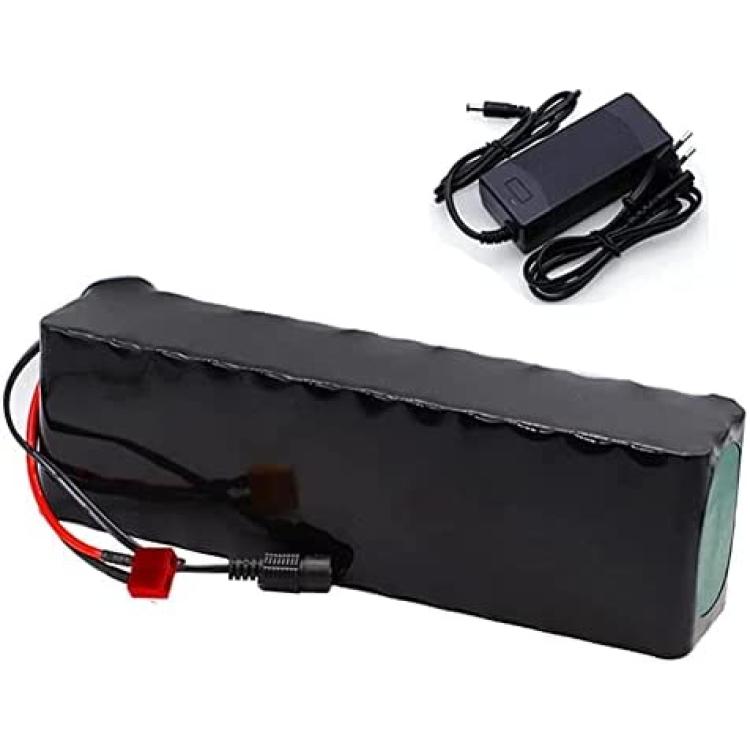

Package includes:
1* 60V 20Ah xt60 battery (with built-in protection board)
1* charger
