Hy-Vent® Air Vent with Installation Kit Designed to Prevent Overflow of Seawater from a Packless Shaft Seal System on Sailboats and Low-Speed Motor Vessels

Hy-Vent® Air Vent with Installation Kit Designed to Prevent Overflow of Seawater from a Packless Shaft Seal System on Sailboats and Low-Speed Motor Vessels

Brand: ‎Bartovation
Product Code: MM23257
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

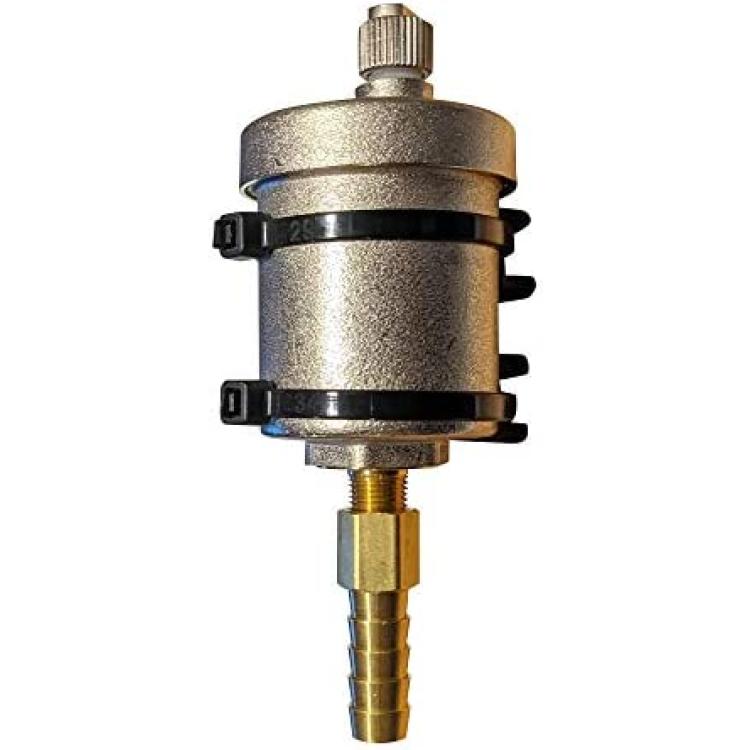

*Use this vent kit to purge unwanted air from a packless seal system, while restricting water from escaping the system. This kit includes everything you need for installation and mounting!

*Once the water normalizes, the float will open, allowing air to freely vent. This is a great product to maintain an air free system and ensures the engine room stays dry in the event of back flow.

*This kit is a simple, more elegant solution to the commonly used water bottle collection tank. This kit includes all hardware you need to use this vent and can be easily installed.

*Unlike the water bottle method, this vent requires no routine emptying, since no water is leaving the vent tube.

Description

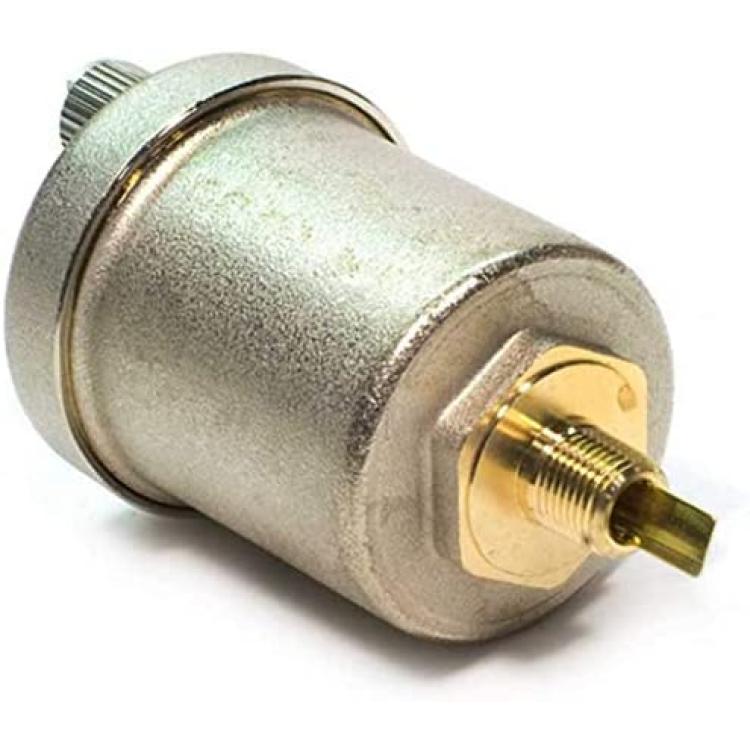

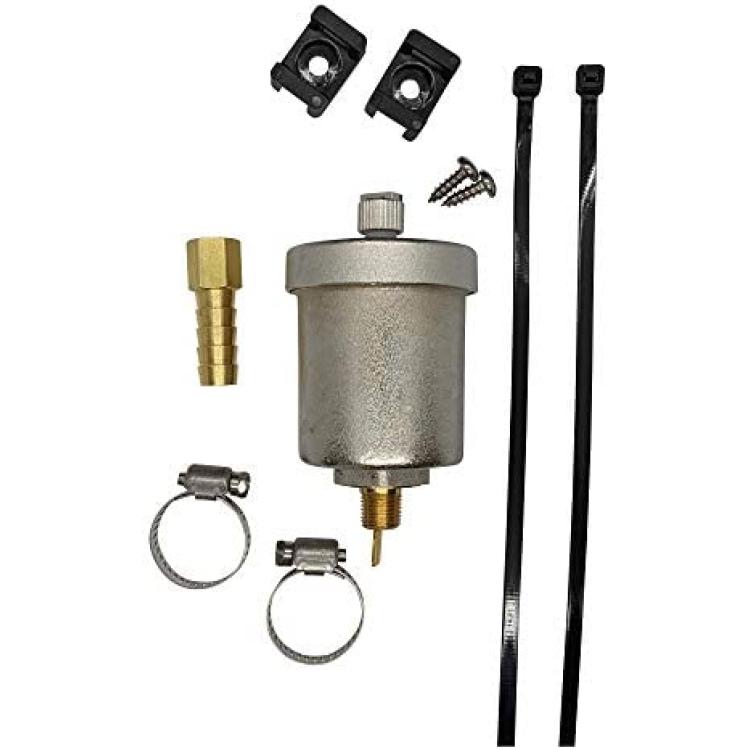

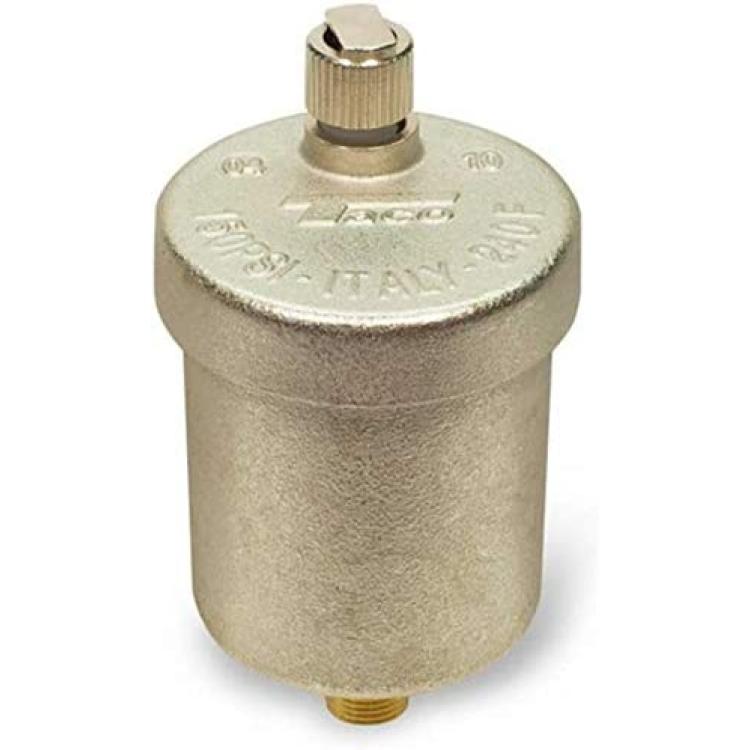

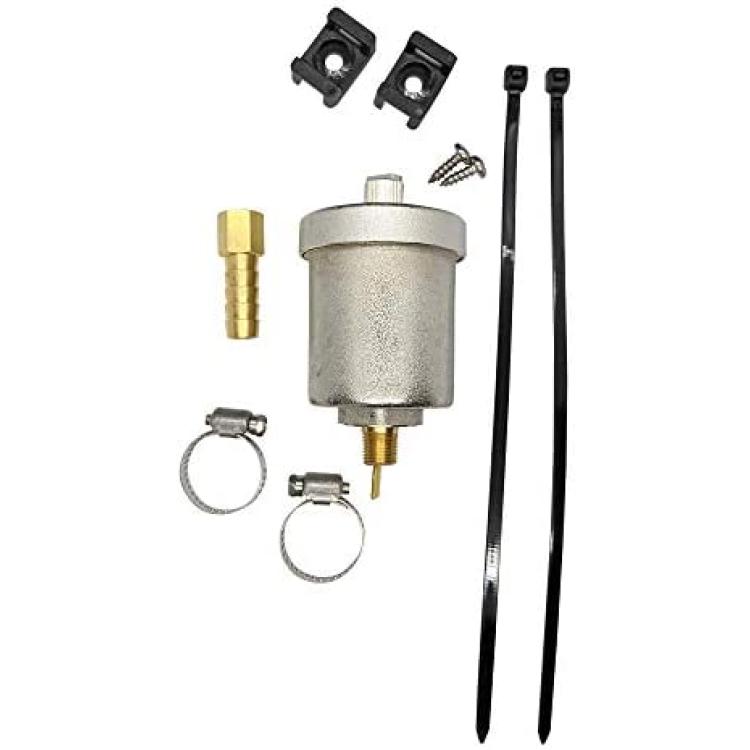

This kit is made and packaged in New York Use this vent kit to purge unwanted air from a packless seal system, while restricting water from escaping the system. This kit includes everything you need for installation and mounting! The high-capacity, float-style vent can be placed on the end of your packless shaft seal vent tube to prevent overflowing water from entering the engine room, while releasing air pressure. Once the water normalizes, the float will open, allowing air to freely vent. This is a great product to maintain an air free system and ensures the engine room stays dry in the event of back flow. This kit is a simple, more elegant solution to the commonly used water bottle collection tank. This kit includes all hardware you need to use this vent and can be easily installed. Unlike the water bottle method, this vent requires no routine emptying, since no water is leaving the vent tube. Taco Model 400 Hy-Vent 1/8” Air Vent (Quantity 1)1/8" to 3/8" Hose Barb Brass Adapter (Quantity 1)Hose Clamps 316 Stainless Steel (Quantity 2)Plastic Wall Mount with Stainless Screws (Quantity 2)Zip Ties (Quantity 2)Screw hose barb adapter onto the Hy-VentInsert hose barb onto the end of the vent hose and secure with hose clamp (use two if desired)Select mounting location inside the engine compartment. Mount the Hy-Vent upright to ensure proper venting. Mount using included zip ties, wall mounts and screwsMonitor vent after the first few engine uses to ensure setup is properly venting air and preventing leaks This kit is designed for use on sailboats and low speed motor boats with a packless shaft seal The Hy-Vent from Taco allows air to escape, while restricting water. Most packless shaft seal systems include a vent hose attached to the carbon flange to let air escape This kit is designed to attach to the end of the hose and restrict water from flowing out.
