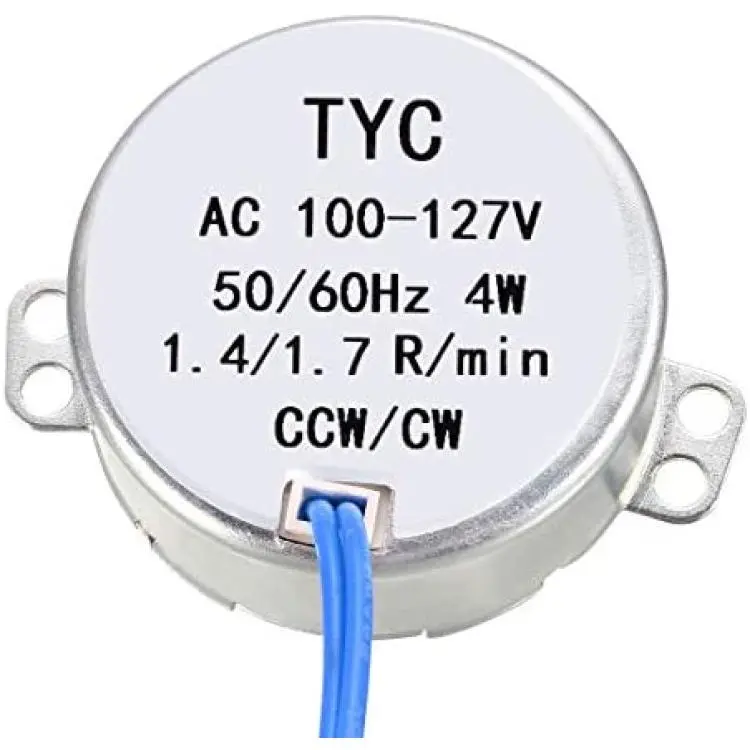

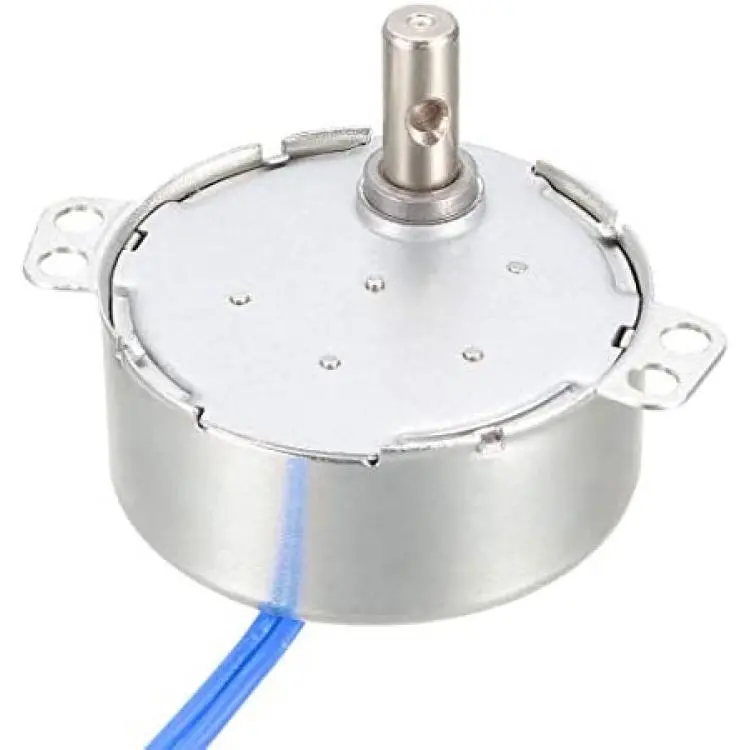

uxcell Synchronous Motor AC 100-127V 1.4-1.7RPM 50-60Hz CCW/CW 4W Turntable Gear Box for Microwave Oven

uxcell Synchronous Motor AC 100-127V 1.4-1.7RPM 50-60Hz CCW/CW 4W Turntable Gear Box for Microwave Oven

Name: uxcell Synchronous Motor AC 100-127V 1.4-1.7RPM 50-60Hz CCW/CW 4W Turntable Gear Box for Microwave Oven
Brand: ‎uxcell
SKU: MM2294
Availability: InStock

Brand: ‎uxcell
Product Code: MM2294
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

*[Specification] - Voltage: AC 100-127V; Speed: 1.4-1.7RPM; Frequency: 50-60Hz; Power: 4W; Direction: CW/CCW; Torque: 11 kgf.cm; Wire Length: 40cm/ 15.7 inch.

*[Typical Applications] - heater machine / electric fan / Christmas tree / Air conditioner / Massagers / Dynamic Visualizer / Arts & Crafts lighting / popcorn machine.

*[Show Your Style] - An Good Motor For Hand-Made, DIY Project, Model And Anything Else You Want.

*[Features] -AC motor is small power consumption, torque, low noise, small size, light weight, easy to use.

*[Advantage] - The permanent magnet synchronous motor and the slowdown in one body can control the pros and cons of the synchronous motor.At rated frequency, the motor speed is not affected by voltage and remains stable. If the motor is overloaded or stalled, the motor coil will not burn.

Description

Description
It is mainly used for gluing machine, heaters, monitor, electrical curtain, stage lights, advertisement electrical movement, electrical apparatus, science and education instruments.
Typical Applications: Mahjong desk, Automatic Equipment, Electric-drive devices.

Specification
Rated Voltage: AC 100-127V
Power: 4W
Manner of Working: CW/CCW
Rated Frequency: 50-60Hz
Rated Speed: 1.4-1.7RPM
Torque: 11 kgf.cm

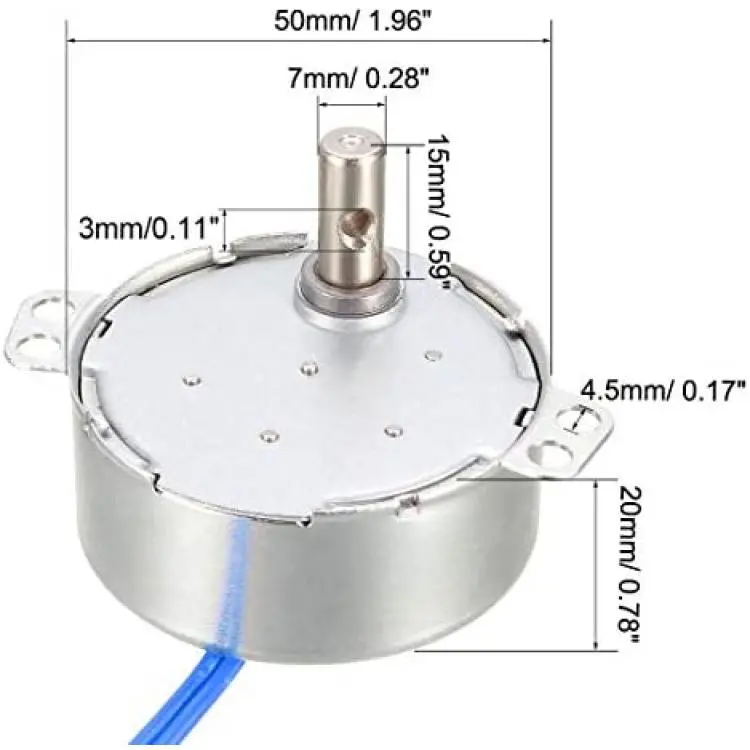

Body Diameter: 50mm/ 1.96 inch
Body Height: 20mm/ 0.78 inch
Total Length: 65mm/ 2.55 inch
Mounting Hole Diameter: 4.5mm/ 0.17 inch
Shaft Diameter: 7mm/ 0.28 inch
Shaft Length: 15mm/ 0.59 inch
Shaft Hole diameter: 3mm/0.11 inch
Wire Length: 40cm/ 15.7 inch
Package: 1 x AC Synchronous Motor

Tags: synchronous motor, AC motor, turntable motor, microwave oven motor, CW/CCW motor, 4W motor, gear box, DIY motor, model motor, electronic components, synchronous motor gearbox
