Kunray 24-48V 350W Brushless Motor Controller with LCD Display Dual-Mode Ebike Controller 17 Amp for Electric Bike Scooter
About this product
*Brushless DC Motor Controller: Low noise, close to silent, stable and stable operation.

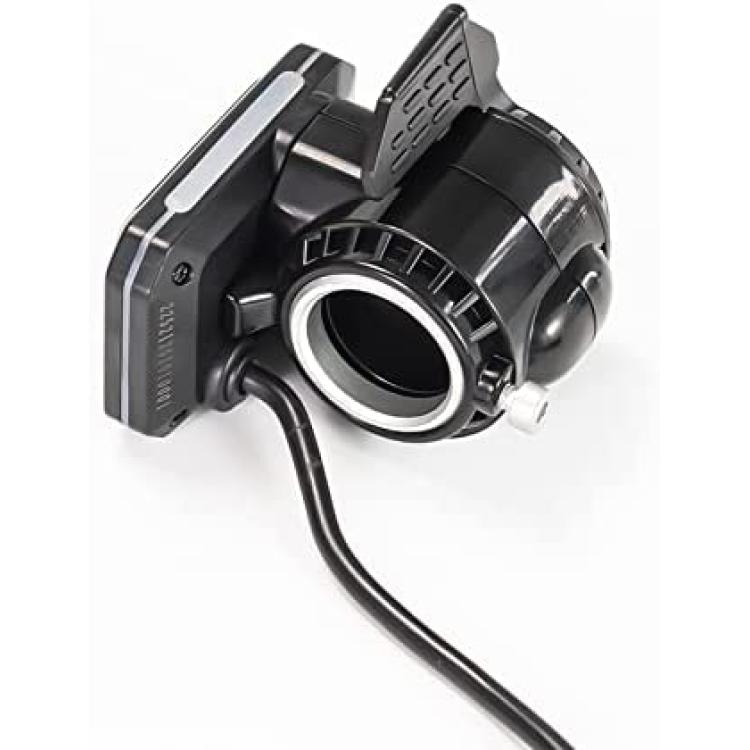

*LCD Display: The data is clear, you can see the screen clearly in a dim environment. And the display itself has a thumb throttle, so when you use it, you do not need to install another throttle.
*Dual-mode Ebike Controller: Dual-mode controller, can work with hall or without hall, our hall is 6 wires, And the controller is square wave controller.
*Multi-Functions: The Display battery, speed, distance, power, and possible error codes for easy troubleshooting. This LCD display is lightweight, rainproof ( IP65 ) , sturdy and durable.

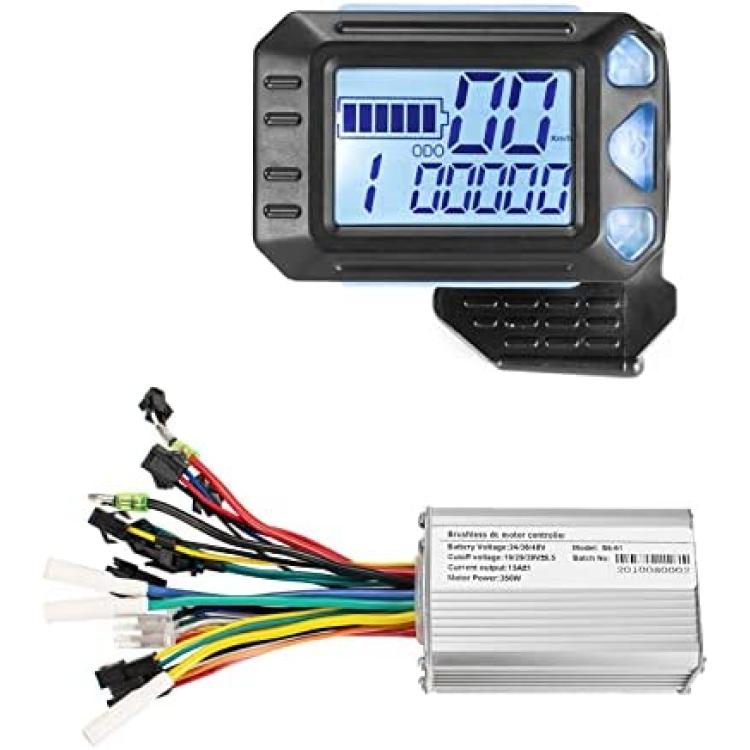

*Application: This E-bike controller kit is suitable for electric bicycles, mountain bike, scooters, etc. Display and controller cannot be used separately.
Description
Brushless DC Motor Controller
Working Voltage: 24V / 36V / 48V
Model: S6-61
Cutoff Voltage: 19/29/39V±0.5
Current Output: 17A±1
Power: 350W

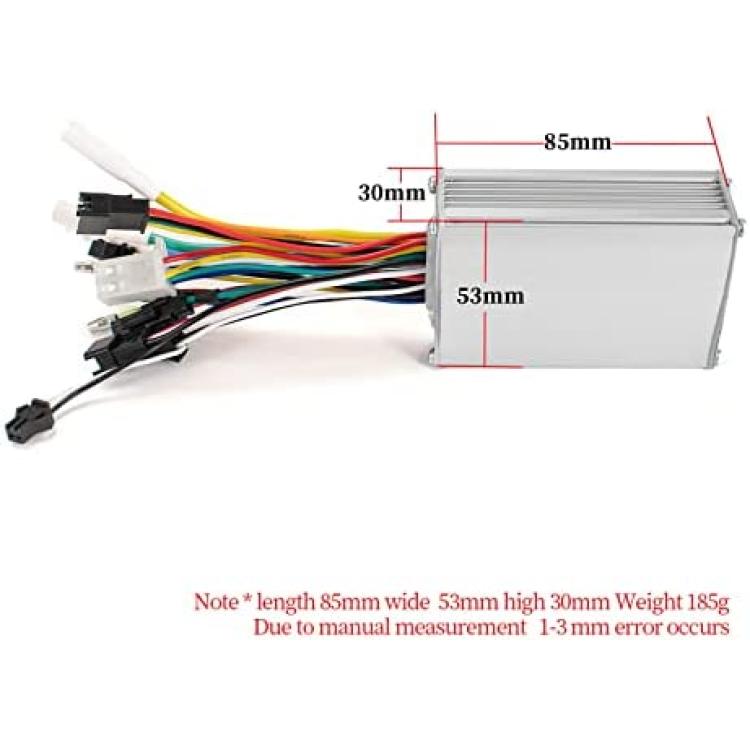

Size: About 85mm (L) * 53mm (W) * 30mm (H)
Net Weight: About 185g

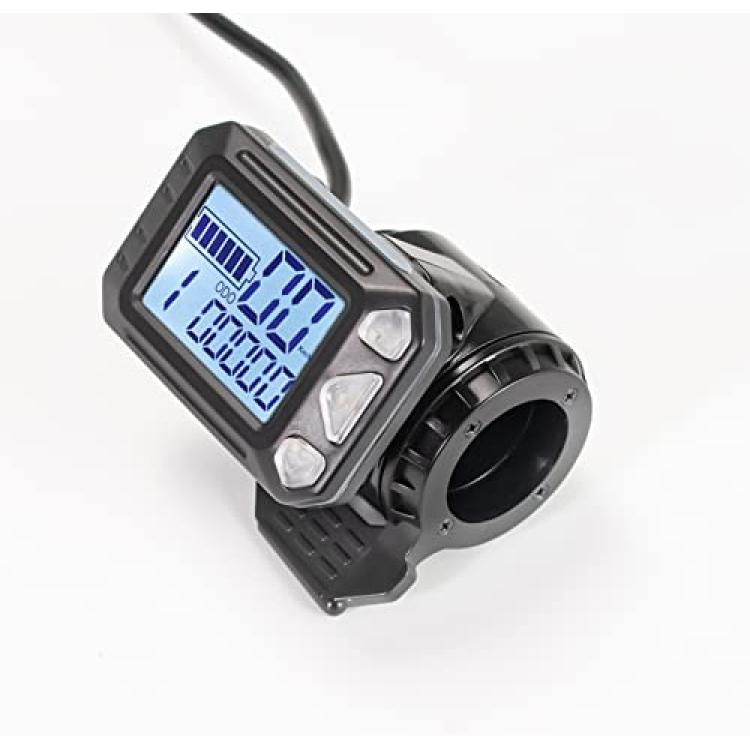

LCD Display
Material: Display cover is ABS, Screen is high-hardness acrylic
Working Voltage: 24V / 36V / 48V
Size: 40mm (W) *57mm (L)
Functional Overview: Switching machine, Full display area, Display function, Press operation, Error code, Setup operation, Outline definition
Display Functions: Speed, Power Assist, Battery power, Error code, Total and Single Mileage, Cruise, Braking indicator, Light Display
Note: Turn on/off of the headlights needs to be turned on by the display - Press and hold the “UP” button 3 seconds to turn on/off
NOTE:

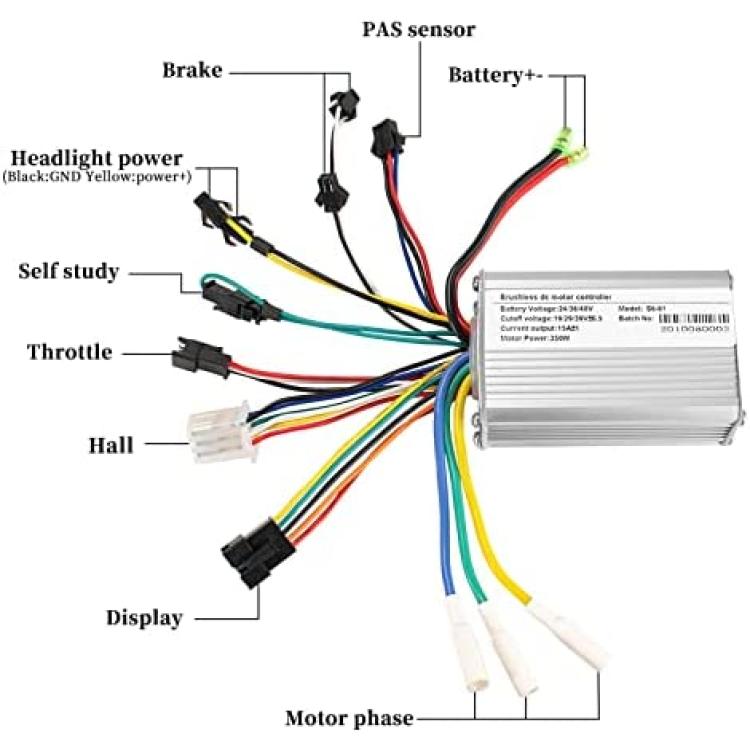

The first time you use it, you must use the self-study wire for learning: Connect the controller self-study wire (connect 2 white wires), and the motor will run automatically at this time. If the motor runs in the wrong direction, please disconnect the self-study wire and connect it again. At this time, the motor will run normally and let the controller learn for 10-20 seconds. And disconnect. There will be no need to use self-study wire in the future.
If your motor has no hall wire or no hall connection, the display will show E07, and it cannot be eliminated. If your motor can run normally, just ignore E07
There is an instruction manual in our package, only need to set the red part according to the actual situation. If you encounter any problems, please contact us first!
