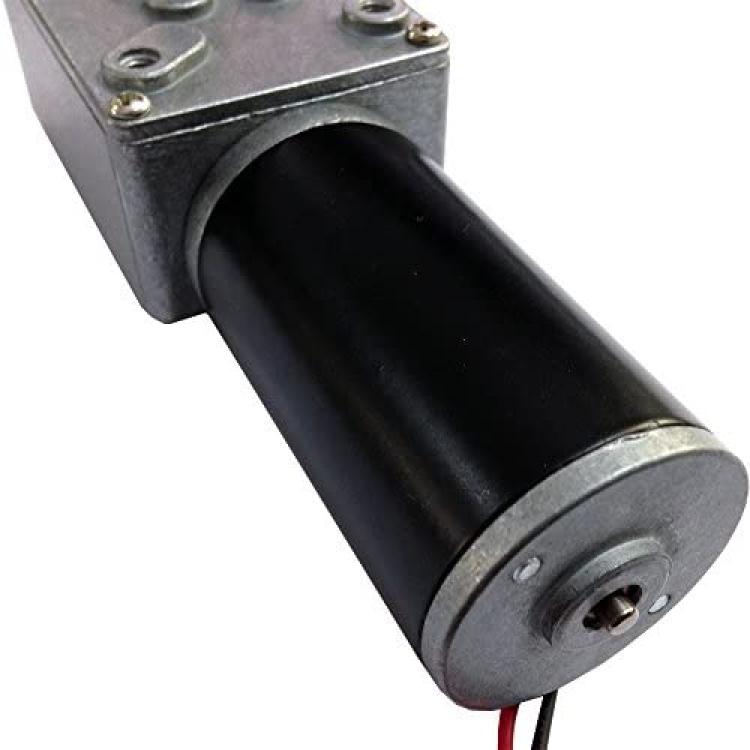

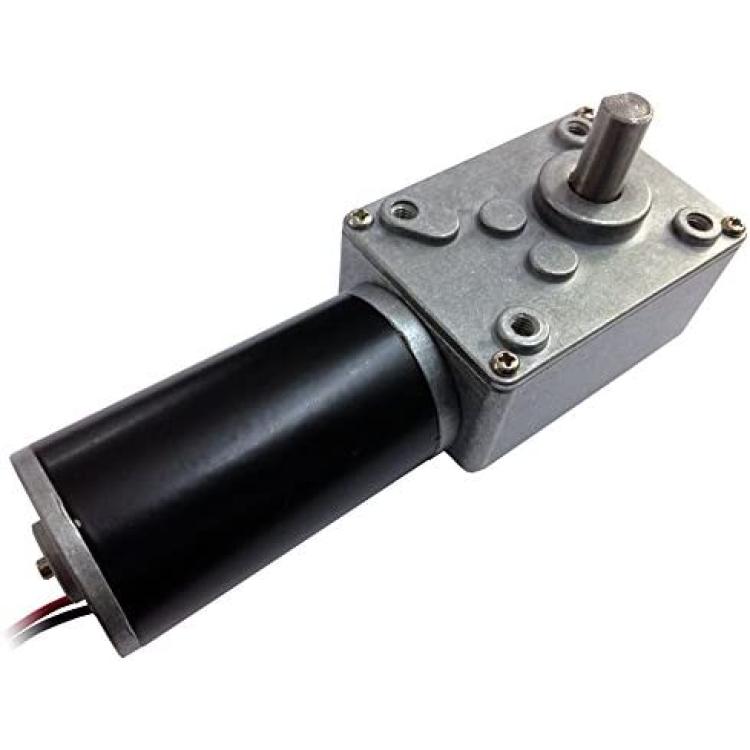

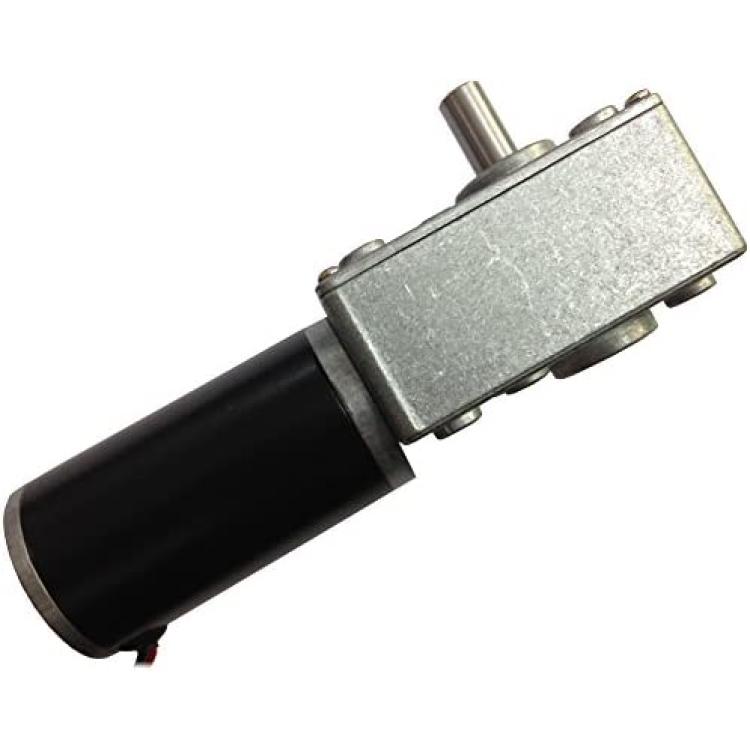

TSINY BBQ Replacement 12vdc Electrical 12rpm Low Speed Small Right Angle Worm Geared Box DC Motor

TSINY BBQ Replacement 12vdc Electrical 12rpm Low Speed Small Right Angle Worm Geared Box DC Motor

Brand: ‎DC Worm Gear Motor
Product Code: MM2175
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

*✔Rated Voltage: DC12V; No-load speed: 12RPM; Rated torque:16kg.cm; Stall Torque: 48kg.cm; Reduction ratio: 1/634;

*✔Protection Class: IP54; Low noise: db

*✔DC Motor Body Dimensions: 31 x 57mm/ 1.22" x 2.24"(D*L); Gear Box Dimensions: 58.1 x 40.1 x 35mm/ 2.28"x1.58"x1.37"(L*W*H)

*✔Output Shaft Dimensions: 8 x 15mm/ 0.31" x 0.59"(D*L) with 1x 13mm/ 0.039*0.51(H*L) flat cut off; Wire Length: 19mm/7.4";

*✔Package: 1PCS x DC Geared Motor; if you need other voltage and rpm, pls contact us, there are many other models of this motor in store.

Description

This type is miniature Worm Gear DC Motor, which can change shaft rotation direction while the wiring positive and negative be changed.It's also have addition two characteristics:

(1)With self-locking, the output shaft can't rotation when switch off, that is self-locking.

(2) Gearbox output shaft and motor shaft are come to be a rectangle, it's widely used in various of occasions that require special install size.
