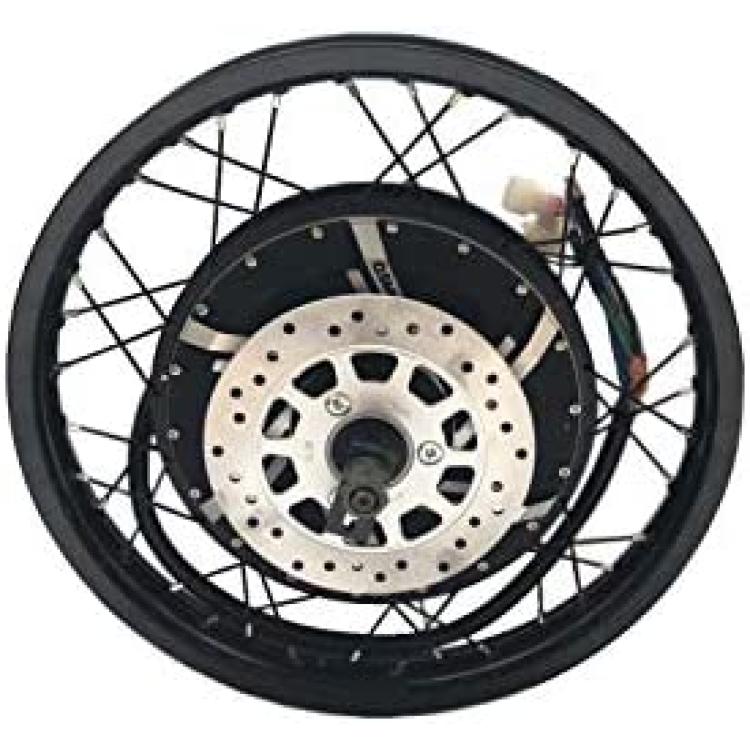

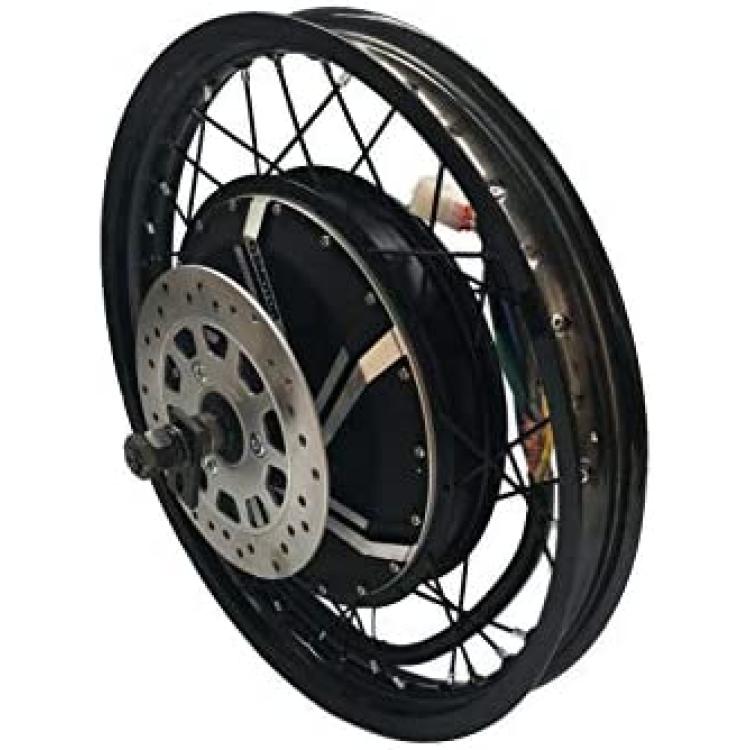

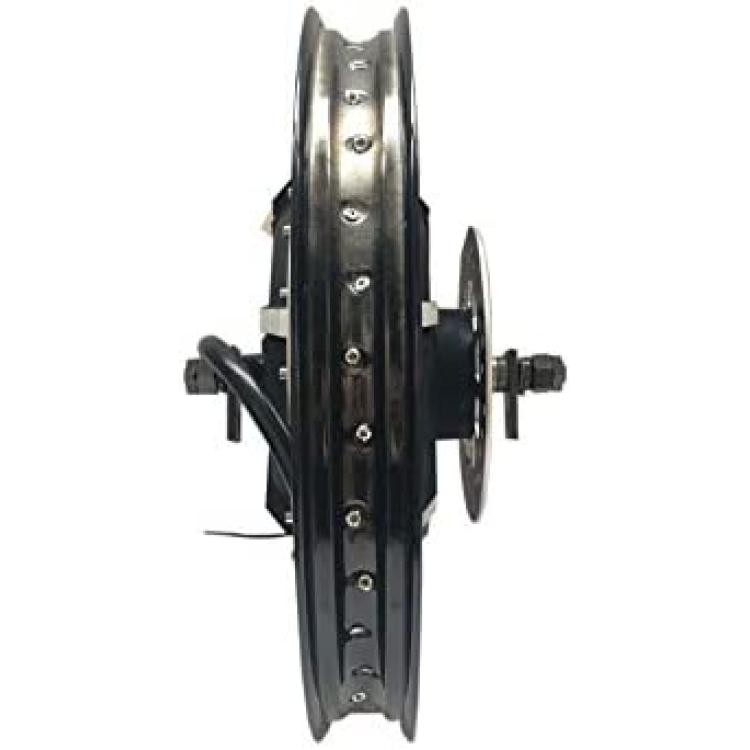

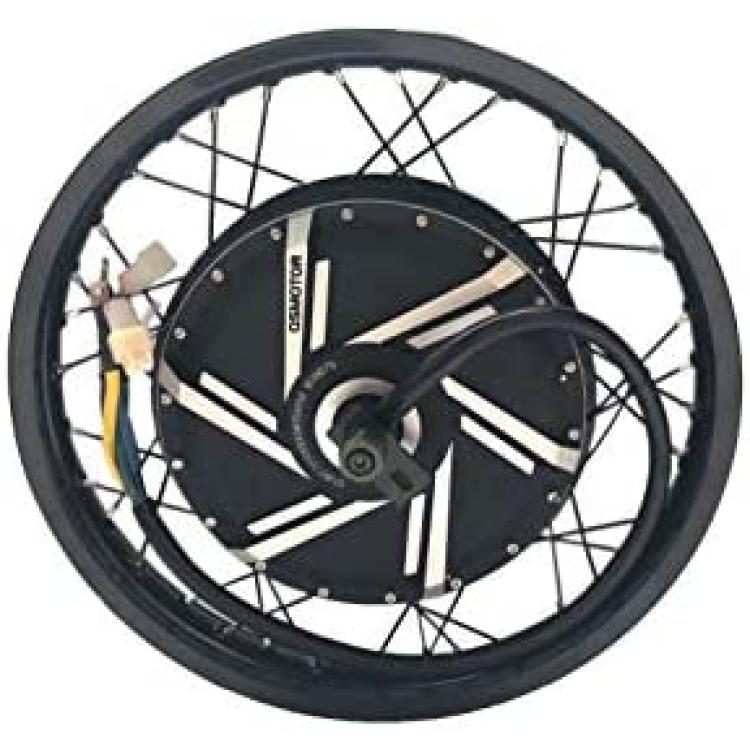

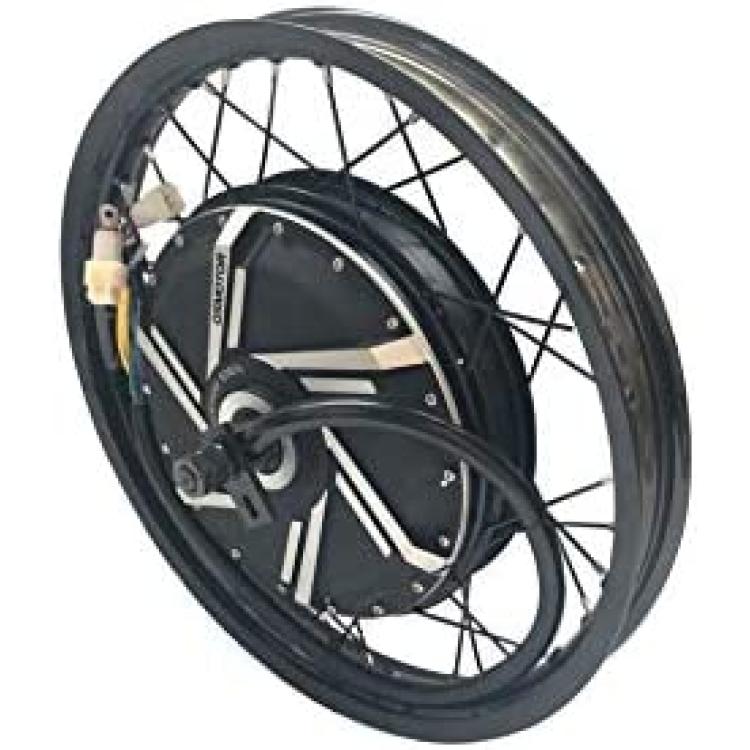

NBPOWER 200mm Dropout, QS 273 Spoke Hub Motor(50H) 12000W -16000W QS V3 Type, Designed for Electric Motorcycle, Max Speed can be Customized from 120KMPH.
Description
Motor Specification:
1. Motor Type: BLDC Hub Motor with Permanent Magnets
2. Motor design: Spoke Motor with Double axle out
3. Spoke Hole: 36pcs*4.2mm
4. Matching Wheel: 17inch-19inch spoke wheel
5. Magnet Height: 50MM
6. Pole Pairs: 16 pairs(32PCS Curved Mangets)
7. Rated Power: 8000W
8. Max Power:11280W(Peak 14000W)
9. Rated Voltage: 72V( 72-144V Can be optional)
10. Speed: 120km/h (30-115km/h can be customized)
11. Max No-load RPM:1400RPM
12. Max Torque: 200N.M
13. Max Efficiency: 90%
14. Continious current:130A
15. Max current:190A ,Peak 260A
16. Brake type: Disc brake
17. Rear Fork width for installation: 200mm
18. Winding Core material: Aluminium
19. Cross Section of Phase wire: 16 mm2
20. Hall sensor phasing angle: 120 degree
21. Temperature Sensor: Optional
22. Max. Working Temperature: 70 degree, Peak 120 degree
23. Waterproof Grade: IP54
24. N.W./ G..W. : 22kgs / 23kgs
25. Package Size: 44*43*34CM
Package Content:
1pcs* motorwheel with spokes ;
