T-H Marine MJ-1-DP Mini Jacker Small Engine Jack Plate for Outboard Motors Only
About this product
*Clamp style small outboard jack plate
*Super for skiffs, aluminum boats, and inflatables
*4" setback, 3" vertical offset, Max Weight: 150 lbs., Max Horsepower: 35 HP

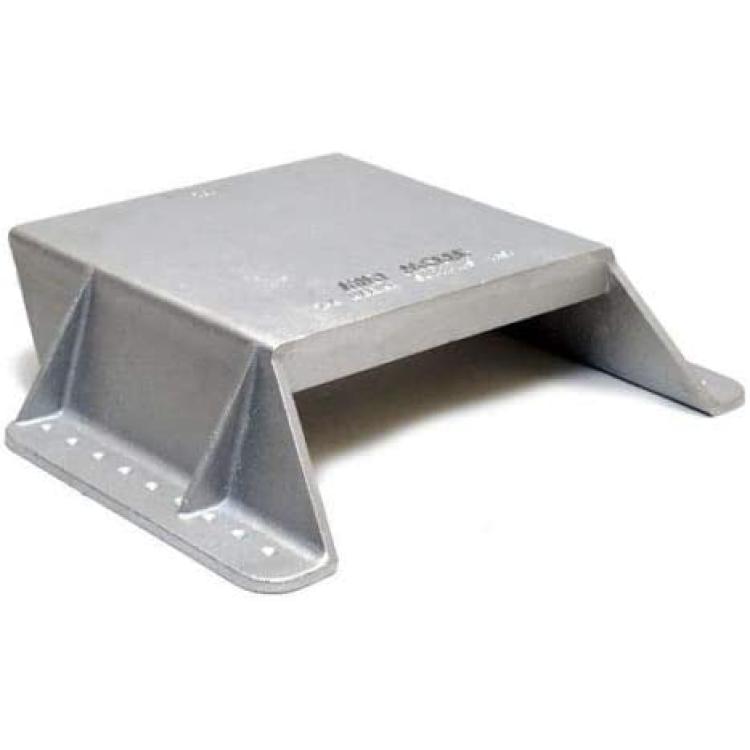

*Cast aluminum bracket

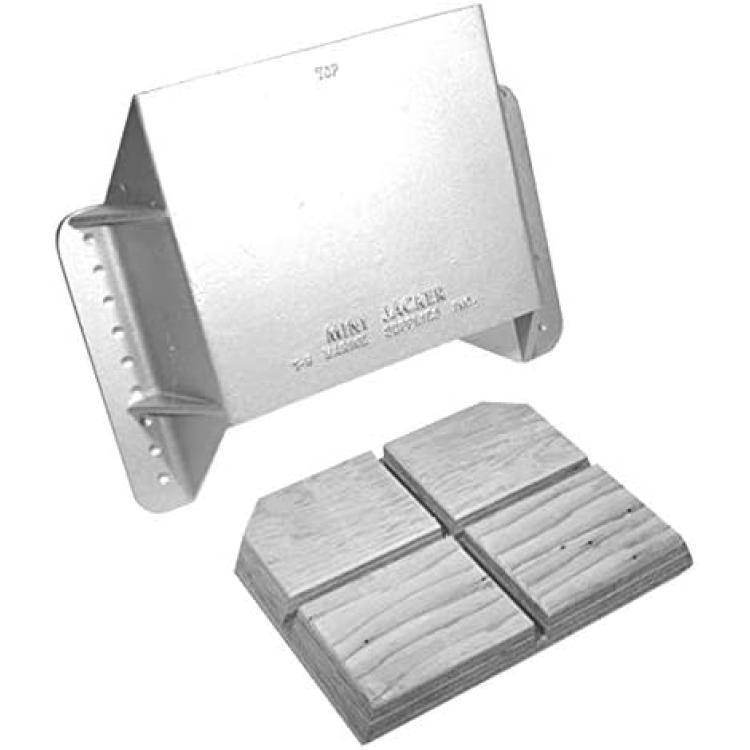

*Marine grade transom block
Description

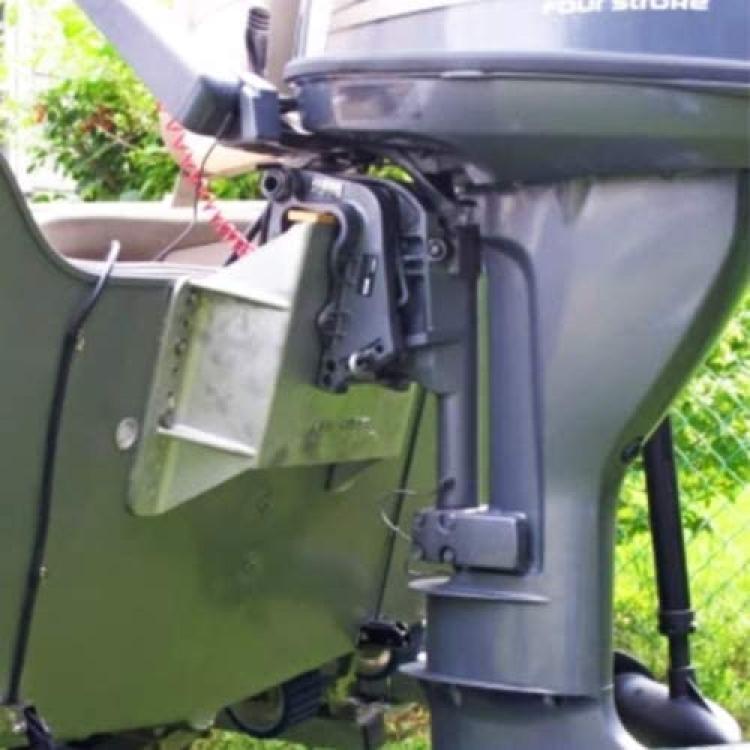

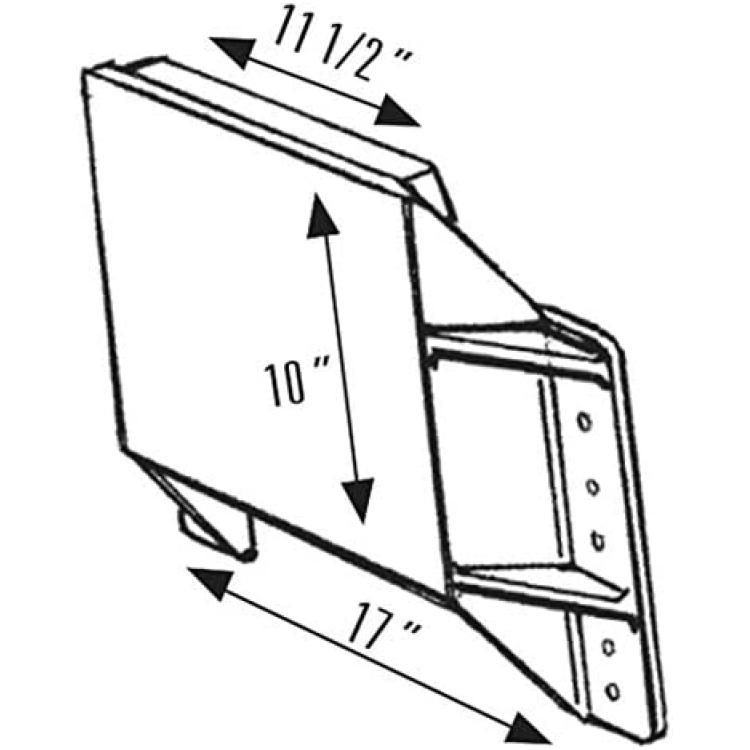

This cast aluminum offset type jack plate is designed for clamp-on mount outboard motors up to 35 HP. The Mini Jacker allows mounting of long shaft motors to shorter shaft transom boats. The Mini-Jacker stands off transom 4". The engine mounting surface is 11-1/2" wide x 10" high and features a vertical offset of 3". The overall width of transom mounting flanges is 17".
