Comidox 1PCS 2000W 10-50V MAX 40A PWM DC Motor Speed Controller Governor HHO RC Controller Adjustable Variable Speed Switch

Comidox 1PCS 2000W 10-50V MAX 40A PWM DC Motor Speed Controller Governor HHO RC Controller Adjustable Variable Speed Switch

Brand: ‎Comidox
Product Code: MM2118
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

*Using high-quality field-effect power tubes and dedicated variable-speed drive IC/PCB for 2oz 70-micron thick copper, and high-current balanced PCB layout, the output PWM waveform is perfect and more efficient.

*The DC governor is positioned as an entry-level industrial governor with small size, wide voltage, high current, low temperature rise, high reliability and low price.

*The governor is a DC governor with a wide operating voltage range and the power supply must be a DC power supply within 10-50V.

*Road board dimensions: length 90mm * width 51mm * height about 30mm (excluding the adjustment part of the potentiometer)

Description

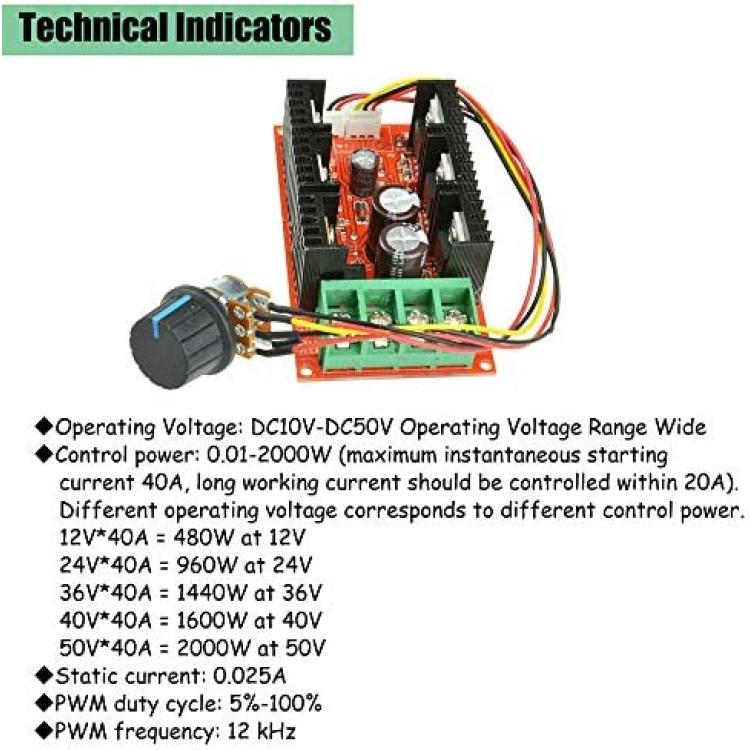

Specifications:
Rated current:40A?Maximum output current?
Control Motor Power:0.01-2000W(The maximum instantaneous starting current is 40A, and the long-time working current should be controlled within 20A.)
Different working voltages correspond to different control powers as follows:
working voltage 12V:12V*40A=480W(max)
working voltage 24V:24V*40A=960W(max)
working voltage 36V:36V*40A=1440W(max)
working voltage 40V:40V*40A=1600W(max)
working voltage 50V:50V*40A=2000W(max)
quiescent current:0.025A(The quiescent current will not exceed 25mA when the operating voltage is between DC10V and DC50V)
PWM Regulation range:5-100%
PWN Frequency:12khz
operating temperature:-20?~40?

Note:
The installation of electronic modules requires basic knowledge and requires a certain electronic professional foundation and hands-on ability. Please purchase carefully!

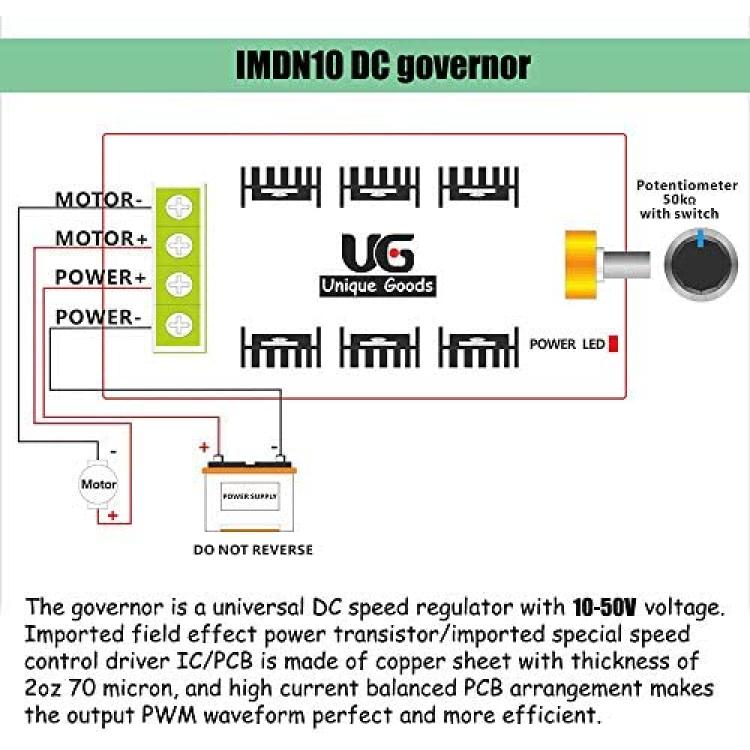

When wiring, pay attention to the positive and negative poles of the power supply must not be reversed. The reverse connection is equivalent to a short circuit, and the current is very large, which will burn the governor instantaneously. Please wire as indicated by the terminal.
Manual measurement, with small error. Please check size in detail before purchase.
Real colors may slightly differ from the pictures, as it depends on specific monitor settings and light brightness.

We highly appreciate all customers opinions to improve the selling, also if anything you unsatisfied, please contact us for probable best solution.

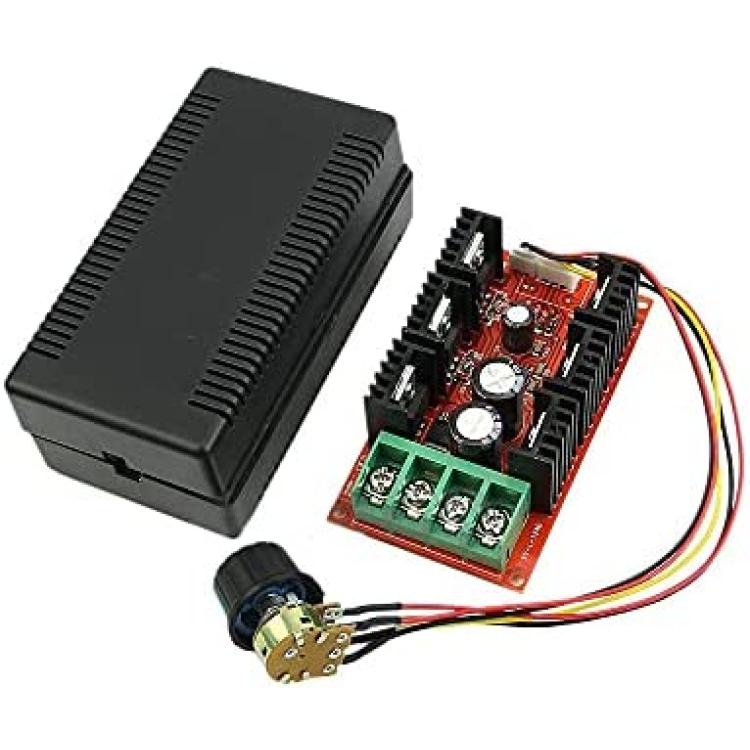

Package Includes: 1Pcs
