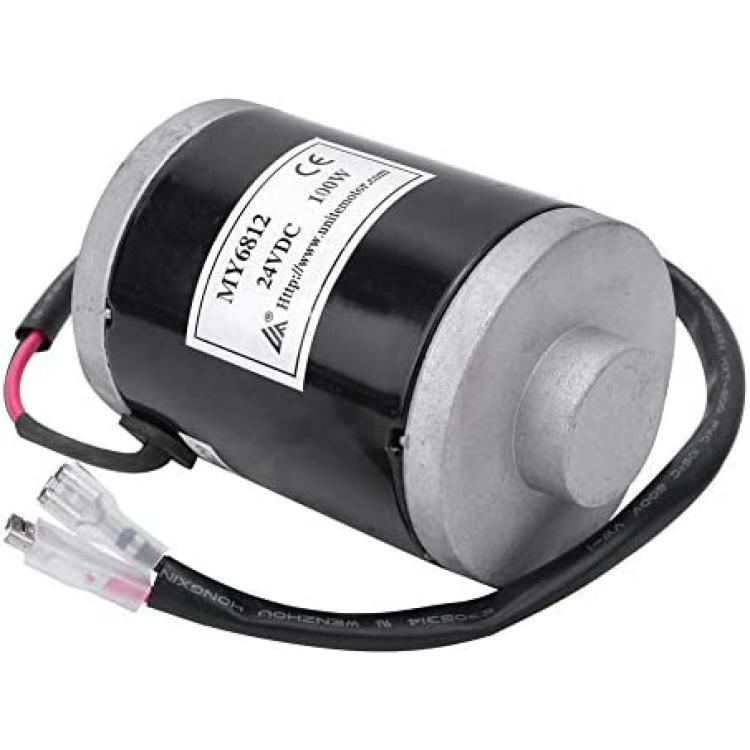

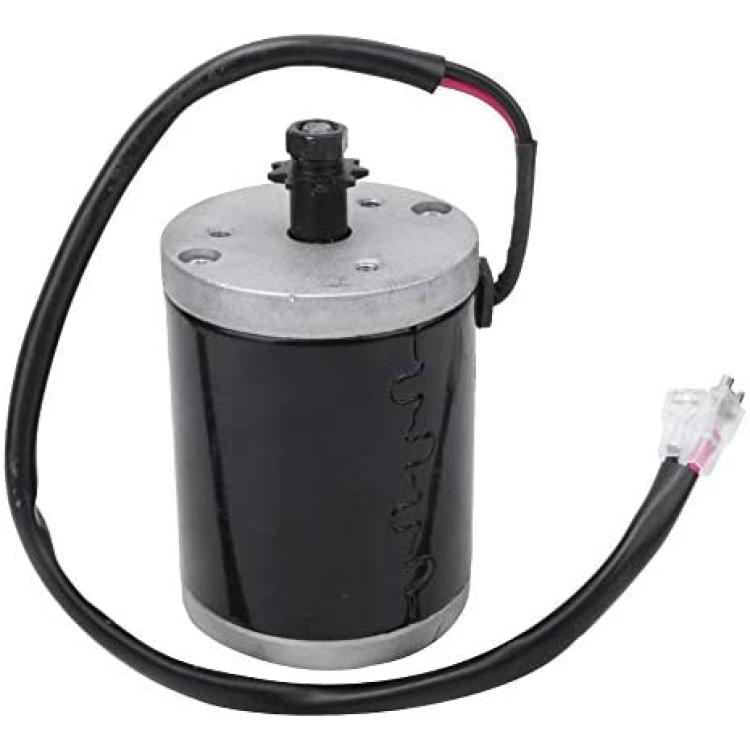

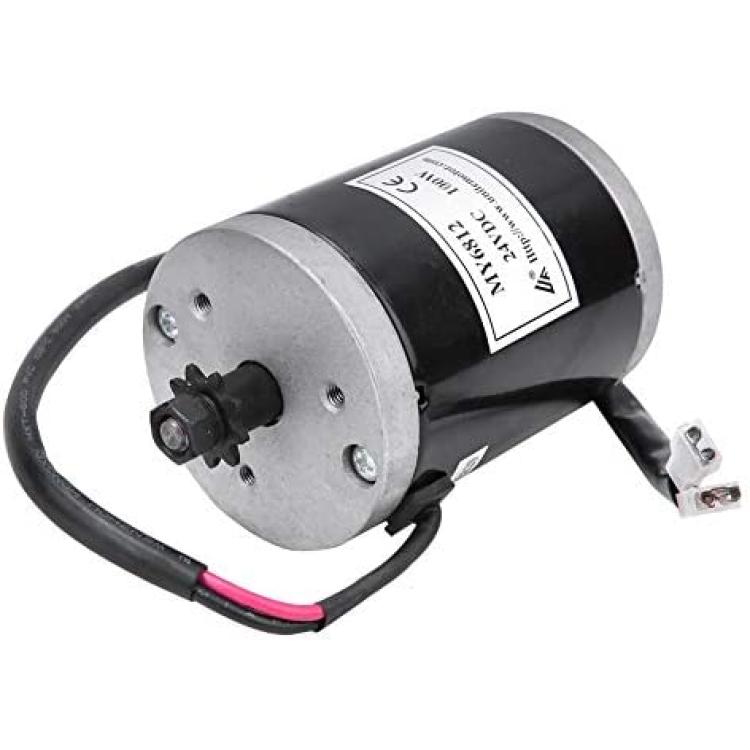

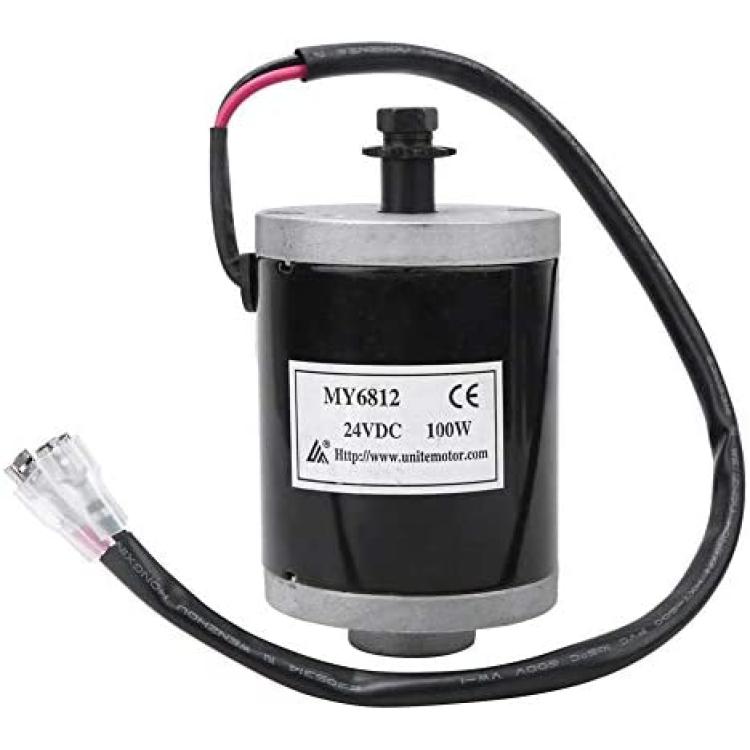

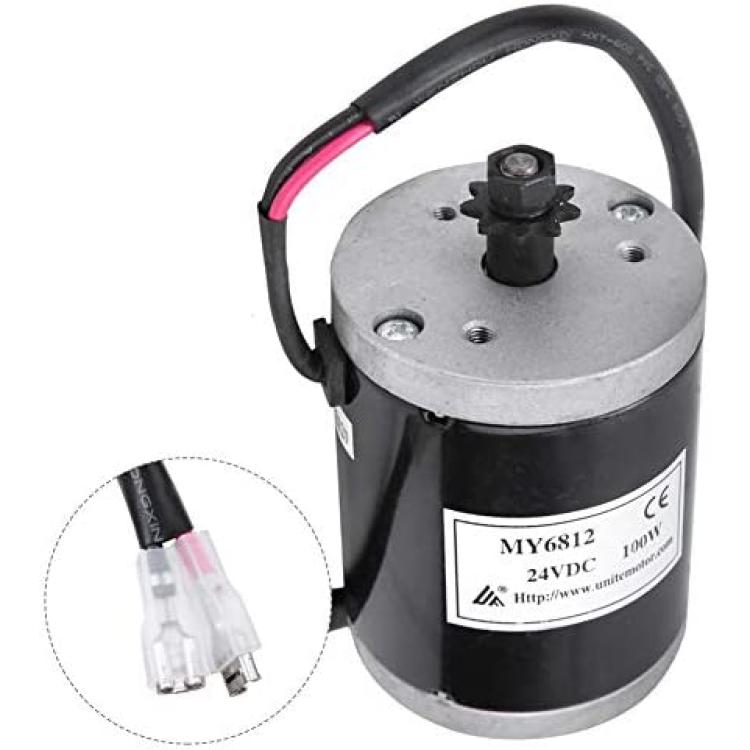

Tbest Electric Bike Motor, 24V 100W High Speed Small Brush DC Motor Electric Scooter Motor Set E Bike Accessory MY6812
Description
Specification:
Condition: 100% Brand New
Item Type: Brushed Motor
Model: MY6812
Material: aluminum
Color: as picture shown
Rated power: 100W (kW)
Rated voltage: 24 (V)
Main application: scooter, electric vehicle
Rated voltage range of 3C: below 36V DC
Rated current: <8, 5A
Rated speed (RPM): 2500±5%
Maximum speed (RPM): 3500±5%
No-load current: < 0.9A
Rated torque: 0.56 nm
Transmission: belt pulley, metal
Shaft diameter: 8mm (single milling slot 1mm)
Efficiency: > 68%
Motor length: 100mm/3.9inch
Motor diameter: 68mm/2.7inch
Shaft length: 28mm/1.1inch
Shaft diameter: 8mm/0.3inch
Motor fixed holes distance: 36mm/1.4inch
Sprocket: 25H 9 teeth sprocket
2800 RPM 6.0 amperes rated current 0.35 N.m
For: mini scooters or DIY
Package List:
