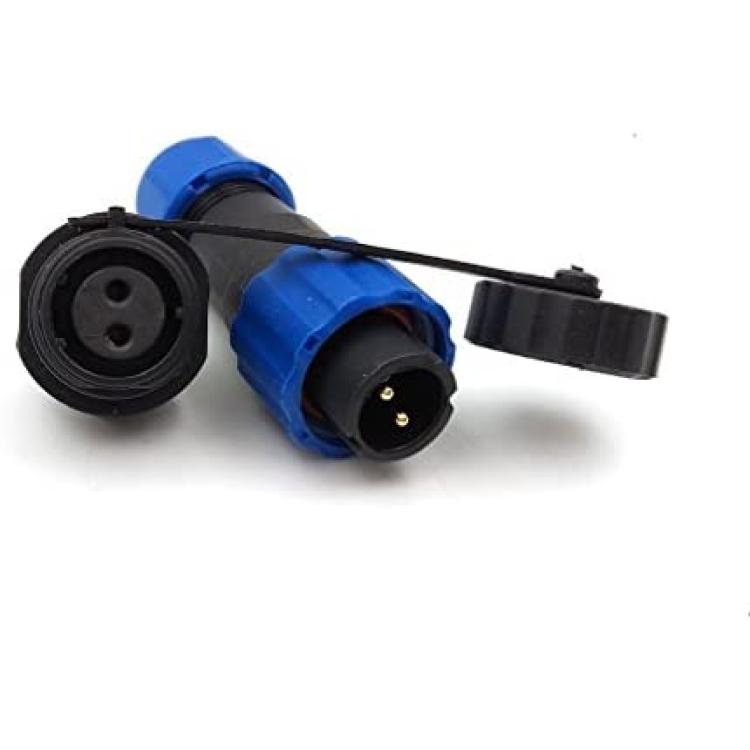

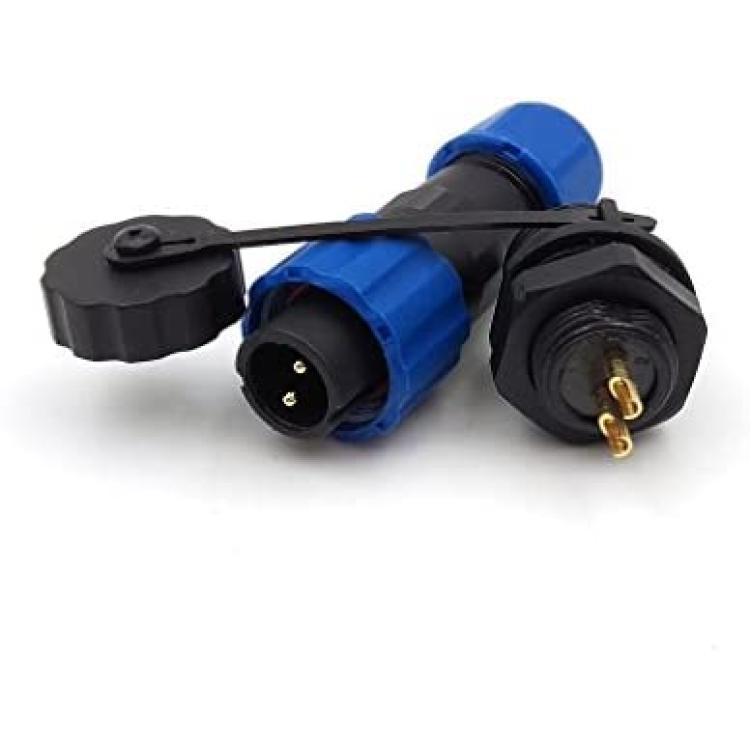

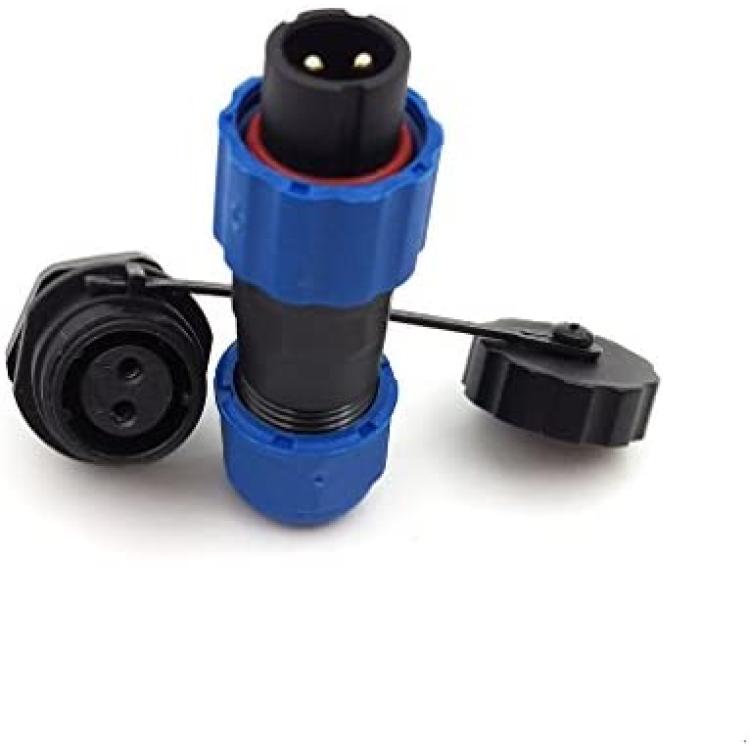

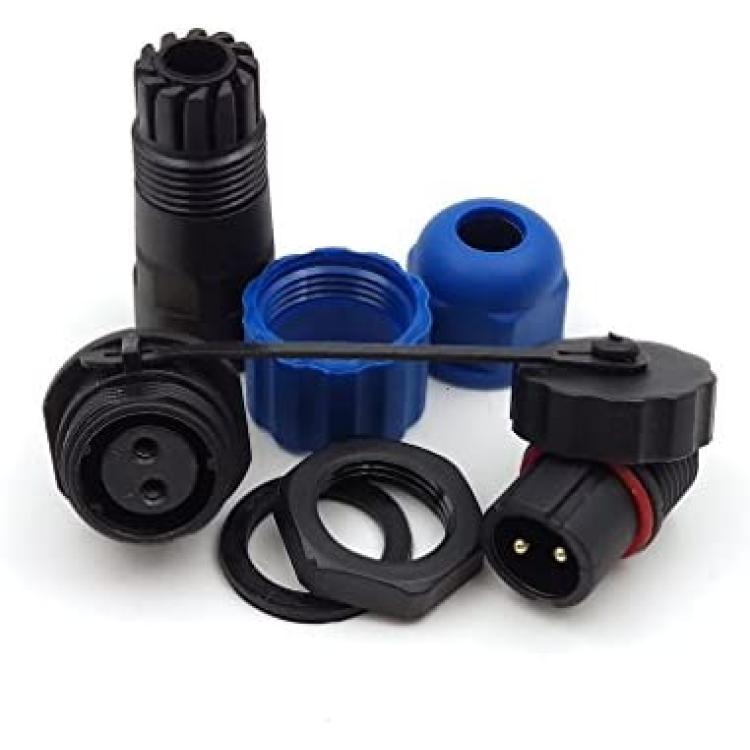

SD13 2pin Waterproof Power Connector, φ13mm 10A 380V High Voltage 1865mm Male Female Circular Power Connector, Heavy Industrial Aviation Air Plug Socket (2PIN, Panel Mount)
About this product
*SD13 2pin IP68 waterproof power cable connector in φ13mm panel cut.
*Pin number available: 1pin/ 2pin/ 3pin/ 4pin/ 5pin/ 6pin/ 7pin waterproof connector
*Panel mount:plug-female/ socket-male, 10A 380V industrial standard connector,
*Contact diameter: φ1.8mm *2, Cable diameter: φ4-7mm; Total Size: 6.5 x 1.8cm / 2.6" x 0.72" (L*φ)
*Professional and trusted waterproof power connector supplier
Description
Specifications
Material: Nylon
Welded pinhole: beryllium gold plated style
Sealing ring: silicone
Gender: male female
Connection: screw connection
1. Operating temperature: -45 ° C ~ 85 ° C
2. Relative humidity: 90% ~ 95% (40 ± 2 ° C)
3. Salt spray: 5% NaC1 mist in 48h
4. Sealing: IP68
5. Applicable cable diameter: ?4.0 ~ 6.5mm
6. Mechanical life: 500 times
7. Insulation resistance: 500m? under normal condition
8. Working current: ?2.8 Contact: 25A, ?1.8 Contact: 10A, ?1 Contact: 5A
9. Contact Resistance: ?2 Contacts 2m?, 1 Contact: 5m?
10. Working Voltage and Withstanding Voltage (Sea Level) Working Voltage: 250V (AC)/ Test Voltage: 1500V (AC)
