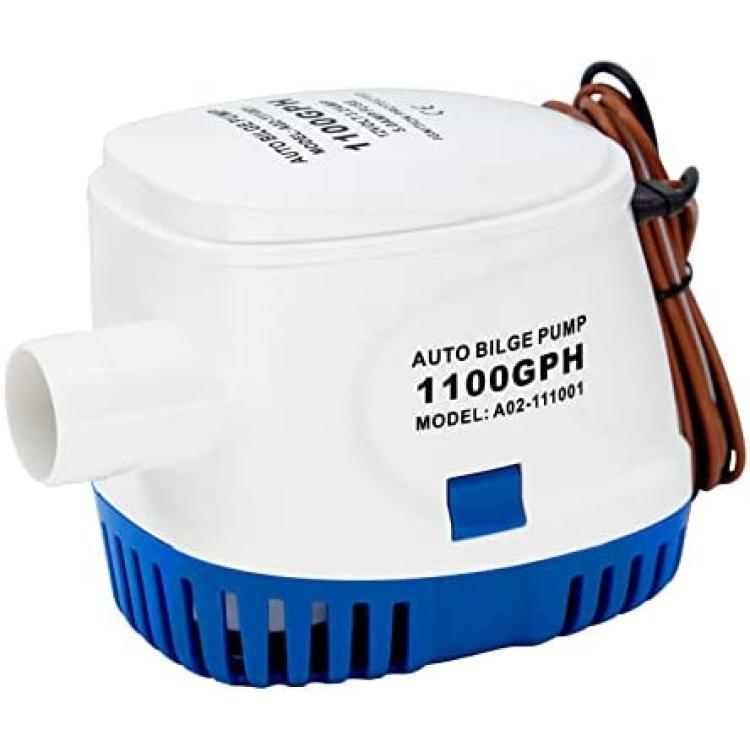

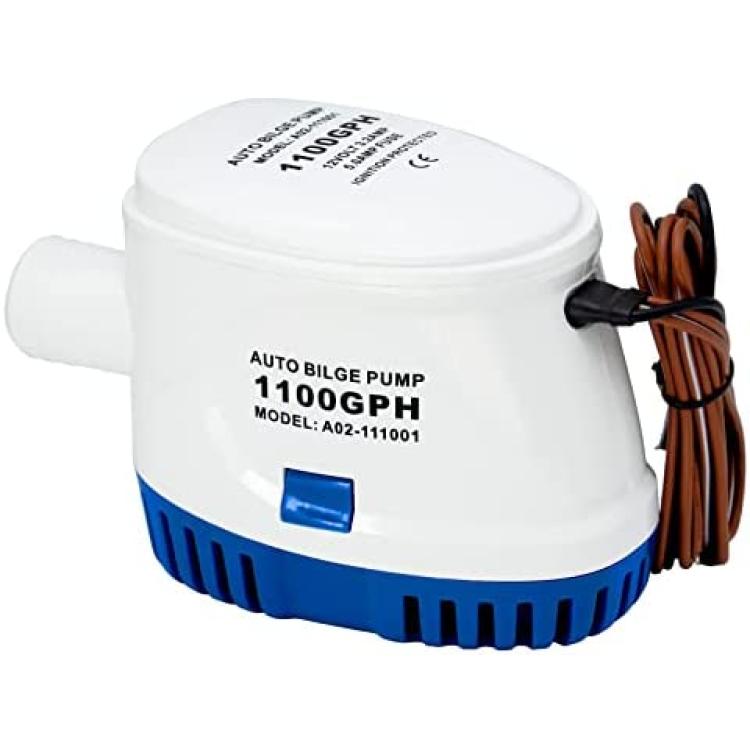

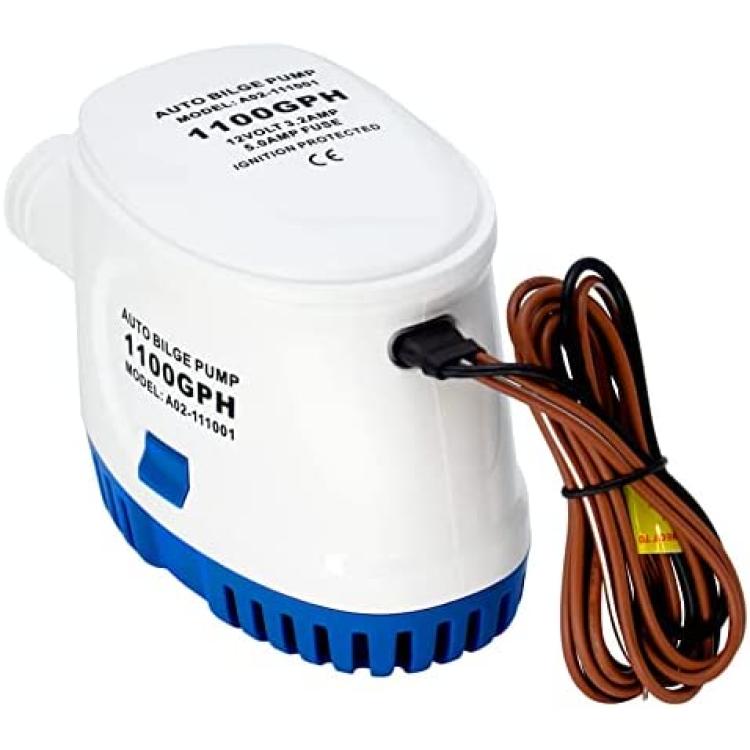

Sanuke Automatic Bilge Pump 12V 1100GPH Submersible Bilge Water Pump with Float Switch Auto Electric Motor Boat Accessories

Wiring Diagrams

Easy operation. Connect black wire to negative. Connect brown white wire to positive, brown no wiring.

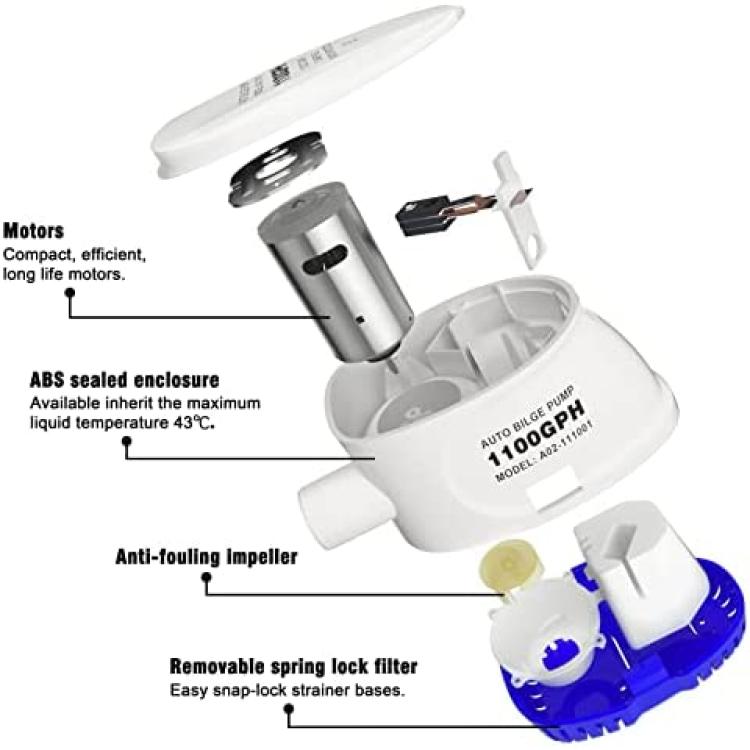

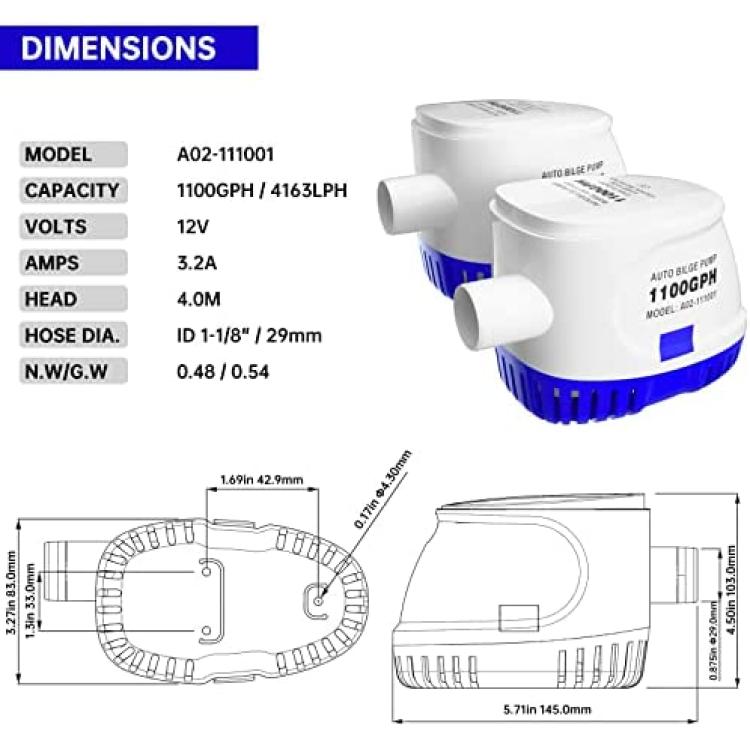

No separate float switch is neededFully automatic bilge pumpBuilt-in float switch systemNo power use until pump turns on when water risesBuilt with compact, efficient, long life motorIgnition and corrosion protected stainless steel shaft Dimension: 155*90*115mm Flow Rate: 1100GPH Voltage: 12/24V Current: 3.8/2.0A Wire Lead: 1M Weight: 0.47/0.52kg Outlet Diameter: 29mm/ 0.95 Inch (1-1/8")
