24V 12Ah E-Bike Lithium-Ion Battery, for 200W-500W Motors, with Hanging Bag, Built-in BMS Protection Board, Comes with A Charger
Share Facebook Twitter Pinterest Email

24V 12Ah E-Bike Lithium-Ion Battery, for 200W-500W Motors, with Hanging Bag, Built-in BMS Protection Board, Comes with A Charger

Brand: Multinn
Product Code: MM20717
Availability: Pre-Order, Inquiry Price
US$0.00
- +

Description

Product Details:

Rated voltage: 24V
Nominal capacity: 12Ah
Charging voltage: 29.4 volts

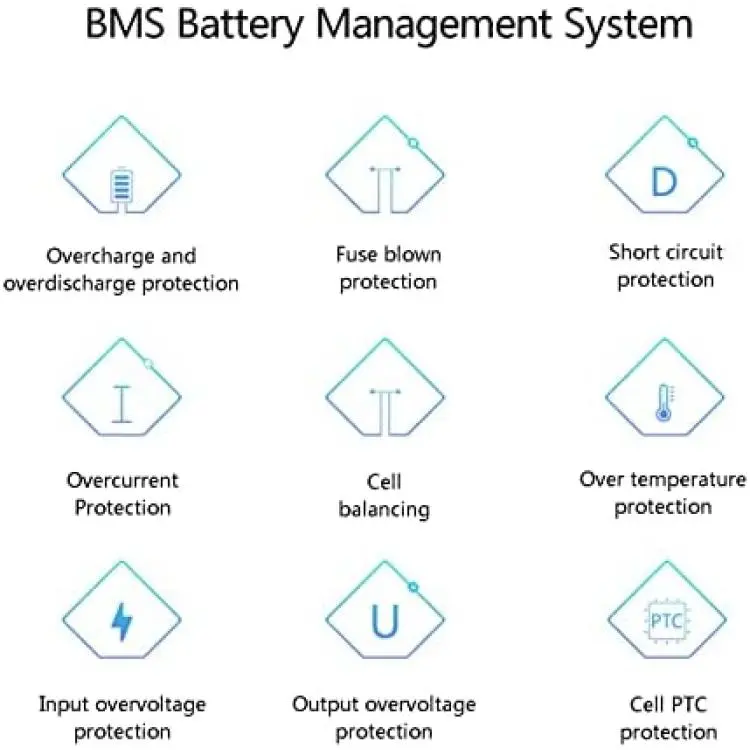

BMS: 20A
Discharge connector: T-connector
Maximum constant discharge current: 20 amps
Maximum peak discharge current: 40 amps
Standard charging current: 2A
Charging time under standard charging current: about 5-7 hours
Charging temperature range: -20-55?
Power: for 500W/400W/250W/200W motor

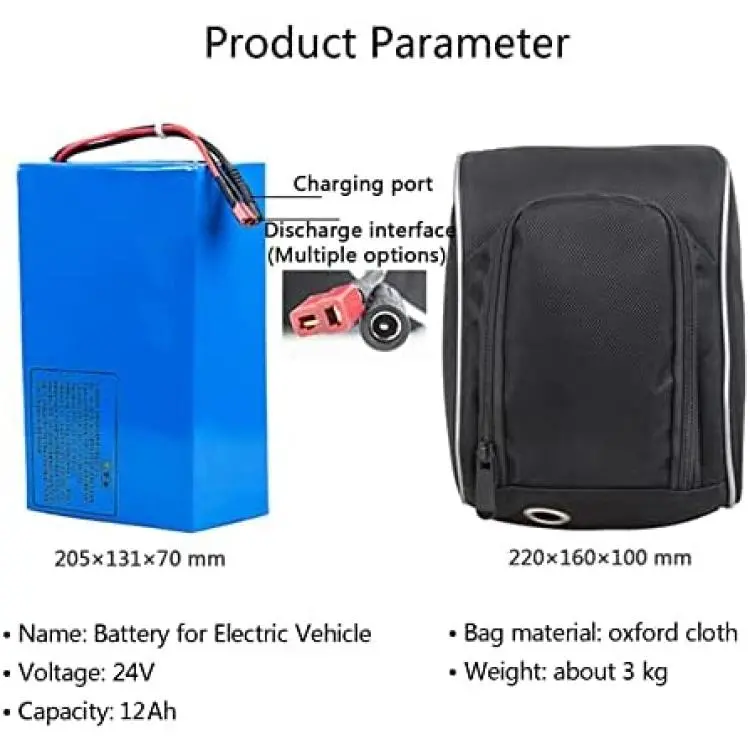

Battery size: about 205×131×70 mm
Bag size: about 220×160×100 mm
Battery weight: about 2.8 kg
Charger weight: about 0.35 kg

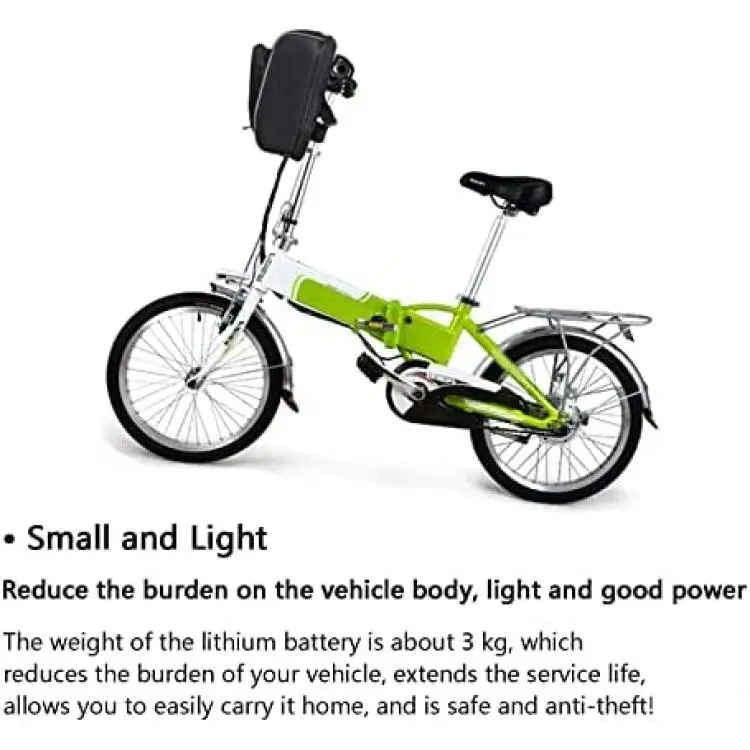

Scope of application of the battery pack: for 24V electric bike, electric bike, electric bicycle, electric tricycle, mountain bike, off-road bicycle, electric scooter, electric ride-on toy, electric wheelchair, etc

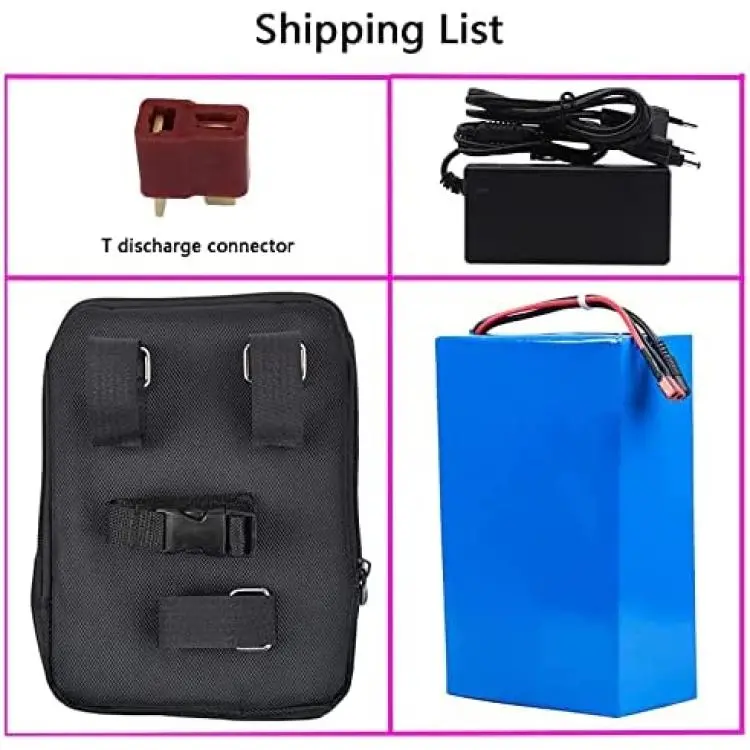

Packing List:

1 × 24V 12Ah battery pack
1 × 29.4V 2A charger
1 × oxford cloth bag
1 × solder T-connector (other connector types can be customized)
