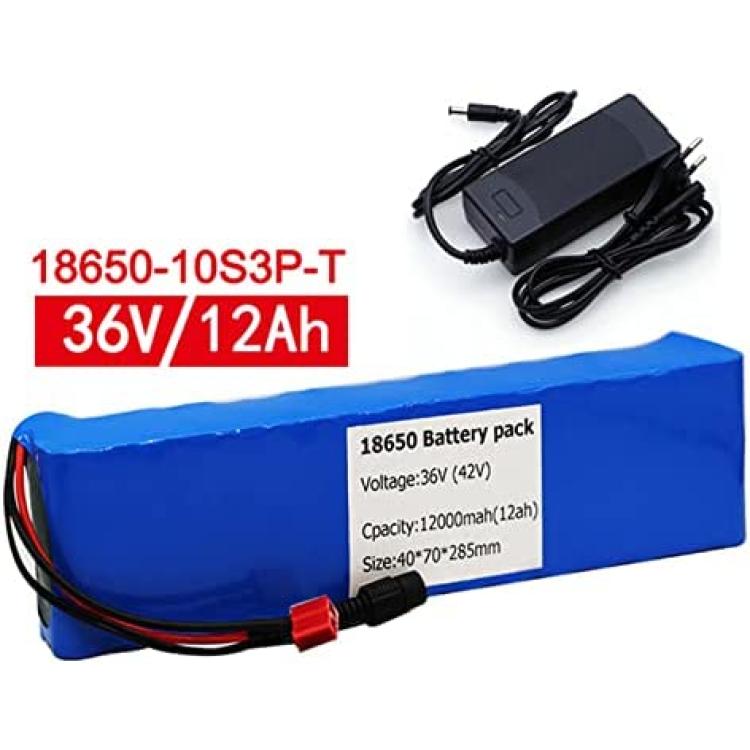

Jieoto 36V 12000mAh 10S 3P E-Bike Battery Pack Built-in 20A BMS Waterproof Lithium-ion Battery Pack with Charger Fit for 500W 350W 250W 200W E-Bike Scooters Motor

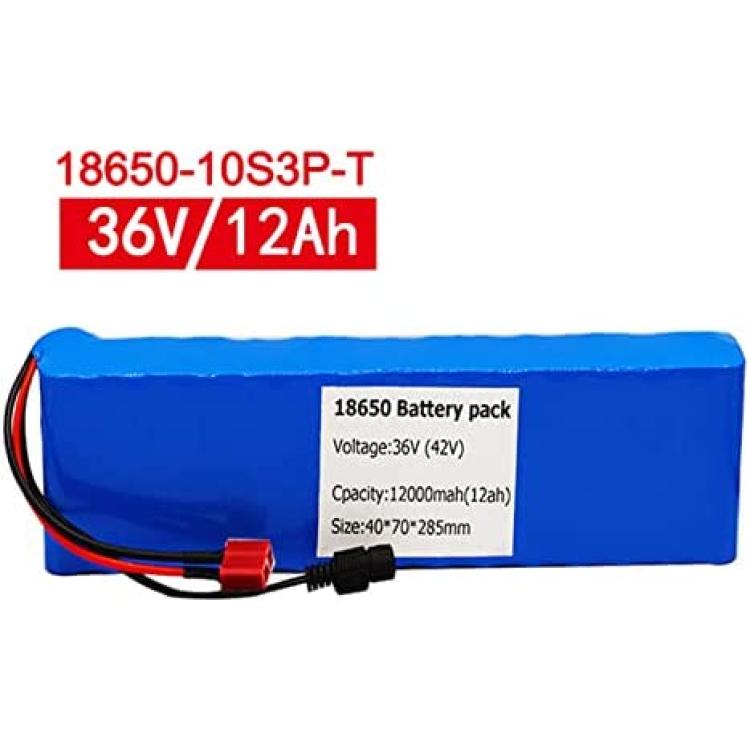

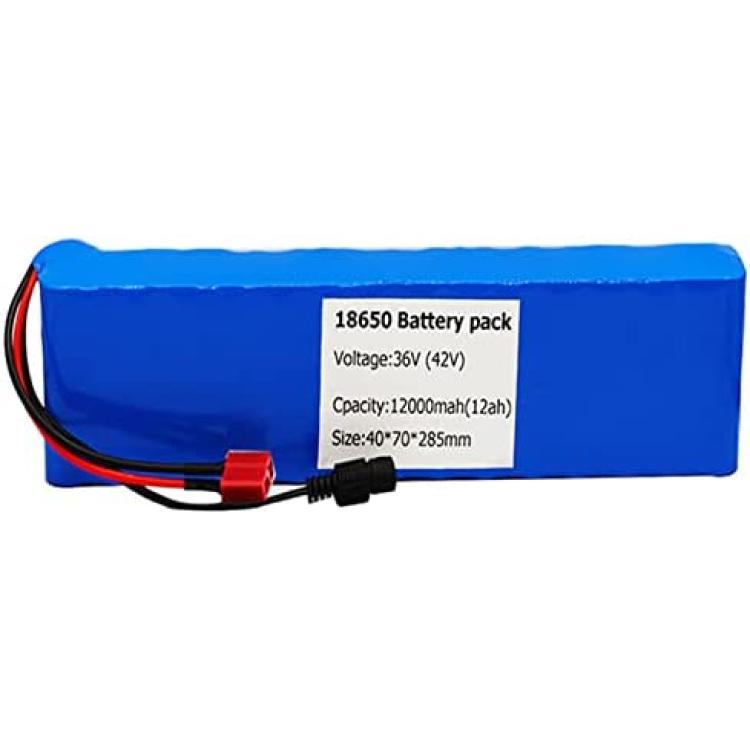

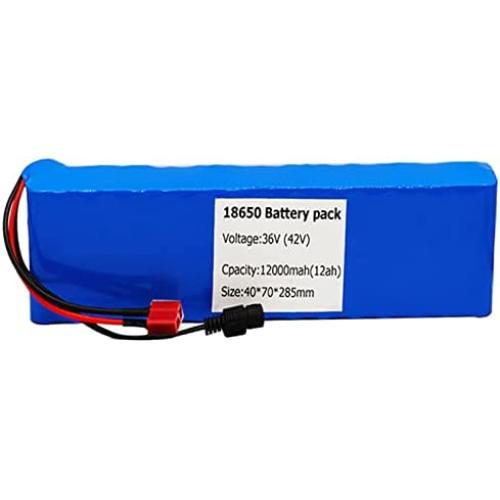

Battery 36V 10S 3P 12Ah 18650 500W Lithium-ion Battery, for ebike, electric bike, scooter, with 20A BMS

Battery parameters:
Rated capacity (ah): 12AH
Rated voltage (v): 36v
Technical description: 3.7v 18650 battery
Unit combination: 3-parallel 10 series
Number of batteries (parallel * series):30 pcs
Battery size: 40*70*280mm (± 2mm)
Weight: about 1.5kg
Discharge voltage (v): 30/ -1v
Charging voltage (v): 42v
Rated discharge current (a): 15A
Maximum instantaneous discharge current (a): 30A
Maximum continuous discharge current (a): 15A
Standard charging current (a): 2A
Charging time of standard charging current: about 5h
Maximum direct current charging: 5A
Charging temperature range: 0-45 ?
Discharge temperature range:-20-60 ?
Life cycle: Over 500 cycles, capacity and performance decrease as the number of cycles increases.

Notes for battery:
Avoid short circuit in the battery pack, do not remove the battery, do not put the battery in fire, do not immerse the battery in liquid (such as water, beverage, juice, coffee), do not replace the protective plate, do not use the damaged (such as: leakage, puncture, bulge, etc.) battery.

Notice:
? The size is manually measured, there may be some errors, please refer to the received package size, please understand.
? This shop provides professional consulting, customization, after-sales and other services for every customer. If you have any questions, please feel free to contact us, and we will reply to you within 24 hours.
