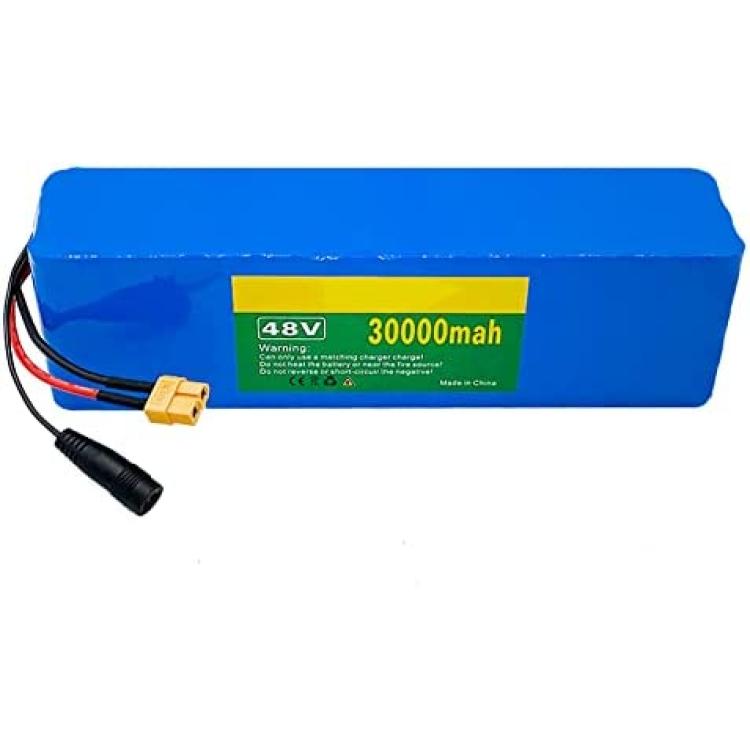

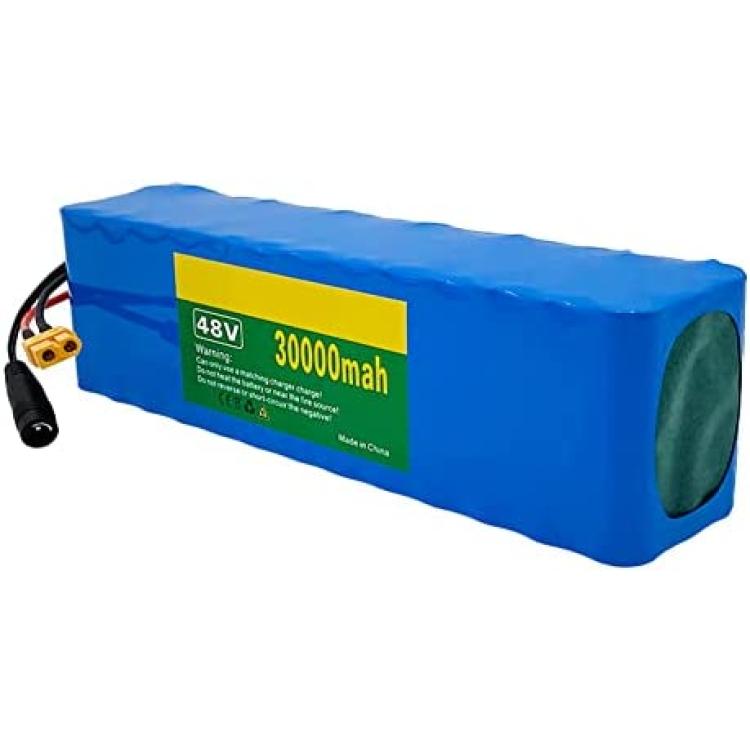

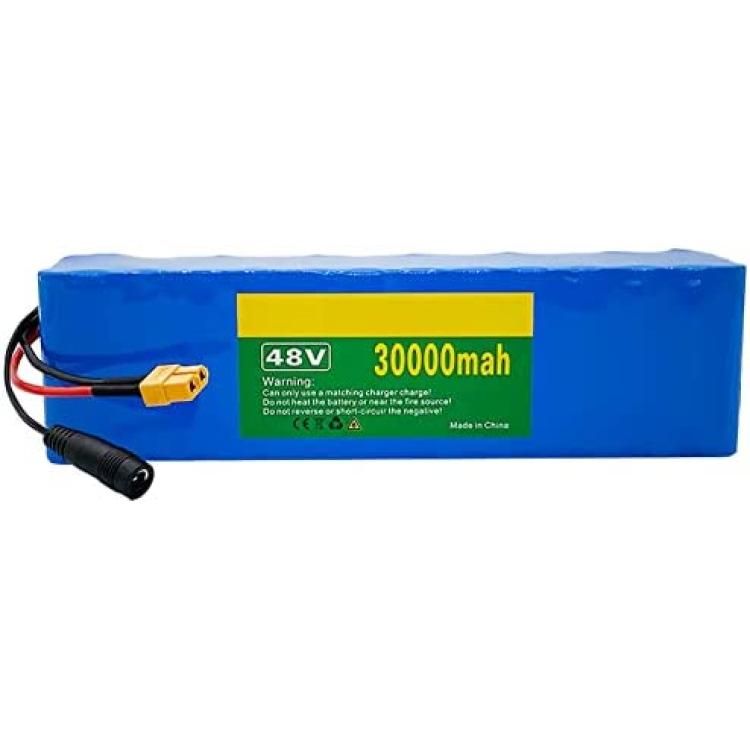

Jieoto Electric Bike Battery 48V 30AH Electric Bicycle Lithium Ion Battery with Charger, Ebike Battery for 1000W 750W 500W Electric Bicycle Scooter Motor

product parameters

Battery type: 18650

Single cell voltage: 3.7V

Combination: 13 series 3 and

Rated voltage: 48V Input voltage: 48V Output voltage: 48V

According to the combined capacity: 30000mAh (30Ah)

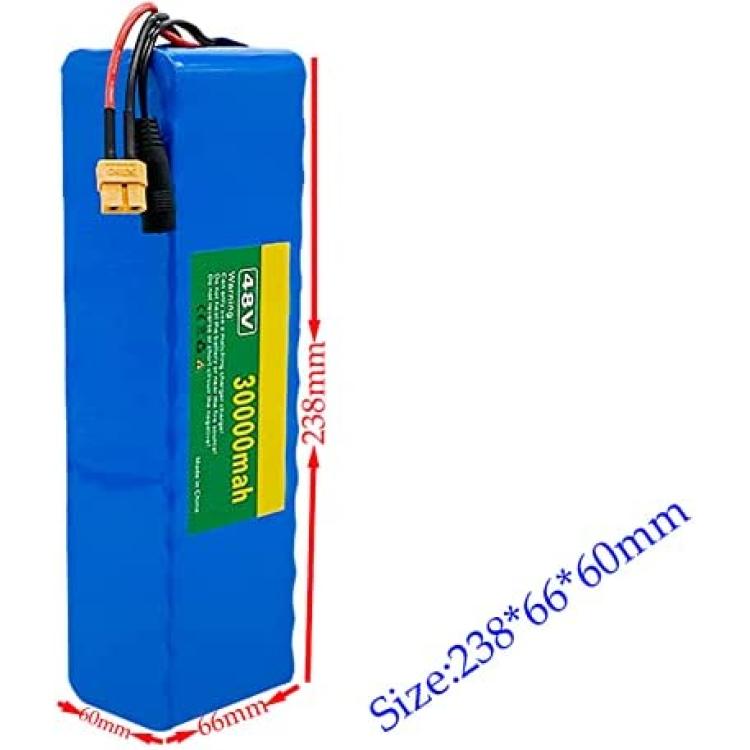

Battery Dimensions: 238*66*60mm (There may be a 10mm error) 3*13

Outside packing: Blue PVC

Inside with protection circuit: overcharge, over discharge, over current, short circuit protection!


The battery charging requirements:

1: the need for a dedicated lithium battery charger;

2: charging voltage: 48V

3: charging current: greater than or equal to 5A

The battery discharge requirements:

1: output 18 lines, length 200mm, red and black each

2: enter the socket line leads to a 2.1 length 200mm

3: rated discharge current: greater than or equal to10A

4: maximum instantaneous current: 40A

5: maximum operating current: 13A

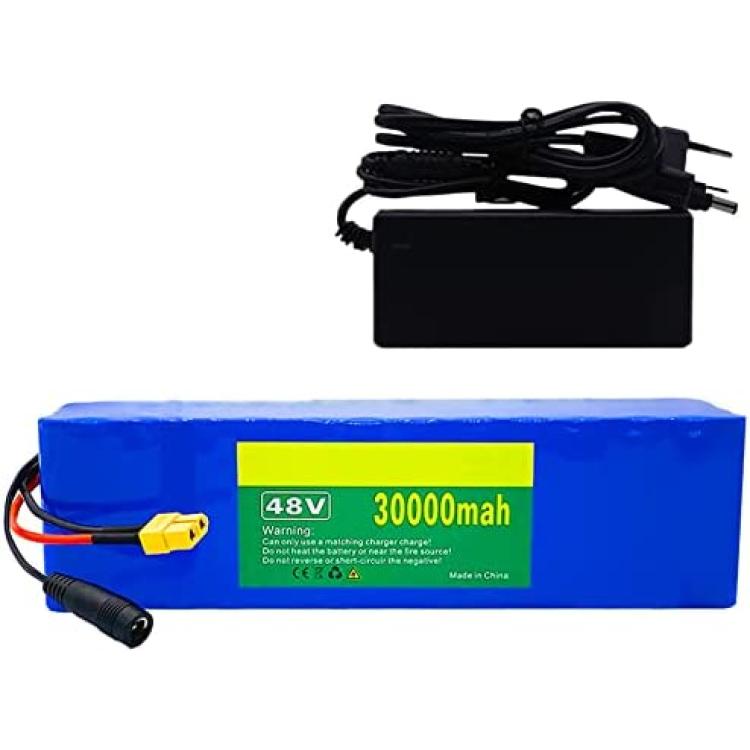

Shipping list:

1pcs 48V XT60 battery

1 pcs charger
