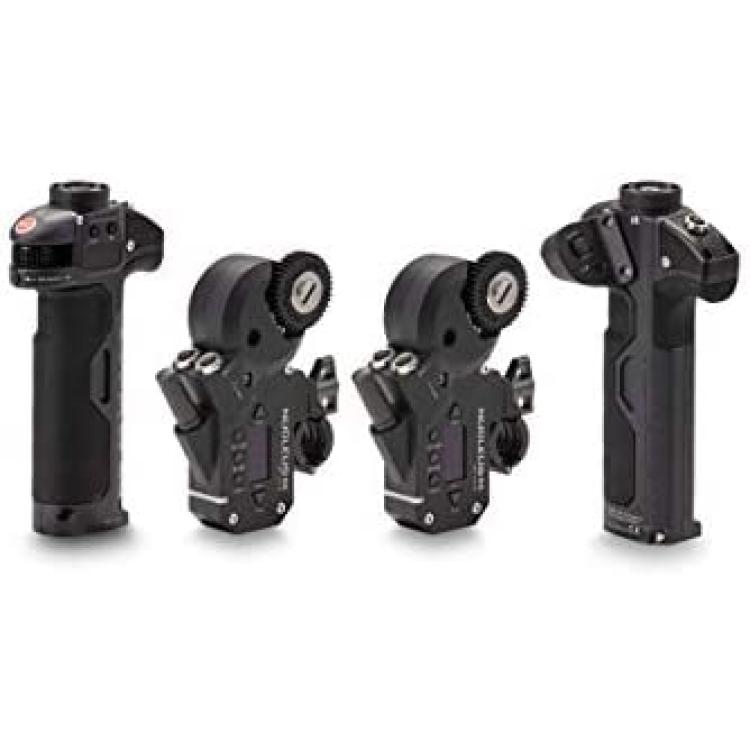

TILTA WLC-T03-K5 Nucleus-M Wireless Follow Focus Lens Control System Partial Kit V Left Handgrip WLC-T03-HL and Right handgrip WLC-T03-HR with Motor Nucleus-M Motor WLC-T03-M
About this product
*Tilta left-side Wireless Handgrip feature： Customizable focus, iris, and zoom control; Run/stop control for select cameras; ARRI-style rosette mounting and optional gimbal adapter mounts; 1000 wireless control range; 85, 180, and 310° knob rotation settings; LCD display and LED indicators’
*With a wireless control range of up to 1000, the Wireless Handgrip can be used for drone or car-mounted shots in addition to handheld configurations. Mount the handgrip using its ARRI-style rosette or use an optional adapter to mount to your gimbal. Use this grip with a separately available right-side grip for full focus, iris, and zoom control of cine-style lenses.
*Tilta Right Handgrip feature: Customizable focus, iris, and zoom control; Run/stop control for select cameras; ARRI-style rosette mounting and optional gimbal adapter mounts; 1000 wireless control range; 85, 180, and 310° knob rotation settings; LCD display and LED indicators;
*Motors fit standard 15mm and 19mm Rods . Ideal for Gimbal, Drone, and Shoulder-mounted setups.The motors are designed to clamp onto 19mm or 15mm rods (with the included rod bushings). This clamp-on design allows you to easily attach and detach the motors without needing to remove any other accessory from your setup. Every motor has a 0.8 mod, 35 tooth, 32 pitch gear attached, which is the standard gear size for cinema lenses. The torque of the Nucleus-M Motor at 14.8V is 2.5N·m
*Function as a one-person camera team & keep the form factor of your camera setup to a minimumThe motors allow for automatic calibration of the lens as well as manual calibration if you are using lenses that don’t have hard end stops at close focus and infinity.
Description
Tilta WLC-T03-HLÂ /HR Overview
The wireless range of both the hand unit and hand grips is 1,000 feet and with the planned upcoming transmission upgrade, the range can reach up to 1 ¼ miles! This makes it ideal for drone or car-mounted shots.
The hand grips are each powered with two 18650 rechargeable batteries(batteries NOT included). When fully charged, the batteries in the hand grips last up to 2 days, while in the hand unit they last up to 10 hours.
Remote start/stop is possible by plugging a compatible Nucleus-M R/S cable into the open 7-pin port of a motor. This then gives you R/S capabilities through the handles.
Tilta WLC-T03-MÂ Overview
The compact Tilta Nucleus-M FIZ Lens Control Motor features an integrated motor drive, eliminating the space of a separate drive box and enabling a quicker setup.
Power the motor using a separately available D-Tap cable and power source, or daisy-chain to another motor using a 7-pin cable.
The Nucleus-M wireless motor includes a cine standard 0.8 Mod drive gear and a 19mm rod adapter with a bushing for mounting onto a 15mm rod.
The motor features automatic or manual calibration, a display window, and high, medium, and low torque settings.

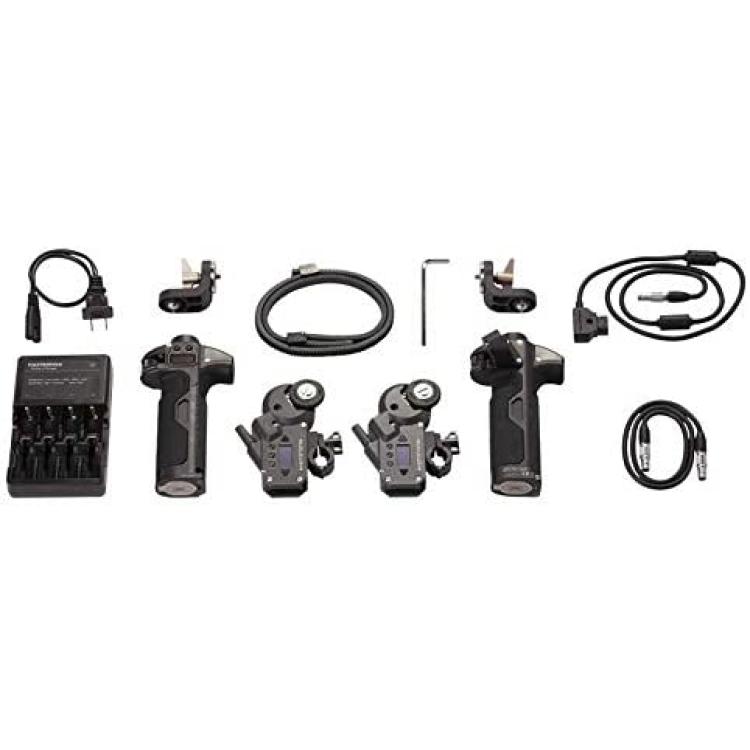

Packing list:
Partial Kit V
1.(1) Left wireless handle
2.(1) Right wireless handle
3.(1) Brushless wireless motor with 19mm rod support and 15mm rod bushings
4.(1) 55cm 7-pin to 7-pin motor connection cable
5.(1) Photographic Lens Follow Focus Adapter
6.(1) 74cm 7-pin to P-tap motor power cable
7.(1) Hand Grip to Arri Standard Rosette Adapters
8.(1) Wireless FIZ hand unit strap
9.(1) 18650 quad battery charger
