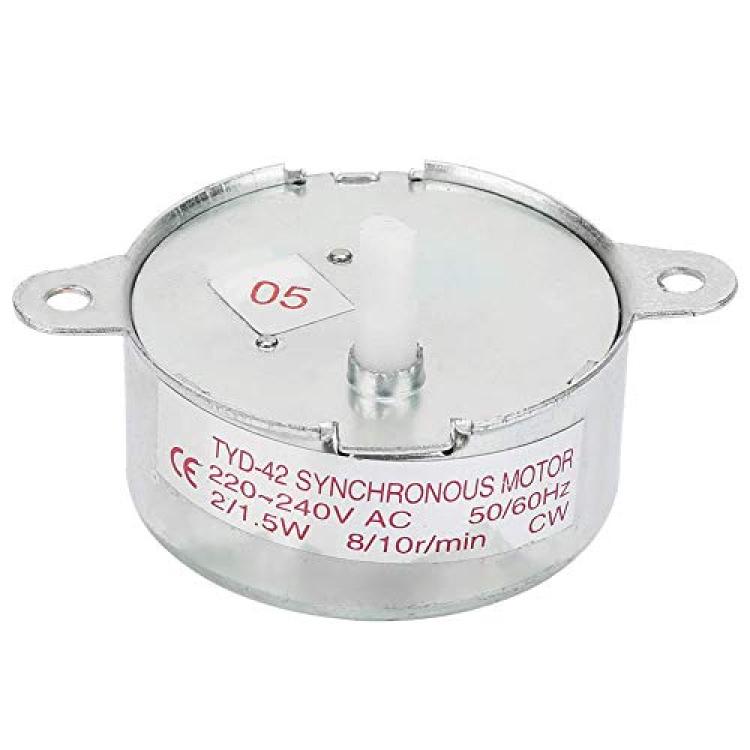

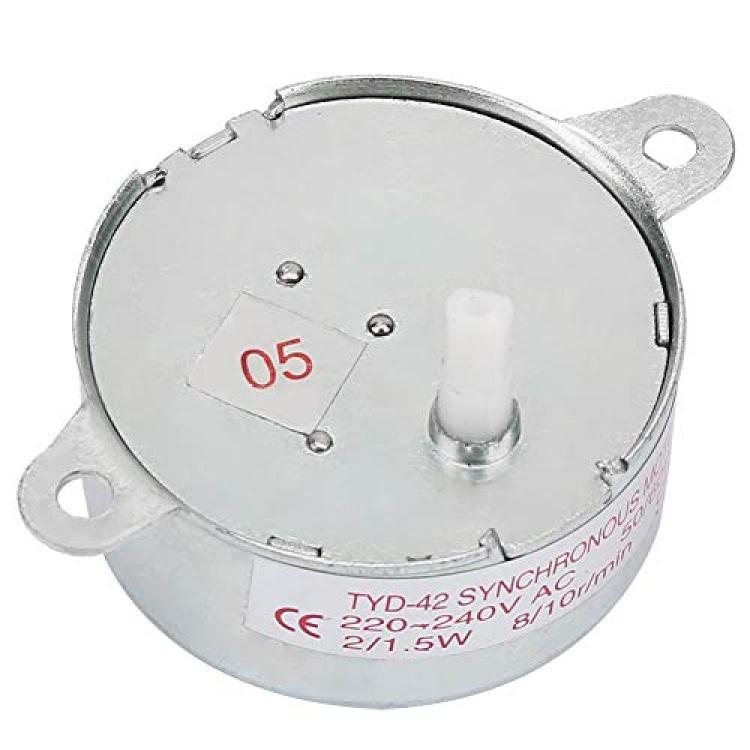

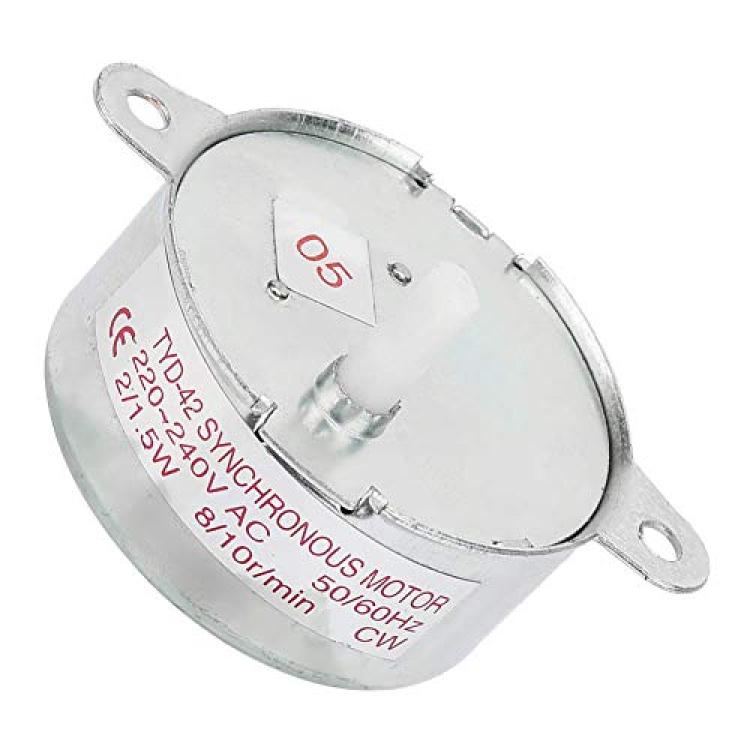

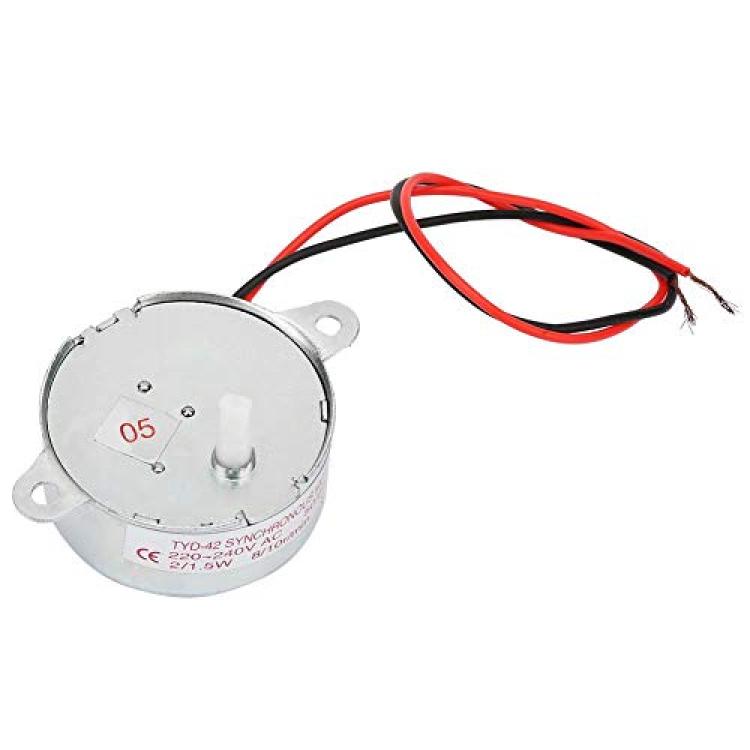

Synchronous Motor, AC 220V 20mA 2W 1.6NM TYD-42 High Torque Permanent Magnet Synchronous Motor Industrial Control Motor (8/10rpm)

Feature:
Unlike other motors, permanent magnet motors do not require current to support their magnetic field, so they are smaller, lighter and provide more torque. The motor can respond quickly, start and stop quickly, and meet the high requirements of industrial control. Products are widely used in various types of industrial automation control equipment, such as: packaging equipment, laser equipment, security monitoring equipment. High torque, rated torque is 1.6NM. The product has passed UL certification and the product quality is reliable.

Specification:
Product model: TYD-42
Product Certification: UL
Rated voltage: AC 220 V
Current: 20mA
Rated power: 2W
Rated speed: 5/6 rpm; 8/10 rpm(Optional)
Rated torque: 1.6NM
Dimensions: D 54 x 32.3
Shaft diameter: 3
Insulation class: E
Noise: <= 40db
Temperature rise: <= 60k
Operating temperature: -15 to 40
Insulation withstand voltage: AC 1500V 50HZ/Min

Package list:
1 * Motor

Note:
The actual product color may deviate from the photo due to light.
There may be a slight deviation in the measurement of product.
