Jimi Original ZTW Black Widow 2204 2300KV CW/CCW Brushless Motor with Built-in 18A ESC 2 in 1 Series for QAV250 Racing Drone

Model Number : 2300KV
Material : Composite Material
RC Parts & Accs : Motors
For Vehicle Type : Helicopters
Tool Supplies : Assembly Category
Technical parameters : Value 2
Four-wheel Drive Attributes : Motors
Remote Control Peripherals/Devices : Motor
Use : Vehicles & Remote Control Toys
Brand Name : GOOLSKY
Upgrade Parts/Accessories : Motor

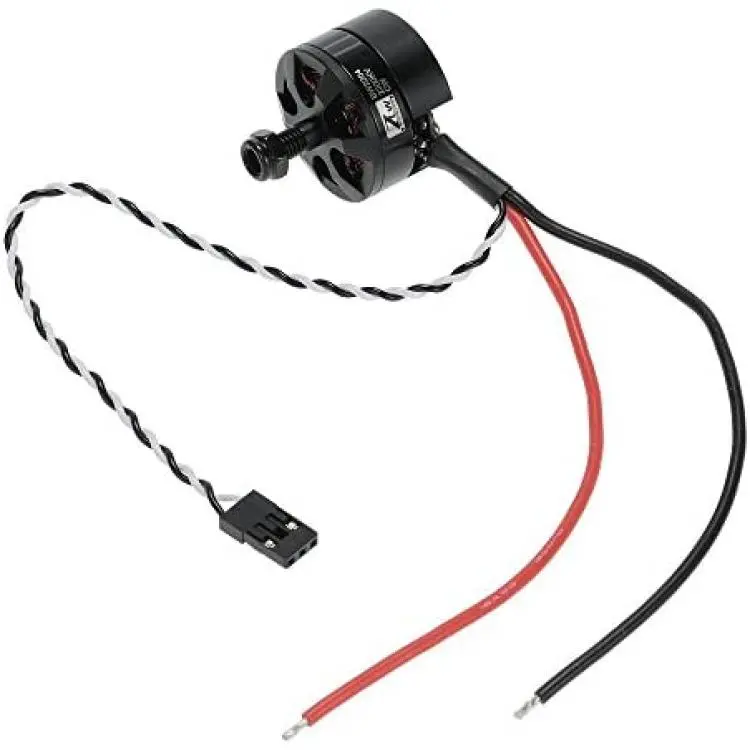

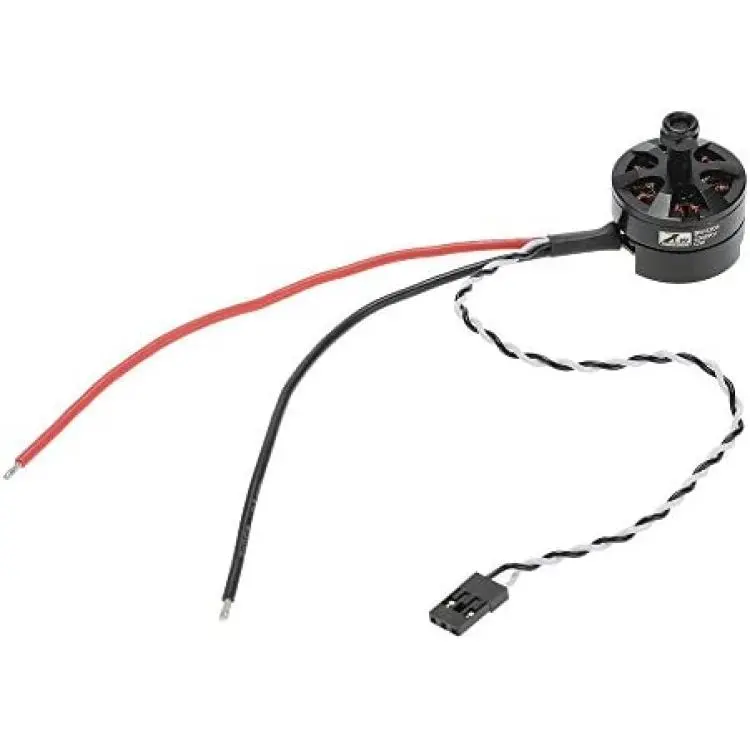

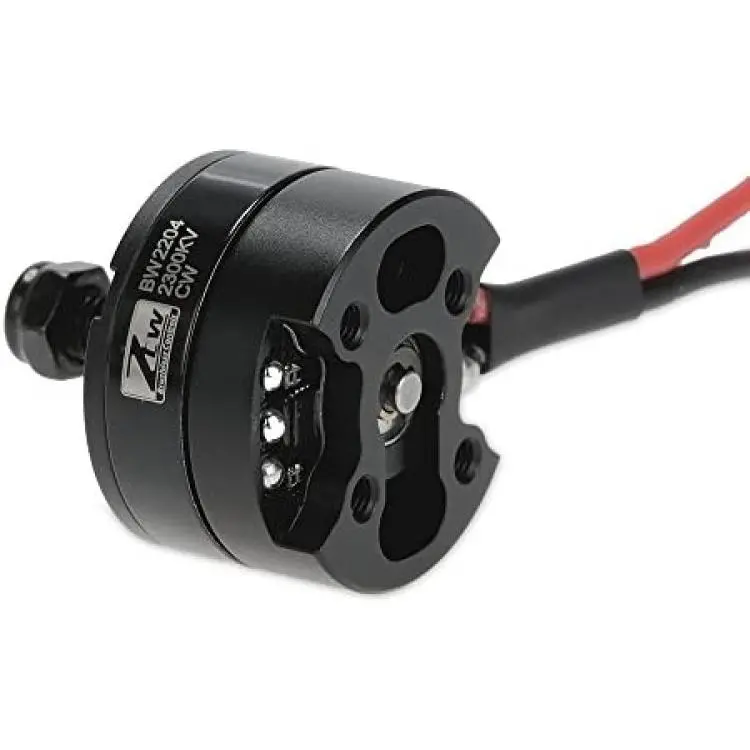

Original ZTW Black Widow 2204 2300KV CW/CCW Brushless Motor with Built-in 18A ESC 2 in 1 Series for QAV250 Racing Drone

If you still scratch your head when you mess around the cables in the limited space on 250 frame kit. You should look at this product. ZTW black widow 2204 2300KV brushless CW motor, with integrated 18A ESC for saving weight and space on quads. No more hassle and headache with soldering or wiring. With this powerful combo, buliding a nice and clean quad will no longer a engineer skill.
Features:
Low internal resistance
Fast and instant response
Dynamic balanced rotor, better efficiency
Flash with oneshot firmware, faster refresh rate
2204 2300KV CW motor with integrated 18A ESC
Imported bearings give your longer life span and quiet rotation
Specifications:
Brand: ZTW
ESC continuous current: 18A
ESC burst current: 28A @ 10s
BES output: NO
Input voltage: 2-3s LiPo battery
Motor KV: 2300KV
Max watt: 160W
Resistance: 0.0910?
Rotation: CW/CCW
Recommend prop size: 5-6in
Programmable: Yes
Battery wire length: 145mm
RX wire length: 205mm
Stator diameter: 22mm
Stator length: 4mm
Rotor diameter: 27mm
Shaft diameter: 5mm
Weight: 35g
Package Information:
Package size: 7.5 * 6 * 4cm / 3 * 2.4 * 1.6in
Package weight: 58g / 2oz
Gift box package
Package List:
1 * ZTW 2204 2300KV brushless CW/CCW motor with build-in 18A ESC
1 * English manual
