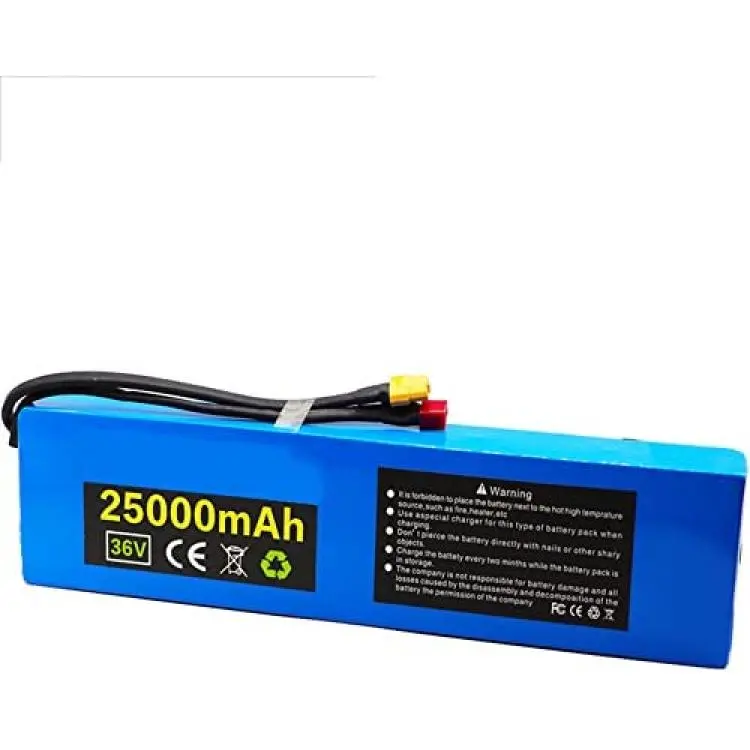

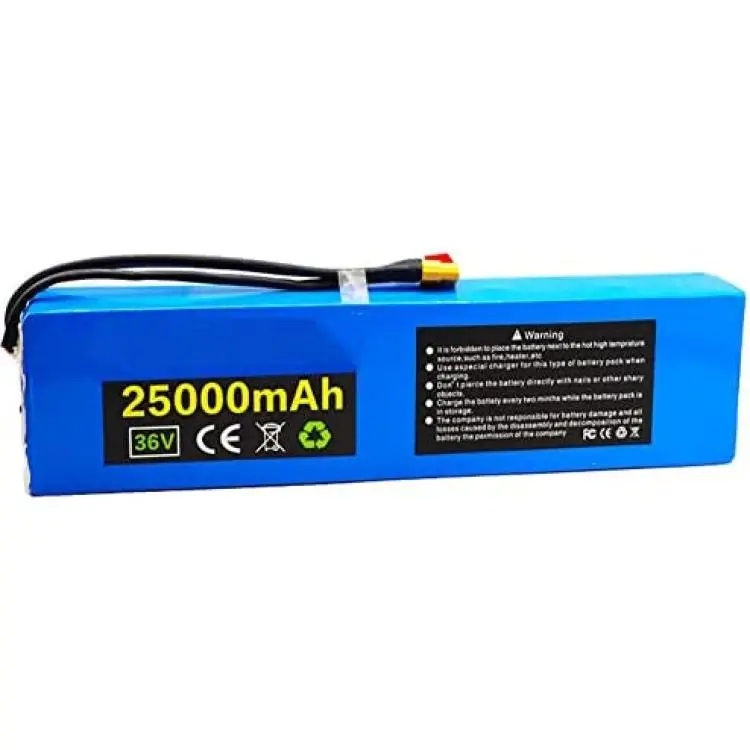

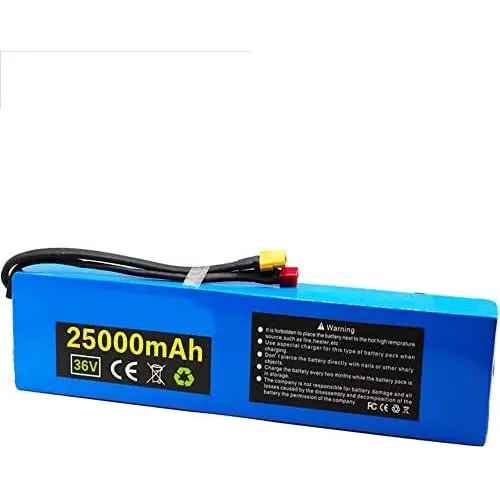

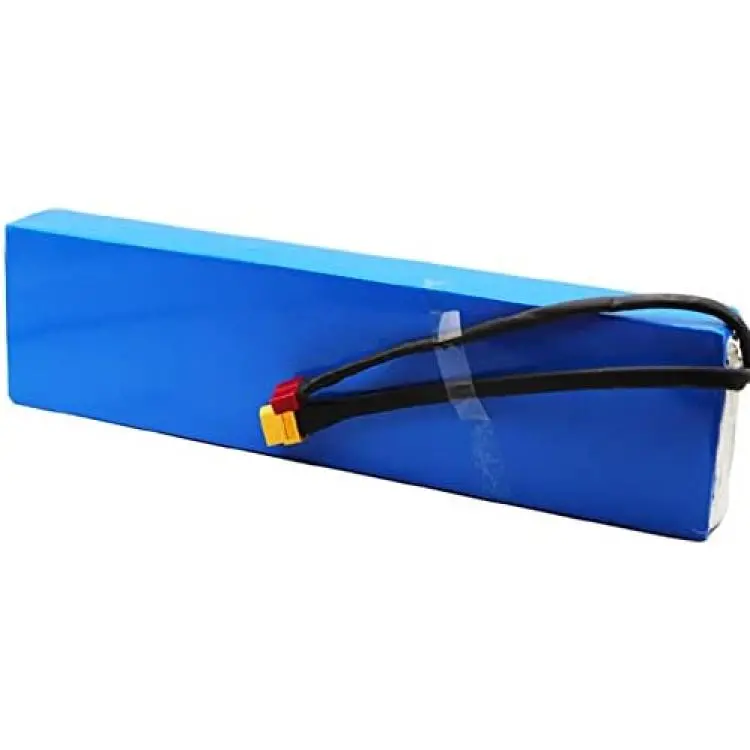

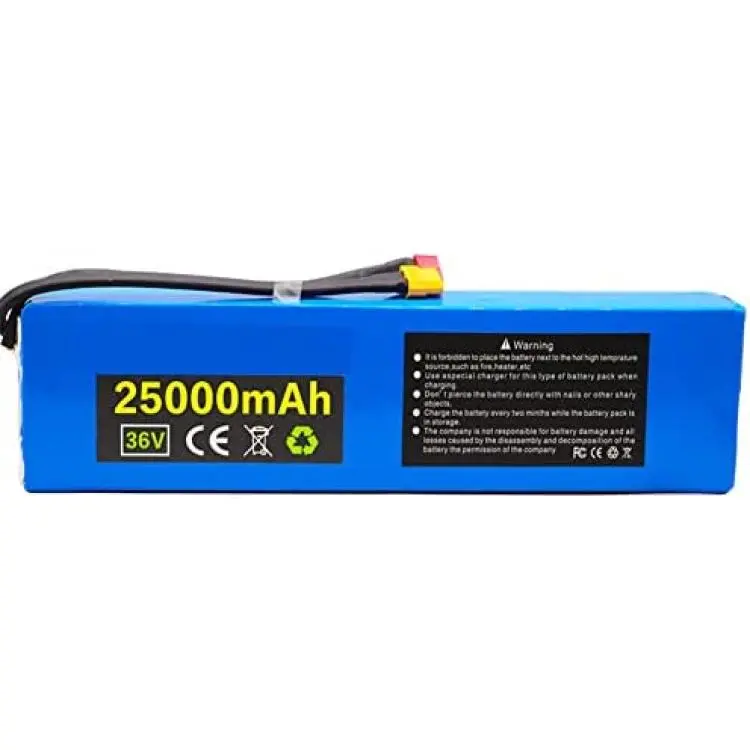

YUWYP 36V 25Ah 10S3P Battery E-Bike Battery Pack 18650 Li-Ion Battery 500W High Power E-Bike Bicycle Scooter Motor
Description
Ebike 36V 25Ah Battery ebike battery pack 18650 Li-Ion Battery 500W High Power and Capacity 42V Motorcycle Scooter
Battery Parameters:
Battery Model: 36V 25ah
Rated capacity (ah): 25ah
Rated voltage (V): 36 V
Resistance of the source of cells (M?): about 20 PTO)
Technical description: 3.7 V 18650
Cell combination: 3-parallel 10-series

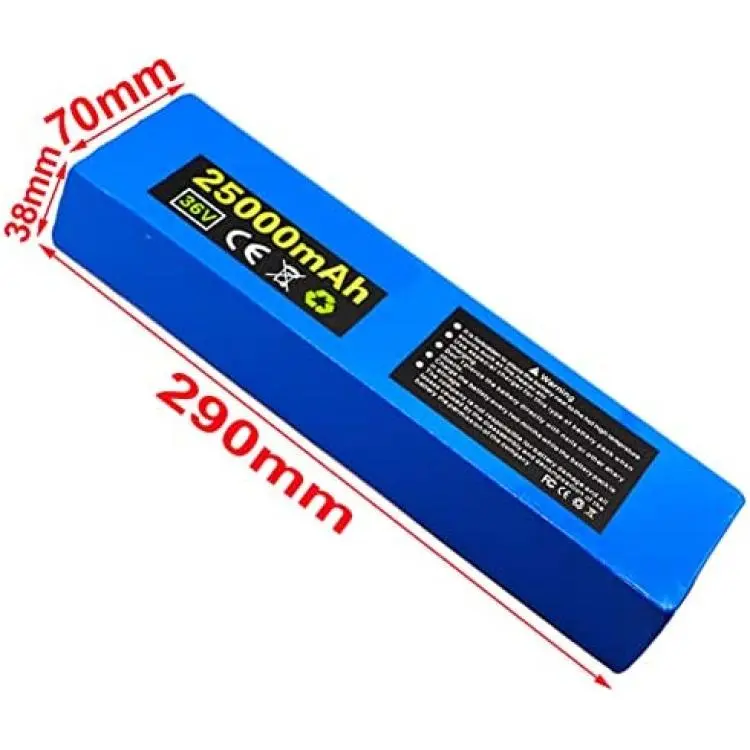

Battery size: 40*70*290mm( Manual measurement, there will be deviation)
Number of cells (parallel * series): 30 pcs.
Discharge voltage (V): 30 +/- 1 V
Charge voltage (V): 42 V
Rated discharge current (a): 15?
Instantaneous maximum discharge current (a): 30A
Maximum Continuous Discharge Current (A): 15a
Charge mode: CC / CV
Standard charge current (A): 2A
Charging time under Standard charge current: 4 h
Maximum Continuous Current Charge (A): 5A
Charging time with fast current charging: 2 h
Charge temperature range: 0-45 ° c
Range of discharge temperature: -20-60 ° c
Battery weight about: 1.8kg
Parts included:
1* 36 V 25ah lithium battery, built in 15a BMS
1* charger
