Wnicek 72V 20AH 30AH 40Ah E-Bike Battery Li-ion Triangle Battery Pack with Fast Charger and Triangle Bag for Electric Motorcycle/Electric Bike 500W-2800W Motor Lithium Battery
Description
72V Battery Pack Parameters:
Nominal capacity: 20A?20000mAh?
Cell model: 3.7V 5Ah Cell
Battery size: 337*310*206*71*48*90mm
Motor power: for 500W-1700W motor
Total weight: about 7.7kg
Maximum constant discharge current: 30A(BMS)
Maximum peak discharge current: 60A (BMS value*2)

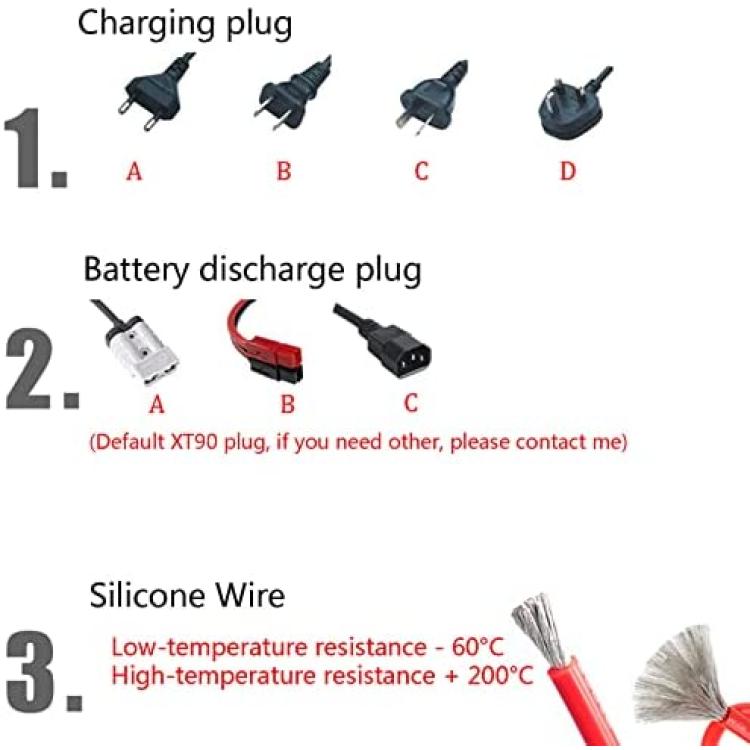

Charging and discharging plug: XT60 charging and discharging with the same port plug
Charger: with 3A fast charger
Nominal capacity: 30AH?30000mAh?
Cell model: 3.7V 5Ah Cell
Size: 400*310*235*65*65*90mm
Motor power: for 500W to 2800W motors
Total weight: about 10.3kg
Maximum constant discharge current: 50A(BMS)
Maximum peak discharge current: 100A (BMS value*2)

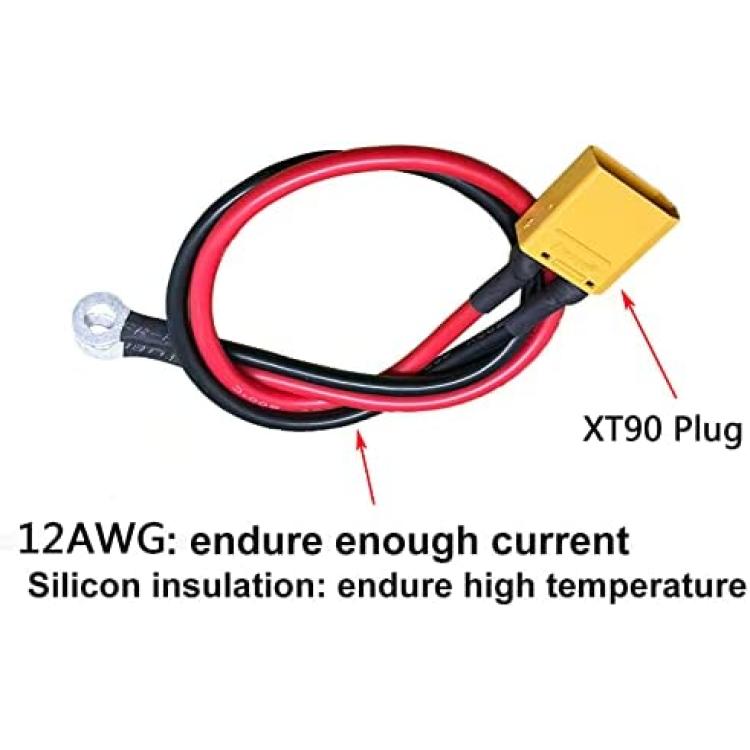

Charging and discharging plug: XT90 charging and discharging with the same port plug
Charger: with 5A fast charger
Nominal Capacity: 40Ah?40000mAh?
Cell model: 3.7V 5Ah Cell
Size: 400*340*260*108*88*90mm
Suitable power: for 500W to 2800W motor
Total weight: about 14kg
Maximum constant discharge current: 50A(BMS)
Maximum peak discharge current: 100A (BMS value*2)
Charging and discharging plug: XT90 charging and discharging with the same port plug
Charger: with 5A fast charger
Working voltage: 72V
Charging cut-off voltage: 84V
Discharge cut-off voltage: 60V
Cycle life: more than 1000 times
Charging time: about 6-12 hours
Protection function: overcharge, over-discharge, overcurrent, equalization, temperature control, etc.
List:

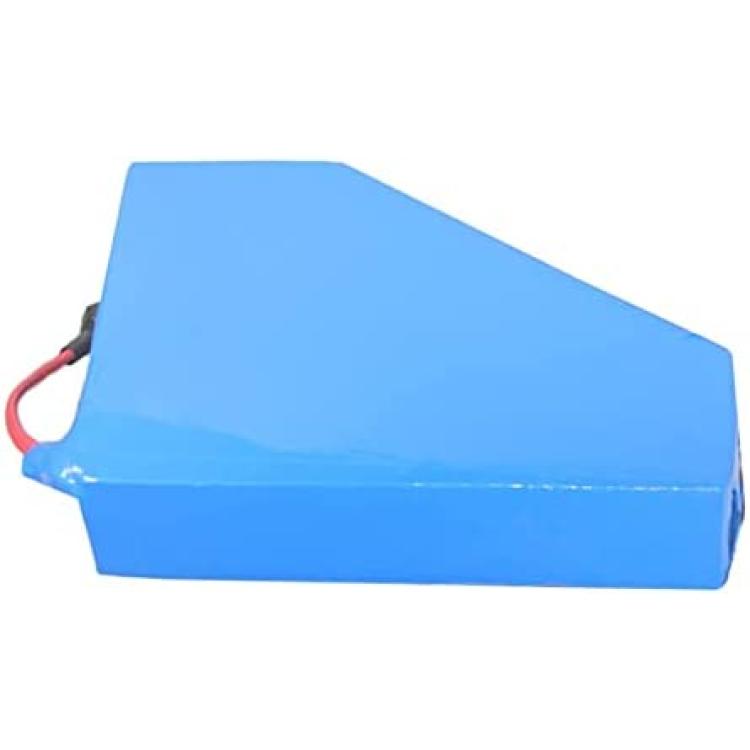

1* 72V E-Bike battery pack
1* 84V Charger

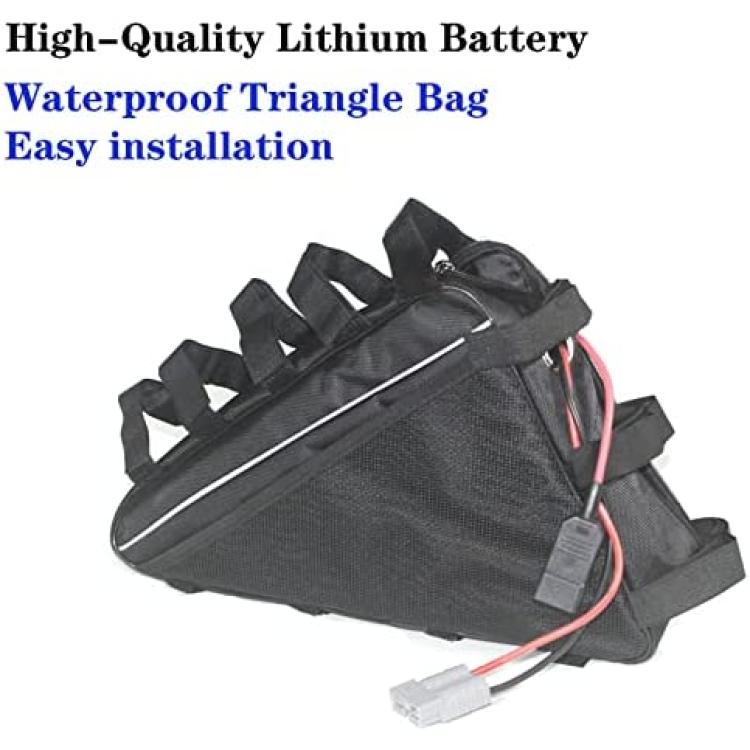

1* Triangle waterproof bag (please contact me if you don't need a bag)
