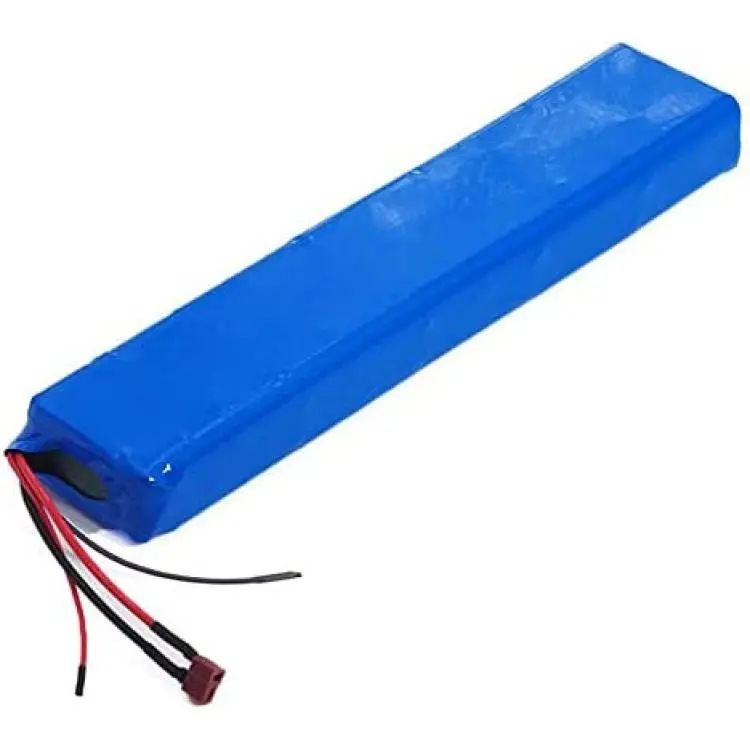

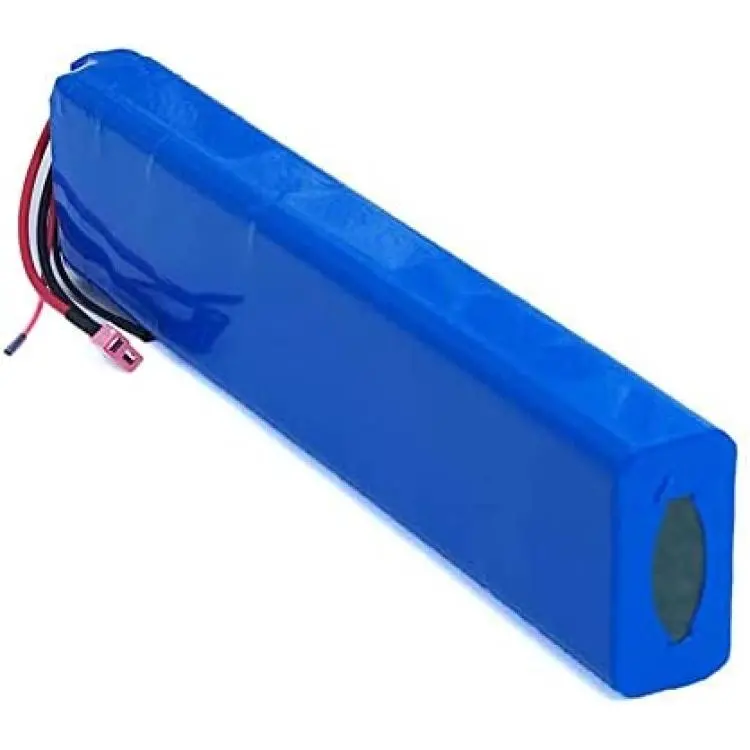

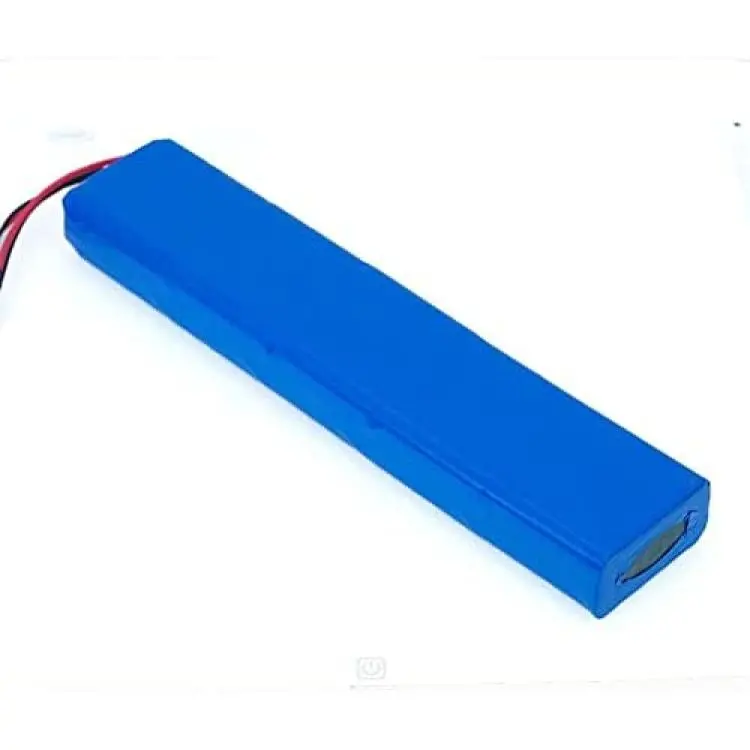

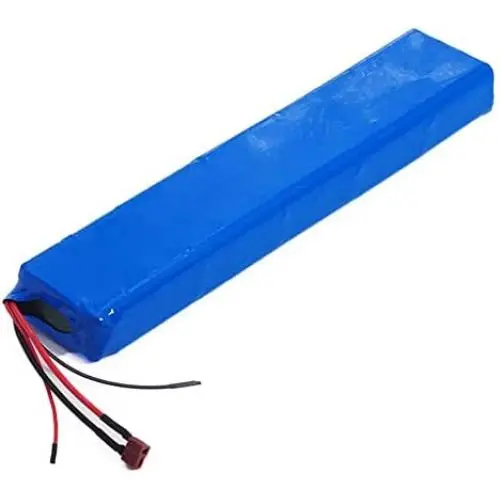

YUWYP 36V 10S4P 10Ah 42V 18650 Strip Lithium ion Battery Pack for ebike Electric car Bicycle Motor Scooter with 20A BMS 600W
Description
Basic Information
- Cell count: 40PCS
- Cell type: VC 18650 2500mAh
- Configuration: 10 sets in series (10S) of 4 cells (4P) in parallel , Built-in BMS protection,With overcharge, over discharge, short circuit protection
- Pack: PVC
- Weight: 1900g
- Width: 75mm
- Height: 29mm
- Length: 435mm
* Manual measurement, there will be deviations.
Energy
- Nominal Voltage: 36V
- Output Voltage Range: 27.5v - 42v
- Nominal Capacity: 10Ah
- Nominal Power : 360Wh
*Test results will be affected by test conditions (eg, temperature, wire loss, test equipment, test parameters, etc.), please perform multiple tests and take the average of the results to reduce the deviation.
At a temperature of 25 , the deviation between the pure resistance discharge test result and the nominal data is controlled within 10%, which is normal.
Charge mode: CC CV
Charge current 5A max
Discharge
- Continuous discharge current 20A
Cycle Life:
- More than 500 times, Capacity and performance will decrease as the number of cycles increases.
Application:
Electric bicycles, scooters, etc.
Package includes:
1 *battery pack
1 *charger
