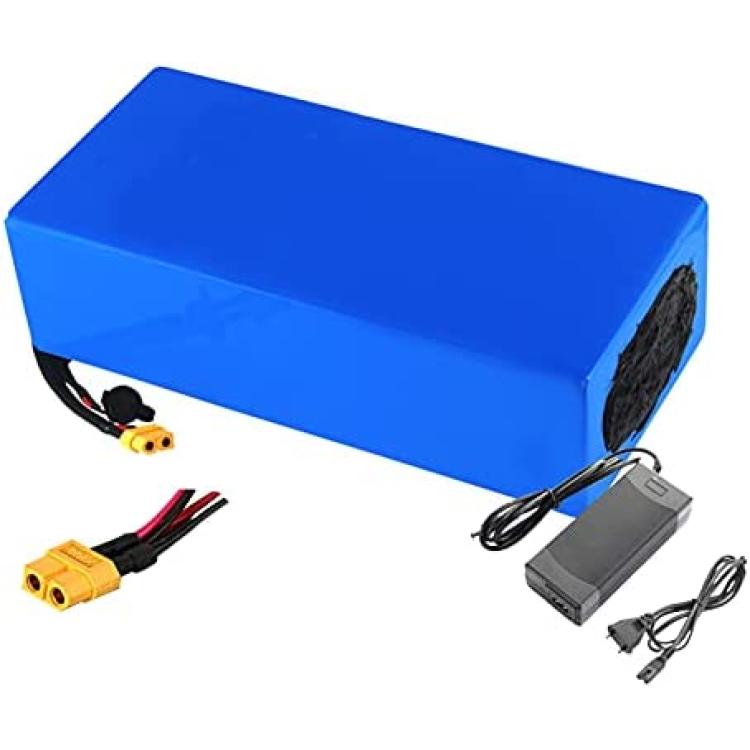

Jieoto 48V 12AH 15AH 20Ah 24AH 30AH Lithium Battery Pack Electric Bike Battery with 2A Charger Suitable for 200W 250W 350W 500W 750W 800W 1000W Electric Bicycle Scooters Motors
Description
Safety Precaution:
1.Do not throw battery into water or make it wet
2.Keep the battery away from heat source
3.Do not throw the battery into fire or heat the battery
4.Forbid to hammer to trample the battery
5.Forbid disassembling the battery in anyway
Product Advantage:
Easy to carry, light weight, high capacity, high release platform, long working time, long life, safe and environmentally friendly.
Product Details:
Model: 48V E-Bike Battery

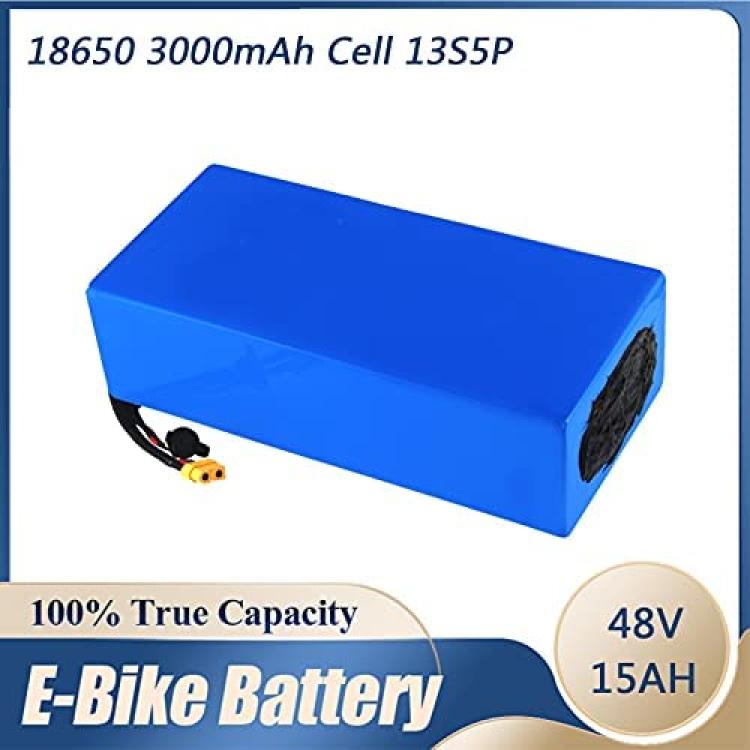

Cell: 18650 3000mAh
Category:Li-ion Battery
Voltage : Peak - 54.6V, working - 48V
Capacity:12Ah/15Ah/20Ah/25Ah/30Ah
Power: 150W 200W 250W 350W 500W 750W 800W 1000W
Cut-off voltage: 36.4V
Max. discharging current: 30amp
Max Continuous Discharging Amperage: 20Amps
Rated Discharging Amperage: 15 Amps
Charging Current: <5 Amps
Charging Voltage: 54.6Volts
12Ah Size/Weight: 250*76*70mm?2.6kg?

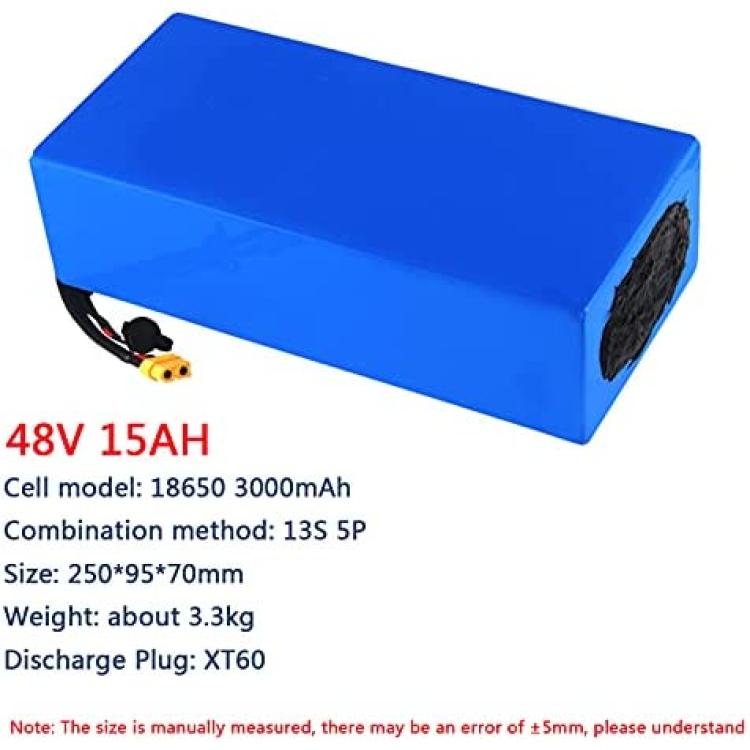

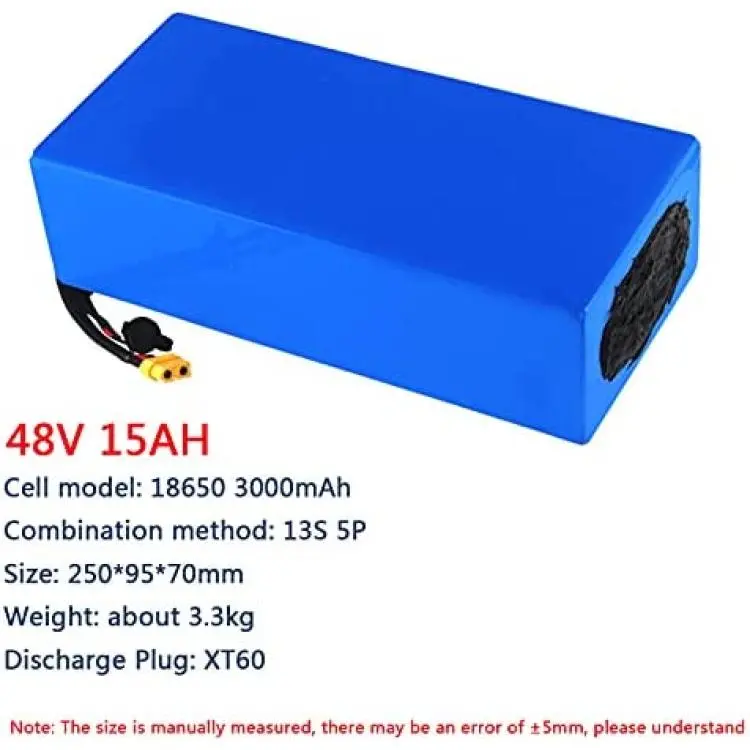

15Ah Size/Weight: 250*95*70mm?3.3kg?
20Ah Size/Weight: 250*130*70mm?4.6kg?
25Ah Size/Weight: 250*150*70mm?5.2kg?
30Ah Size/Weight: 250*190*70mm?6.5kg?
Charging temperature: 0~45°C
Discharge temperature: -20~60°C
Storage temperature: -20~65 °C
Protect battery temperature: 60°C plusmn 5°C
Discharge Plug: XT60
Package includes :
1* 48V Battery pack, with 20A BMS build-in.
1* Charger
